Core Function:
High-sensitivity eddy current sensor for precision displacement monitoring in critical rotating equipment.

Key Specifications:
• Sensitivity: 10.0 mV/µm (±5%)
• Measurement Range: 0-1.0mm (1000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Robust Design:
✓ 11mm heavy-duty probe
✓ M14×1.5 threaded mounting
✓ -40°C to +120°C operation
✓ 20g vibration resistance
✓ 4MPa pressure rating

Measurement Performance:

Target: AISI 4140 steel

Linear range: 60% of full scale

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Typical Applications:

Turbine shaft vibration monitoring

Compressor thrust position measurement

Precision bearing clearance monitoring

Special Features:

/207 variant optimized for high-sensitivity applications

Enhanced signal resolution for critical measurements

Industrial-grade durability

Compliance:
Meets API 670 machinery protection standards

Core Function:
Heavy-duty eddy current sensor for extreme-condition displacement monitoring in critical rotating equipment.

Key Specifications:
• Sensitivity: 8.0 mV/µm (±5%)
• Measurement Range: 0-2.0mm (2000µm)
• Frequency Response: DC to 10kHz
• Extended Temp Range: -40°C to +175°C (peak 200°C)

Robust Construction:
✓ 11mm ruggedized probe
✓ M14×1.5 threaded mounting
✓ 6MPa pressure rating
✓ 25g vibration resistance
✓ Mineral-insulated high-temp cable

Measurement Performance:

Target: AISI 4140 steel

Linear range: 60% of full scale

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• Hazardous area options (ATEX)
• API 670 compliant

Typical Applications:

High-pressure steam turbine monitoring

Offshore gas compressor protection

Extreme-environment machinery

Special Notes:

/303 designation indicates enhanced environmental capability

Requires high-temperature installation procedures

Not for use with standard extension cables

Core Function:
Heavy-duty eddy current displacement sensor for critical machinery protection applications.

Key Specifications:
• Sensitivity: 8.0 mV/µm (±5%)
• Measurement Range: 0-2.0mm (2000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Robust Mechanical Design:
✓ 11mm large-diameter probe
✓ M14×1.5 threaded mounting
✓ -40°C to +150°C operation (sensor head)
✓ 20g vibration resistance
✓ 4MPa pressure rating

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 60% of full scale

Typical accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Typical Applications:

Large steam/gas turbine monitoring

Heavy compressor thrust measurement

Critical rotating equipment protection

Special Features:

Enhanced durability for harsh environments

Large probe design for stable measurements

Extended temperature capability

Compliance:
Meets API 670 machinery protection standards

Core Function:
Industrial IEPE accelerometer for machinery vibration monitoring in predictive maintenance systems.

Key Specifications:
• Sensitivity: 10 mV/g (±5%)
• Range: ±50g peak
• Frequency Response: 0.5Hz-5kHz (±10%)
• Resonant Frequency: >25kHz

Robust Construction:
✓ Stainless steel 316L housing
✓ M6 threaded mounting
✓ IP67 environmental protection
✓ -40°C to +120°C operation

Electrical Characteristics:

IEPE output (2-20mA constant current)

18-30V DC excitation required

5m integral cable (standard)

Measurement Features:

Low-noise signal output

500g shock resistance

<5% transverse sensitivity

Typical Applications:

Rotating equipment bearing monitoring

Gearbox vibration analysis

Compressor/fan mechanical health assessment

Compliance:

ISO 10816 vibration standards

API 670 machinery protection

Core Function:
High-temperature eddy current sensor designed for extreme environment displacement and vibration monitoring in critical rotating machinery.

Key Specifications:
• Sensitivity: 10.1 mV/µm (±5%)
• Measurement Range: 0-1.0mm (1000µm)
• Frequency Response: DC to 10kHz
• Temperature Range:

Sensor head: -40°C to +200°C (peak 250°C)

Cable: -40°C to +105°C

Robust Design Features:
✓ 8mm high-temperature probe
✓ M10×1 threaded mounting
✓ Mineral-insulated cable (5m standard)
✓ 20g vibration resistance
✓ 4MPa pressure rating

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 60% of full scale

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• High-temperature cable option
• API 670 compliant

Typical Applications:

Gas turbine blade clearance monitoring

Steam turbine shaft vibration (hot sections)

Nuclear/power plant critical equipment

Core Function:
Industrial piezoelectric accelerometer for machinery vibration monitoring, designed for predictive maintenance and condition-based monitoring systems.

Key Specifications:
• Sensitivity: 10 mV/g (±5%)
• Measurement Range: ±50 g peak
• Frequency Response: 0.5Hz-5kHz (±10%)
• Output Type: Voltage mode (requires 18-30V DC excitation)

Robust Design:
✓ Stainless steel housing (IP67 protection)
✓ M6 threaded mounting
✓ -40°C to +120°C operation
✓ 500g shock resistance

Measurement Performance:

Resonant frequency: >25kHz

Transverse sensitivity: <5%

Broad frequency range for mechanical fault detection

System Integration:
• Compatible with EPRO MMS6000 monitoring systems
• Standard 5m integral cable
• Requires signal conditioner (e.g., CON051) for 4-20mA conversion

Typical Applications:

Motor and pump bearing monitoring

Gearbox vibration analysis

Compressor blade condition assessment

Industrial fan monitoring

Compliance:
Meets ISO 10816 and API 670 standards

Special Features:

Hermetically sealed for harsh environments

Low-noise output for precise measurement

Wide temperature operation range

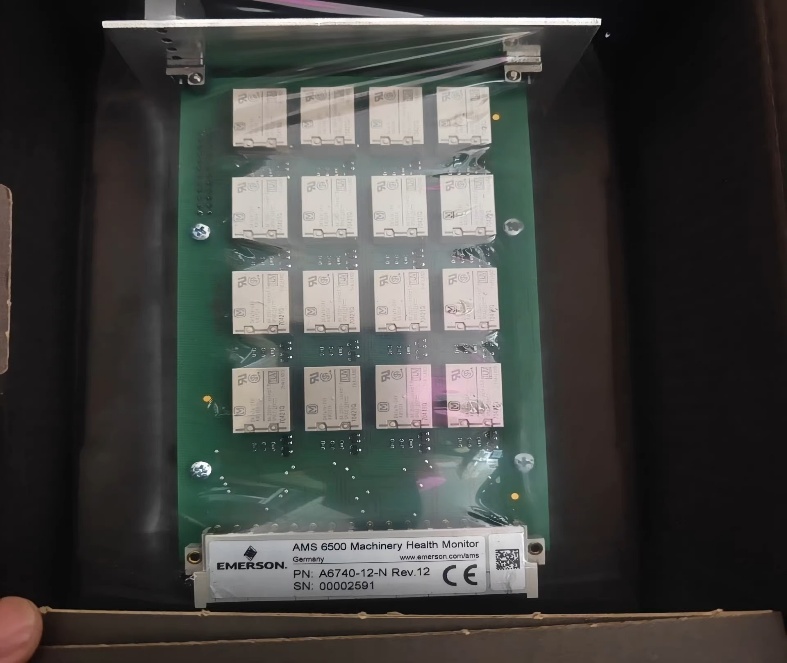

Core Function:
High-density 12-channel monitoring system for comprehensive machinery protection in large industrial installations.

Key Specifications:
• Channels: 12 fully configurable inputs
• Measurement Capabilities:

Vibration: 0-500 µm pk-pk

Displacement: 0-2.0 mm

Speed: 0-20,000 RPM
• Sampling Rate: 1kHz per channel
• Accuracy: ±1% FS

System Architecture:
✓ 12x isolated 4-20mA outputs
✓ 24 programmable alarm relays (SPDT)
✓ Dual communication ports:

RS-485 Modbus RTU

Ethernet (standard)

Optional Profibus-DP

Physical Specifications:

Power Supply: 100-240V AC or 24V DC

Operating Temp: -20°C to +70°C

Enclosure: IP20 rack-mount design

Dimensions: Standard 19" rack width

Advanced Features:

Individual channel configuration

Redundant power supply option

CMS 2000 software compatible

Real-time multi-channel LCD display

Typical Applications:

Power plant turbine supervisory systems

Multi-unit compressor stations

Large generator protection

Plant-wide condition monitoring

Compliance:
Meets API 670 and ISO 10816 standards
CE and UL certified

Special Notes:

"-N" suffix indicates standard industrial version

Supports hot-swappable module replacement

Ideal for centralized monitoring solutions

Core Function:
Industrial eddy current sensor for extended-range displacement monitoring in heavy rotating equipment

Key Specifications:
• Sensitivity: 3.1 mV/µm (±5%)
• Extended Range: 0-3.1mm (3100µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Mechanical Configuration:
✓ 8mm diameter probe
✓ M10×1 threaded mounting
✓ Operating temperature: -30°C to +120°C
✓ Vibration resistant to 20g

Measurement Performance:

Target material: AISI 4140 steel

Linear operating range: 60% of full scale

Typical accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 monitoring systems
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Special Features:

Extended 3.1mm measurement range

Special /005 variant with enhanced environmental tolerance

Optimized for heavy industrial applications

Typical Applications:

Large turbine shaft monitoring

Compressor thrust bearing measurement

Heavy machinery protection systems

Compliance: Meets API 670 machinery protection standards

Core Function:
Ruggedized dual-channel monitoring system designed for extreme industrial environments, measuring:
✓ Vibration (velocity/displacement)
✓ Shaft position
✓ Rotational speed

Key Specifications:
• Input Channels: 2 fully independent
• Measurement Ranges:

Vibration: 0-500 µm pk-pk

Displacement: 0-2.0 mm

Speed: 0-20,000 RPM
• Sampling Rate: 1kHz per channel

Ruggedized Design:
✓ IP66 rated enclosure
✓ -40°C to +85°C operation
✓ 5g vibration resistance (10-500Hz)
✓ ATEX/IECEx certified options

Output & Communication:

2x isolated 4-20mA outputs

4x alarm relays (SPDT)

RS-485 Modbus + Ethernet option

Typical Applications:

Offshore oil & gas platforms

Mining and heavy machinery

Mobile equipment monitoring

Hazardous area installations

Configuration:
Intuitive LCD interface or CMS 2000 software

Compliance:
API 670, ISO 10816 standards

Special Features:

Dual-channel redundancy

Extended temperature operation

Corrosion-resistant housing

Core Function:
Industrial eddy current sensor for wide-range displacement monitoring in heavy rotating equipment

Key Specifications:
• Sensitivity: 3.0 mV/µm (±5%)
• Extended Range: 0-3.0mm (3000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Mechanical Configuration:
✓ 8mm diameter probe
✓ M10×1 threaded mounting
✓ Operating temperature: -30°C to +120°C
✓ Vibration resistant to 20g

Measurement Performance:

Target material: AISI 4140 steel

Linear operating range: 60% of full scale

Typical accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 monitoring systems
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Typical Applications:

Large turbine shaft monitoring

Compressor thrust bearing measurement

Heavy industrial machinery protection

Special Features:

Optimized for wide displacement range applications

Special variant (/002) with enhanced environmental tolerance

Compliance: Meets API 670 machinery protection standards
