Key Parameters Item Parameter / Description Valve Type Proportional directional control valve Actuation Solenoid-operated proportional spool Valve Size / Interface ISO / NG40 standard mounting interface Maximum Operating Pressure (P, A, B ports) 350 bar (≈ 5075 psi) Tank Port (T) Pressure Rating 100 bar (≈ 1450 psi) Maximum Flow Rate Up to 200 L/min (≈ 53 US gpm) Seal Material Viton (standard) Spool Type Direct-acting proportional spool Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 18/16/13 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Electrical Connector Standard ISO 4400 / DIN 43650

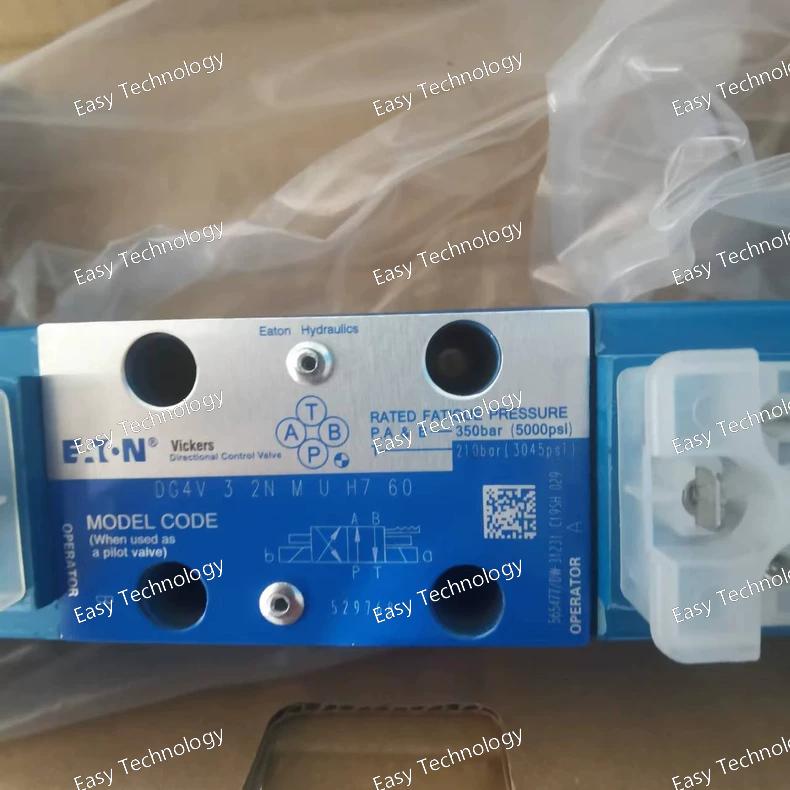

Key Parameters Item Parameter / Description Actuation Type Solenoid operated (single-stage) Coil Voltage 24 V DC (standard) Valve Size / Interface ISO 4401‑03 / NFPA D03 / CETOP 3 (NG6) Maximum Operating Pressure (P, A, B ports) 350 bar (≈ 5075 psi) Tank Port (T) Pressure Rating 210 bar (≈ 3045 psi) Maximum Flow Rate Up to 80 L/min (≈ 21 US gpm) Seal Material Viton (standard) Spool Type Spool “0C” Spring Arrangement Spring-centered spool Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 19/17/14 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Power Consumption (Coil) 30 W

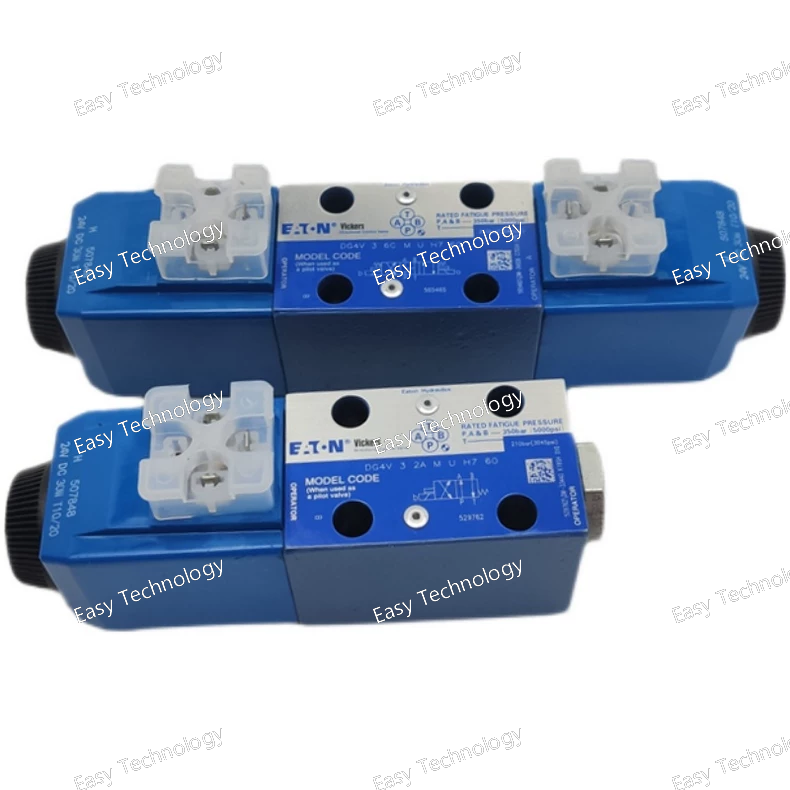

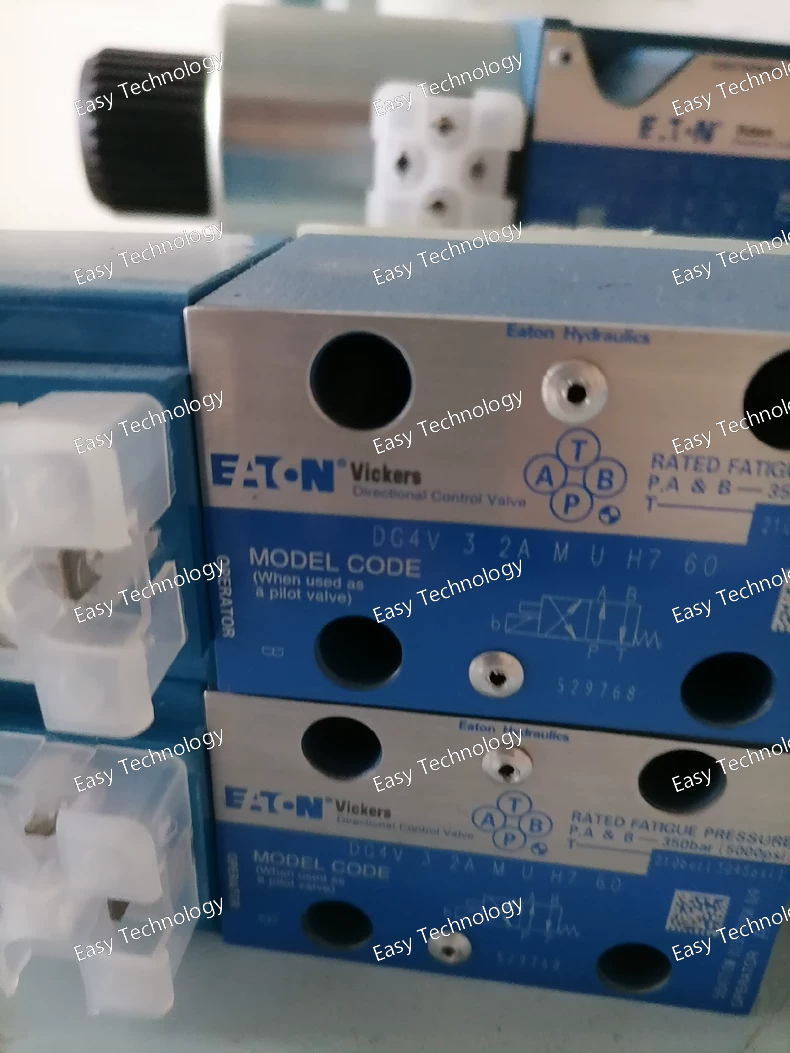

Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Type Proportional Directional Control Valve 4-way, 3-position Porting Size NG03 (CETOP 3 / NFPA D01) Standard subplate interface Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 19 L/min (5 US gpm) Dependent on spool and pressure drop Spool Type 2A (B-spool with deadband) Industrial spool for actuator control Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector Integrated Electronics H7 On-board amplifier card Input Signal ±10 VDC or 4-20 mA Selectable via internal dip-switches Supply Voltage (to amplifier) 12-30 VDC For the H7 amplifier Coil Voltage Derived from internal amplifier Typically 12-24 VDC pulsed IP Rating IP65 (with connector properly installed) Dust-tight and protected against water jets Hydraulic Fluid Mineral-based hydraulic oil to ISO 11158 Fluid Viscosity Range 10 to 400 cSt (50 to 2000 SUS) Operating Temperature Range -20°C to +70°C (-4°F to +158°F)

Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Valve Type Single-Stage Proportional Directional Valve 4-way, 3-position Porting Size NG05 (CETOP 5 / NFPA D02) Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 40 - 60 L/min (10.5 - 16 US gpm) Note: Actual flow depends on spool and pressure drop. Spool Type 22AJ "22" typically denotes a high-performance spool series with LVDT, and "AJ" is the specific spool metering characteristic. Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design. Feedback Type Integrated LVDT The spool has a built-in LVDT for closed-loop position control. (This is implied by the "22" series and the H6 amplifier). Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector. Integrated Electronics H6 On-board amplifier card designed for LVDT feedback valves. Input Signal ±10 VDC or 4-20 mA Selectable via internal dip-switches. Supply Voltage (to amplifier) 12-30 VDC For the H6 amplifier. IP Rating IP65 (with connector properly installed) Dust-tight and protected against water jets. Hydraulic Fluid Mineral-based hydraulic oil to ISO 11158 Fluid Viscosity Range 10 to 400 cSt (50 to 2000 SUS) Operating Temperature Range -20°C to +70°C (-4°F to +158°F)

Parameter Description / Value Notes / Explanation Product Line Eaton DARV Pilot-operated pressure reducing valve series. Port Size W (M22x1.5 / SAE 3/4") This is a threaded port size. Valve Size 20 Nominal size 20, corresponding to a specific flow capacity. Pressure Adjustment Range 10 - 50 bar (145 - 725 psi) The secondary pressure can be set anywhere within this range. Maximum Inlet Pressure (P1) 315 bar (4,570 psi) The maximum pressure allowed at the primary/inlet port. Maximum Flow Rate Approx. 150 L/min (40 US gpm) Note: Actual performance depends on pressure conditions. Consult the performance curve in the datasheet for exact values. Drain Connection (Y) Internal Drain The pilot control oil is drained internally back to the tank port (T). This simplifies piping. Seal Material K (Standard Nitrile Rubber / NBR) Compatible with standard mineral-based hydraulic oils. Mounting In-line threaded connection Weight Approx. 2.5 kg (5.5 lbs)

Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Type Proportional Directional Control Valve 4-way, 3-position, Single-Stage Porting Size NG05 (CETOP 5 / NFPA D02) Standard subplate interface Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 40 - 60 L/min (10.5 - 16 US gpm) *Dependent on spool and pressure drop (e.g., Δp = 10 bar).* Spool Type 6CJ "6" denotes a high-performance spool series with LVDT feedback. "CJ" indicates the specific spool metering characteristic (e.g., linear or modified linear). Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design Feedback Type Integrated LVDT The spool has a built-in LVDT for closed-loop position control. (This is implied by the "6" series and the H6 amplifier). Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector Integrated Electronics H6 On-board amplifier card designed for LVDT feedback valves. Input Signal ±10 VDC or 4-20 mA Selectable via internal dip-switches Supply Voltage (to amplifier) 12-30 VDC For the H6 amplifier IP Rating IP65 (with connector properly installed) Dust-tight and protected against water jets Hydraulic Fluid Mineral-based hydraulic oil to ISO 11158 Fluid Viscosity Range 10 to 400 cSt (50 to 2000 SUS) Operating Temperature Range -20°C to +70°C (-4°F to +158°F)

Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Type Proportional Directional Control Valve 4-way, 3-position, Single-Stage Porting Size NG05 (CETOP 5 / NFPA D02) Standard subplate interface Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 40 - 60 L/min (10.5 - 16 US gpm) *Dependent on spool and pressure drop (e.g., Δp = 10 bar).* Spool Type 2CJ "2" denotes a specific high-performance spool series with LVDT feedback. "CJ" indicates a linear or modified linear flow characteristic. Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design Feedback Type Integrated LVDT The spool has a built-in LVDT for closed-loop position control. Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector Integrated Electronics H6 On-board amplifier card designed for LVDT feedback valves. Input Signal ±10 VDC or 4-20 mA Selectable via internal dip-switches Supply Voltage (to amplifier) 12-30 VDC For the H6 amplifier IP Rating IP65 (with connector properly installed) Dust-tight and protected against water jets Hydraulic Fluid Mineral-based hydraulic oil to ISO 11158 Fluid Viscosity Range 10 to 400 cSt (50 to 2000 SUS) Operating Temperature Range -20°C to +70°C (-4°F to +158°F)

Key Parameters Item Parameter / Description Valve Type Proportional directional control valve Actuation Solenoid-operated proportional spool Valve Size / Interface ISO 4401‑05 / NFPA D05 / CETOP 5 (NG10) Maximum Operating Pressure (P, A, B ports) 315 bar (≈ 4565 psi) Tank Port (T) Pressure Rating 210 bar (≈ 3045 psi) Maximum Flow Rate Up to 120 L/min (≈ 31.7 US gpm) Seal Material Viton (standard) Spool Type ABM-type proportional spool Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 19/17/14 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Electrical Connector Standard ISO 4400 / DIN 43650 Coil Power 35 W

Key Parameters Item Parameter / Description Valve Type Proportional directional control valve Actuation Solenoid-operated proportional spool Valve Size / Interface ISO 4401‑05 / NFPA D05 / CETOP 5 (NG10) Maximum Operating Pressure (P, A, B ports) 315 bar (≈ 4565 psi) Tank Port (T) Pressure Rating 210 bar (≈ 3045 psi) Maximum Flow Rate Up to 120 L/min (≈ 31.7 US gpm) Seal Material Viton (standard) Spool Type PP-type proportional spool Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 19/17/14 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Electrical Connector Standard ISO 4400 / DIN 43650 Coil Power 35 W

Parameter Description / Value Notes Product Line Eaton DG5V Manual Directional Control Valve Series Valve Size 8 Nominal size 08, corresponding to a specific flow capacity. Actuator Type H (Spring Centered with Detents) Specifies the combination of springs and detent mechanisms for spool positioning. Spool Configuration OAL (4-Position, Complex Pattern) Positions: 1. Left Shift, 2. Spring-Centered, 3. Right Shift, 4. Detented (Float/Parallel). See below for details. Spool Type E This refers to the internal spool design and metering characteristics, often a standard industrial type. Porting Style U (Subplate Mounted) Mounts to ISO 4401-08-... or NFPA D08 interface. Main Seal Material H (Standard Nitrile Rubber / NBR) Compatible with standard mineral-based hydraulic oils. Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 75 - 110 L/min (20 - 29 US gpm) Dependent on spool and pressure drop. Manual Lever Force Typically < 60 N (13.5 lbf) Force required to shift the spool.
