eaton

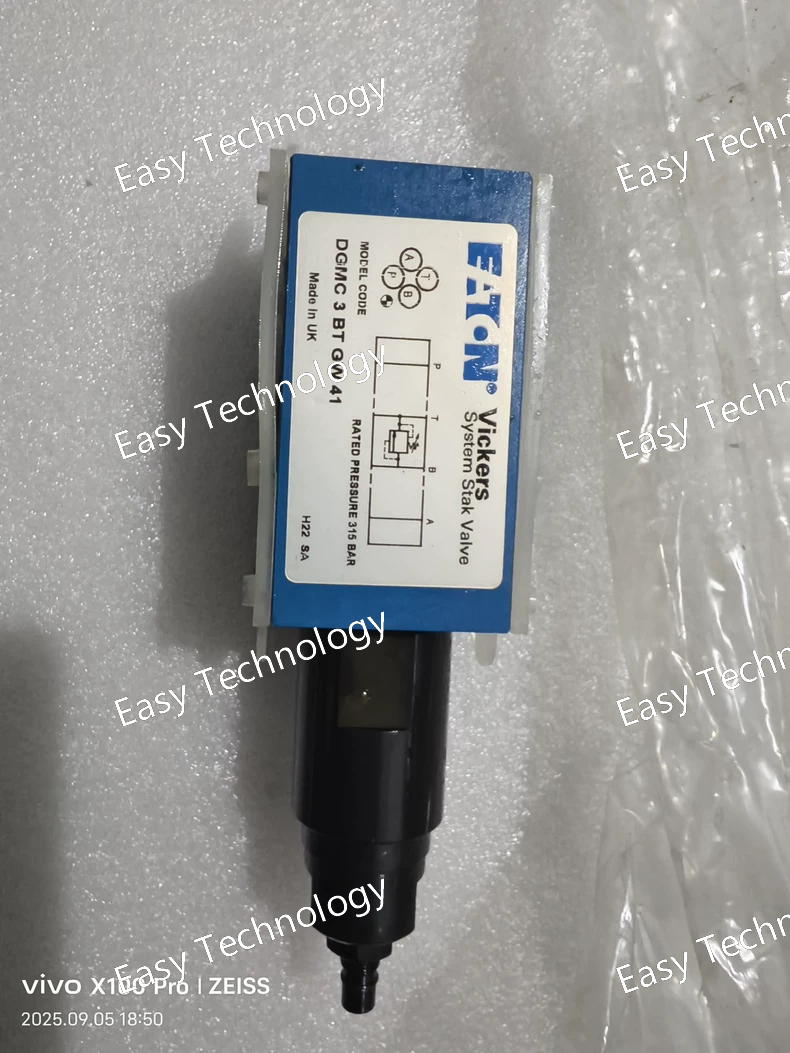

DGMC 3 BT GW 41

Parameter Specification Manufacturer Eaton Model Number DGMC-3-BT-GW-41 Product Line Axiom Series Product Type 3/2 Way Solenoid Valve, Single Solenoid, Spring Return Ports 3 (Inlet, Outlet, Exhaust) Positions 2 Actuation Type Single Solenoid, Spring Return Voltage 110V AC (as indicated by the "-41" suffix) Enclosure Rating NEMA 4X / IP65 (Dust-tight, waterjet resistant, and corrosion-resistant) Port Type Tube Fitting (Inline) Port Thread Standard BSPT (R') Port Size 1/4" BSPT (This is strongly implied by the "-BT" code) Operating Pressure Range Typical for this type: 30 to 120 PSI (Consult the official datasheet for exact values) Media Compressed Air (Lubricated or Non-Lubricated) Body Material Engineering Plastic / Polymer Seal Material Buna-N (Nitrile) - Standard Coil Connection Integral Pigtail Cable (Common for this style) Mounting Pipe-mounted via its inline ports

More details >> Request a Quote >>

eaton

300AA00101A

Parameter Specification Manufacturer Eaton Model Number 300AA00101A Product Line xEnergy Series Product Type Air Circuit Breaker (ACB) Mounting Type Fixed Number of Poles 3 Rated Current 100A (This is indicated by the "00101" code, where "101" often corresponds to 100A. Always verify on the breaker label.) Frame Size 300A (The "300" frame) Rated Operating Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Rated Frequency 50/60 Hz Breaking Capacity High (e.g., 42kA, 65kA, 100kA at specific voltages). The exact Icu/Ics values depend on the specific trip unit and application voltage. Trip Unit Micrologic Solid-State Trip Unit (Provides protection functions like Long-Time, Short-Time, Instantaneous, and Ground Fault). Operation Manual Storage Spring Mechanism (Charge-Handle-Close sequence) Standards IEC 60947-2

More details >> Request a Quote >>

eaton

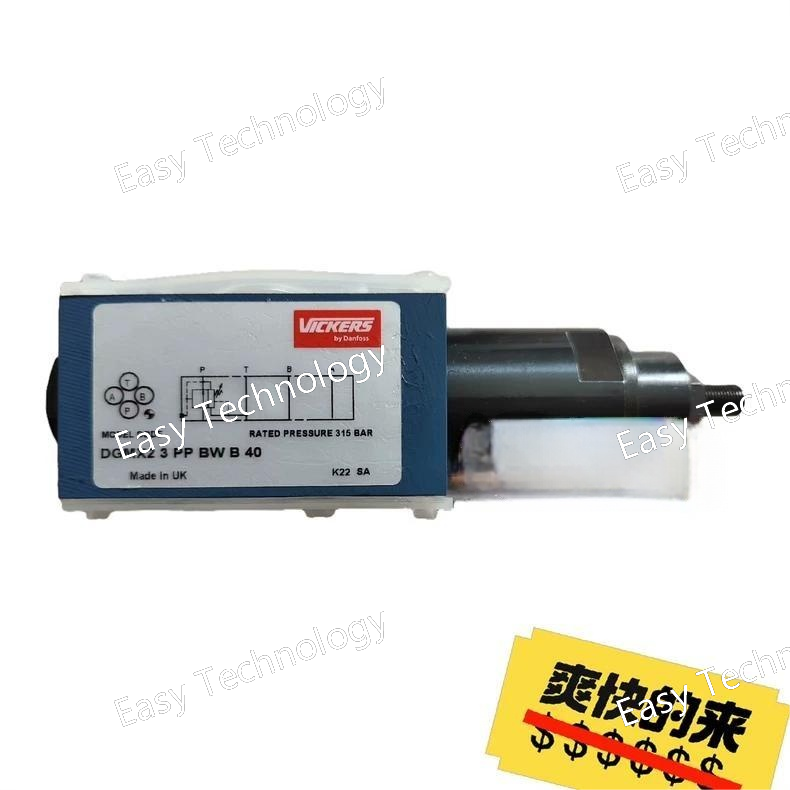

DGMX2 3 PP BW B 40

Parameter Specification Manufacturer Eaton Model Number DGMX2-3-PP-BW-B-40 Product Line Axiom MX2 Series Product Type 3/2 Way Solenoid Valve, Single Solenoid, Spring Return Ports 3 (Inlet, Outlet, Exhaust) Positions 2 Actuation Type Single Solenoid, Spring Return Operator Single Solenoid Voltage 24V AC (as indicated by the "-40" suffix) Enclosure Rating NEMA 4X / IP67 (Watertight, dust-tight, and corrosion-resistant) Port Type Manifold Mount (Sub-base) Port Size Typically M5 or according to the manifold base (The "-PP" often refers to porting for a specific manifold system) Operating Pressure Range Typical for this series: 0.5 to 8 bar (~7 to 116 PSI) (Consult official datasheet for exact values) Media Compressed Air (Lubricated or Non-Lubricated) Body Material Engineering Plastic / Polymer Seal Material Buna-N (Nitrile) - Standard Coil Connection Manifold Plug (Integrated into the coil, plugs directly into the manifold base) Mounting Snap-on mounting to a dedicated manifold base

More details >> Request a Quote >>

eaton

DGMC-3-PT-GW-B-41

Parameter Specification Manufacturer Eaton Model Number DGMC-3-PT-GW-B-41 Product Line Axiom Series Product Type 3/2 Way Solenoid Valve, Single Solenoid, Spring Return Ports 3 (Inlet, Outlet, Exhaust) Positions 2 Actuation Type Single Solenoid, Spring Return Voltage 110V AC (as indicated by the "-41" suffix) Enclosure Rating NEMA 4X / IP65 (Dust-tight, waterjet resistant, and corrosion-resistant) Port Type Tube Fitting (Inline) Port Size 1/4" (This is strongly implied by the "-PT" code, where 'T' is a common designation for 1/4 inch) Operating Pressure Range Typical for this type: 30 to 120 PSI (Consult the official datasheet for exact values) Media Compressed Air (Lubricated or Non-Lubricated) Body Material Engineering Plastic / Polymer Seal Material Buna-N (Nitrile) - Standard Coil Connection Integral Pigtail Cable (Common for this style) Mounting Pipe-mounted via its inline ports

More details >> Request a Quote >>

eaton

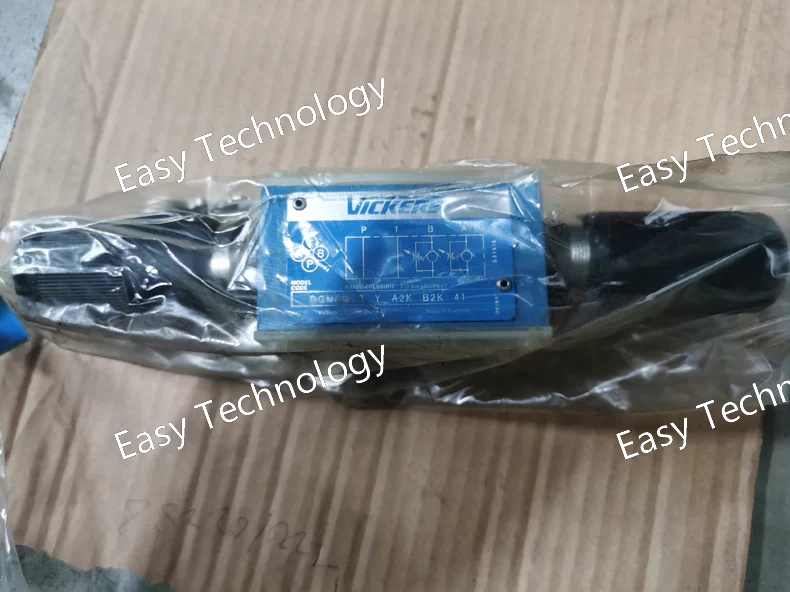

DGMFN-3-Y-A2K-B2K-41

Parameter Specification Manufacturer Eaton (Axiom Series) Model Number DGMFN-3-Y-A2K-B2K-41 Product Type 3/2 Solenoid Operated Directional Control Valve Ports 3 (Inlet, Outlet, Exhaust) Positions 2 (3/2 Way) Actuation Type Double Solenoid (Dual Coil), Springless Operator Double Solenoid Voltage 110V AC (as indicated by the "-41" suffix) Hazardous Location Rating UL Listed for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III. Enclosure Rating NEMA 4X (Weatherproof & Corrosion-Resistant) / IP67 (Dust-tight and Immersion resistant) Conduit Connection Two 1/2" NPT Conduit Hubs (Standard for explosion-proof enclosures) Port Size 1/4" NPT (Common for this series, but verify with datasheet) Operating Pressure Range Typical for this type: 30 to 120 PSI (Please consult the official datasheet for exact values) Media Compressed Air (Lubricated or Non-Lubricated) Body Material Die-cast Zinc (with corrosion-resistant coating) Seal Material Buna-N (Nitrile) - Standard Coil Class Class F (155°C)

More details >> Request a Quote >>

eaton

SV1-10-4-00

Parameter Specification Manufacturer Eaton Model Number SV1-10-4-00 Product Line SV1 Safety Switches Rated Current 30 Amps Rated Voltage (AC) 240V AC / 480V AC Electrical Poles 3-Pole (3-Phase) Type Non-Fusible (Safety Switch Disconnect) HP Rating 5 HP @ 240V AC; 10 HP @ 480V AC (Typical for this rating, confirm with datasheet) Enclosure Requirement Designed to be mounted in a suitable enclosure (NEMA 1, 3R, 12, etc.) Operation Manual Rotary Handle Status Indication Visible Blade (ON/OFF visible) Safety Standards UL 98, CSA C22.2 Common Applications Industrial control panels, motor disconnects, HVAC systems, machinery power isolation.

More details >> Request a Quote >>

eaton

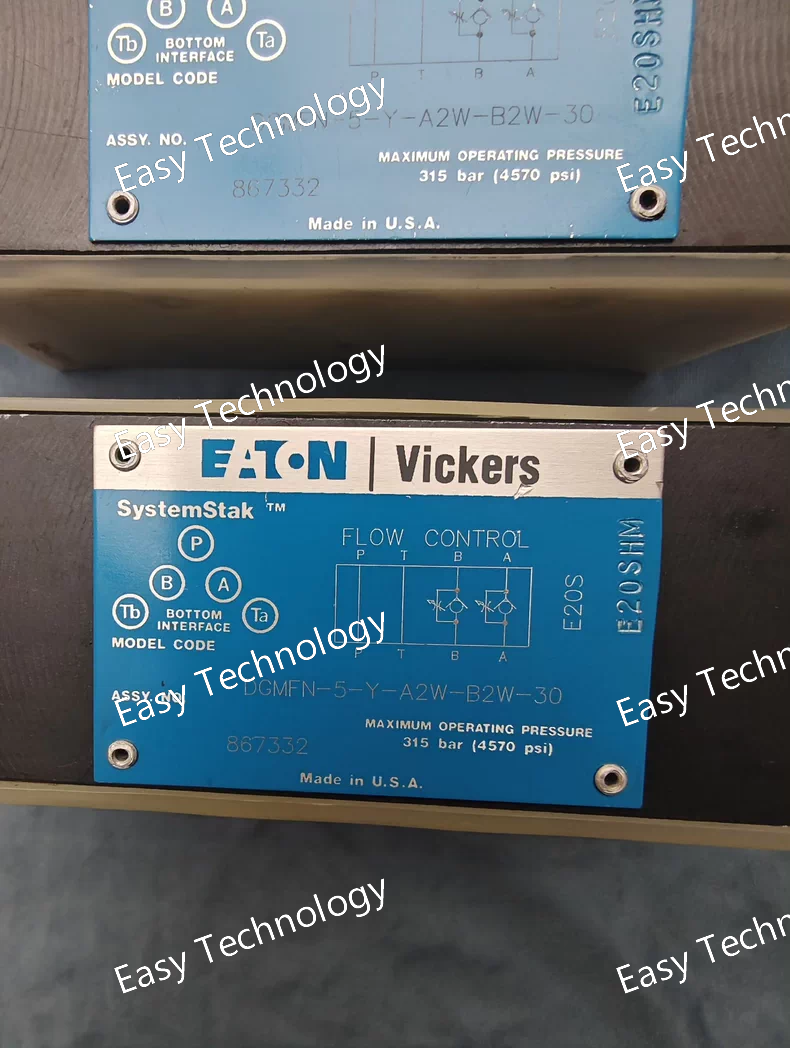

DGMFN-5-Y-A2W-B2W-30

Parameter Specification Manufacturer Eaton (Axiom Series) Model Number DGMFN-5-Y-A2W-B2W-30 Product Type 5/2 Solenoid Operated Directional Control Valve Ports 5 Positions 2 (5/2 Way) Actuation Type Single Solenoid, Spring Return Operator Single Solenoid Voltage 24V DC (as indicated by the "-30" suffix) Hazardous Location Rating UL Listed for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III. Enclosure Rating NEMA 4X (Weatherproof & Corrosion-Resistant) / IP67 (Dust-tight and Immersion resistant up to 1m) Port Size 1/4" NPT (Common for this series, but verify with datasheet) Operating Pressure Range Typical for this type: 30 to 120 PSI (Please consult the official datasheet for exact values) Media Compressed Air (Lubricated or Non-Lubricated) Body Material Die-cast Zinc (with corrosion-resistant coating) Seal Material Buna-N (Nitrile) - Standard Coil Class Class F (155°C) Conduit Hubs Two 1/2" NPT (Standard for explosion-proof enclosures)

More details >> Request a Quote >>

eaton

6041615-001

Parameter Specification Manufacturer Eaton Model Number 6041615-001 Product Name Maintenance Bypass Switch Assembly Compatible UPS Series Eaton 93PM, 9PX Rated Current 30 A Rated Voltage 250 VAC Electrical Poles 3-Pole (L1, L2, L3, N, G) Switch Type Rotary Cam Switch Switch Positions LINE - BYPASS - OFF Wiring Hardwired (pre-assembled terminal block) Safety Standards UL, cUL Listed Primary Function To safely bypass the UPS for maintenance without dropping the critical load. Typical Use Case Service, repair, or replacement of the connected UPS while keeping the downstream equipment powered.

More details >> Request a Quote >>

eaton

DGMDC 3 Y PK 41

Parameter Value / Description Product Name Eaton DGMDC 3 Y PK 41 Type / Class Type 2 (Class II) Surge Protective Device (SPD) Rated Voltage 400 V / 230 V AC Nominal System Voltage 230/400 V AC Network Configuration 3-Phase + N (Neutral) + PE (Earth) SPD Circuit Configuration 3+1 Max. Continuous Operating Voltage Uc 335 V L-N / 335 V L-L Voltage Protection Level Up (at In) ≤ 1.5 kV Nominal Discharge Current In (8/20 µs) 20 kA per mode Max. Discharge Current Imax (8/20 µs) 40 kA per mode Impulse Current Iimp (10/350 µs) Not typically specified for Type 2; this is a Type 1 parameter. Short-Circuit Current Rating (SCCR) 50 kA (according to UL 1449 4th Ed.) Backup Fuse Recommendation 160 A gG / gL (or according to local regulations) Response Time < 25 ns Status Indication Visual (Green/Red window) Remote Signaling Contact Yes, typically 1 changeover (CO) contact (e.g., for connection to a building management system) Connection / Cross-Section 35 mm² flexible cable or 25 mm² solid cable Mounting Plug-in module on 35 mm DIN rail Standards Compliance IEC 61643-11, EN 61643-11, UL 1449 (4th Edition) IP Protection Degree IP20 Operating Temperature -40 °C to +80 °C Module Replacement Yes, with removable cartridge (PK 41)

More details >> Request a Quote >>

eaton

C-175-F-11-JA-J

Parameter Value / Description Product Name Eaton C-175-F-11-JA-J Product Line Eaton M22-D Series Type Illuminated Push Button (Momentary Action) Lens Color Green Contact Configuration 1 Normally Open (NO) Contact Mounting Diameter 22 mm Voltage Rating (Light) Depending on the lamp/LED version. Requires cross-referencing the specific "F-11" actuator code. Common voltages are 24V, 110V, 230V AC/DC. Current Rating (Contacts) Typically 10 A at 250 V AC / 6 A at 400 V AC Electrical Life Typically > 1,000,000 mechanical operations (load-dependent) Mechanical Life Typically > 5,000,000 operations Degree of Protection Front side: IP66 (Dust-tight and protected against powerful water jets) Rear side (terminals): IP20 (Protected against touch by fingers) Connection Type Screw Clamp Terminals Material (Actuator) Thermoplastic (Polyamide) Operating Temperature -25 °C to +70 °C Standards Compliance IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

More details >> Request a Quote >>
