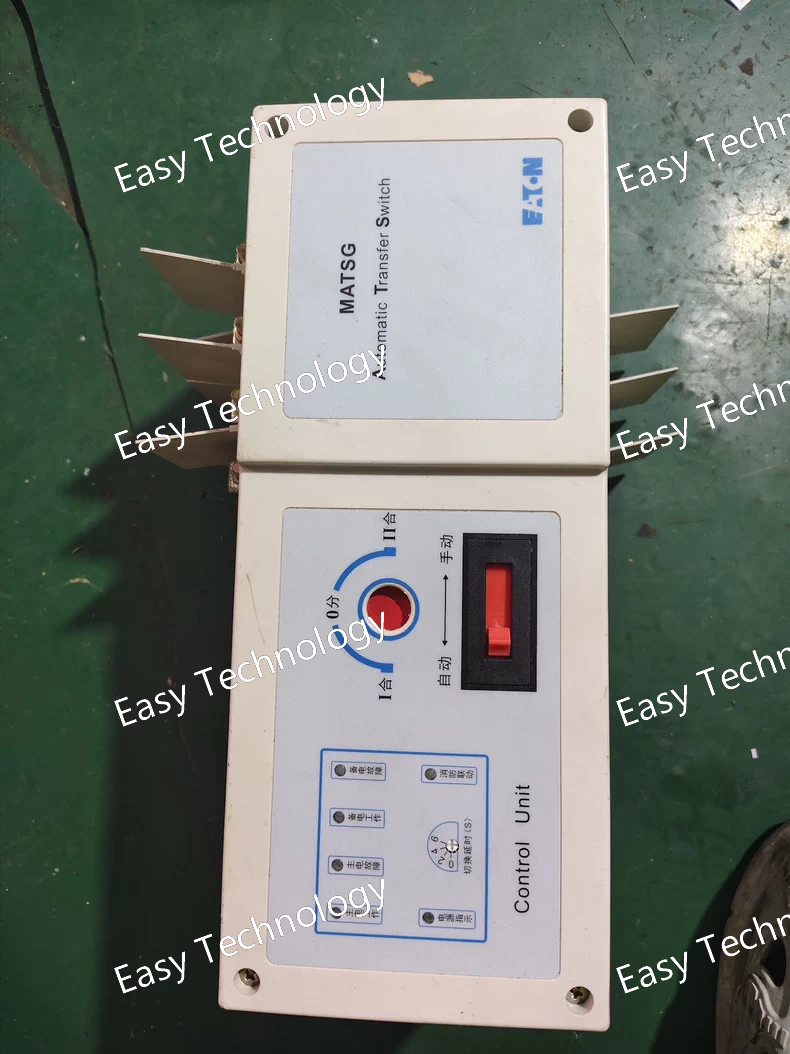

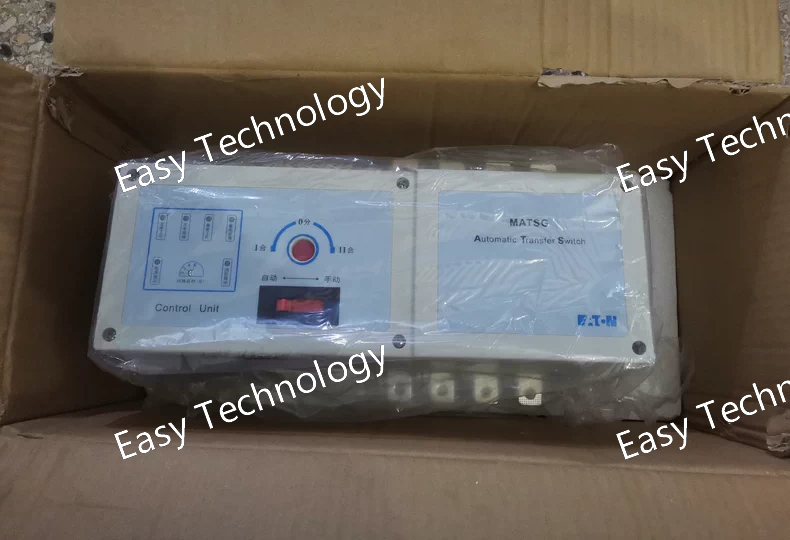

Technical Parameters Category Specification Product Model MATSG-200/4 Product Family Eaton MATSG Automatic Transfer Switch Series Rated Current 200A Number of Poles 4 Rated Operational Voltage 400V AC Rated Insulation Voltage 690V AC Rated Frequency 50/60 Hz Short-Time Withstand Current 10kA (1 second) Utilization Category AC-33A Mechanical Life 10,000 operations Electrical Life 1,000 operations at rated current Control Voltage 24V DC / 230V AC (depending on configuration) Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Relative Humidity 95% (non-condensing) Protection Degree IP20 (for enclosure mounting) Standards Compliance IEC 60947-6-1, CE

Technical Parameters Category Specification Product Model MATSG-63/4 Product Family Eaton MATSG Automatic Transfer Switch Series Rated Current 63A Number of Poles 4 Rated Operational Voltage 400V AC Rated Insulation Voltage 690V AC Rated Frequency 50/60 Hz Short-Time Withstand Current 6kA (1 second) Utilization Category AC-33A Mechanical Life 10,000 operations Electrical Life 1,000 operations at rated current Control Voltage 24V DC / 230V AC (depending on configuration) Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Relative Humidity 95% (non-condensing) Protection Degree IP20 (for enclosure mounting) Standards Compliance IEC 60947-6-1, CE

Technical Parameters Category Specification Product Model MATS G-250/4 Product Family Eaton MATS G Automatic Transfer Switch Series Rated Current 250A Number of Poles 4 Rated Operational Voltage 400V AC Rated Insulation Voltage 690V AC Rated Frequency 50/60 Hz Short-Time Withstand Current 15kA (1 second) Utilization Category AC-33A Mechanical Life 8,000 operations Electrical Life 800 operations at rated current Control Voltage 24V DC/230V AC (configurable) Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Relative Humidity 95% (non-condensing) Protection Degree IP20 (requires enclosure) Standards Compliance IEC 60947-6-1, CE

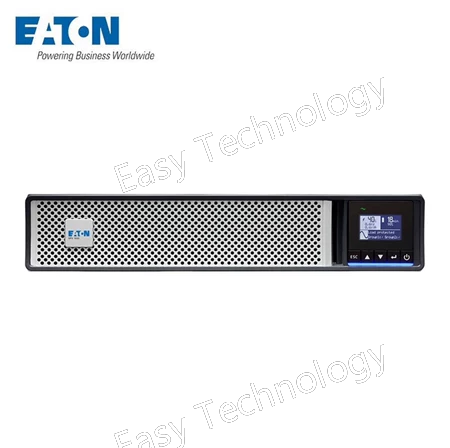

Technical Parameters Category Specification Product Model 5PX2200IRT2UG2 Product Family Eaton 5PX UPS Series Topology Double Conversion Online Rated Capacity 2200VA/2000W Input - Voltage 200-240V AC - Frequency 50/60 Hz (auto-sensing) - Input Connector IEC 320 C14 Output - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Output Connectors (8) IEC 320 C13 Battery - Type Sealed Lead-Acid (SLA) - Runtime Varies with load (typical 10-20 min at full load) - Recharge Time 3 hours to 90% capacity - Battery Module User-replaceable hot-swappable Physical Specifications - Form Factor 2U Rack-mount - Dimensions 88mm × 482mm × 660mm (H×W×D) - Weight 22.5 kg (with batteries) Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <45 dBA at 1 meter

Technical Parameters Category Specification Product Model 5PX2200IRT3UG2 Product Family Eaton 5PX Series UPS Topology Double Conversion Online Rated Capacity 2200VA/1980W Input Characteristics - Voltage Range 200-240V AC - Frequency Range 50/60 Hz (auto-sensing) - Power Factor >0.99 - Input Connection IEC 320 C14 Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (8) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) - Typical Runtime 5.5 min at full load (with internal batteries) - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 2U Rack-mountable - Dimensions 88 × 482 × 660 mm (H×W×D) - Weight 24.5 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <45 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model 5PX1000IRT2UG2 Product Family Eaton 5PX Series UPS Topology Double Conversion Online Rated Capacity 1000VA/900W Input Characteristics - Voltage Range 200-240V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection IEC 320 C14 Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (6) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) - Typical Runtime 5.5 min at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 2U Rack-mountable - Dimensions 88 × 482 × 660 mm (H×W×D) - Weight 19.5 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <45 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model 5PX1500IRT2UG2 Product Family Eaton 5PX Series UPS Topology Double Conversion Online Rated Capacity 1500VA/1350W Input Characteristics - Voltage Range 200-240V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection IEC 320 C14 Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (8) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) - Typical Runtime 5.5 min at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 2U Rack-mountable - Dimensions 88 × 482 × 660 mm (H×W×D) - Weight 22.5 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <45 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

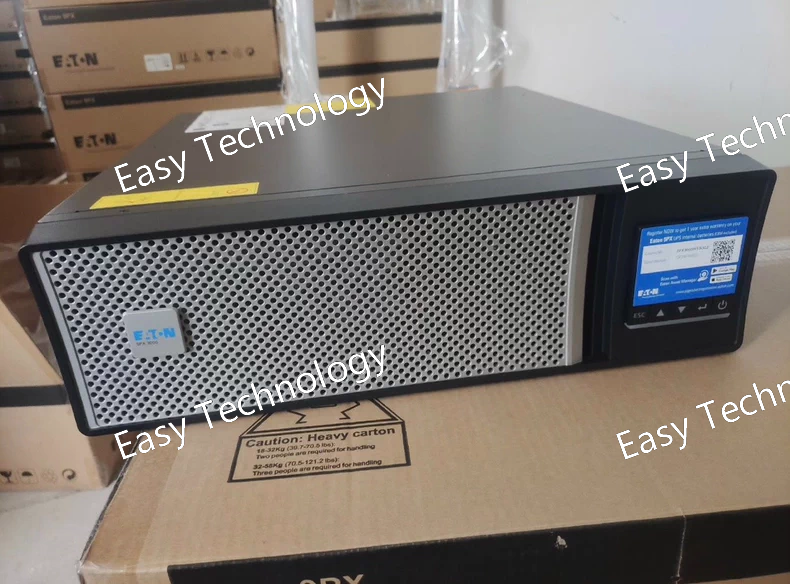

Technical Parameters Category Specification Product Model 5PX3000IRT3UG2 Product Family Eaton 5PX Series UPS Topology Double Conversion Online Rated Capacity 3000VA/2700W Input Characteristics - Voltage Range 200-240V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection Hardwired Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (12) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) - Typical Runtime 6.5 min at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 3U Rack-mountable - Dimensions 132 × 482 × 711 mm (H×W×D) - Weight 43 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <50 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model 9PXEBM240 Product Family Eaton 9PX Series Battery Modules Device Type External Battery Module Compatible UPS Models Eaton 9PX series UPS systems Battery Configuration 240V DC system Battery Type Sealed Lead-Acid (SLA) Typical Runtime Extension Varies based on UPS load (typically 1-4 hours) Battery Capacity Dependent on connected UPS model and configuration Charging Current Optimized for fast recharge capability Recharge Time 3-4 hours to 90% capacity (typical) Physical Specifications - Form Factor Tower/Floor-standing - Dimensions Varies by specific model configuration - Weight Dependent on battery capacity Environmental - Operating Temperature 0°C to 40°C - Storage Temperature -15°C to 50°C - Operating Humidity 0-95% non-condensing Safety Features - Overcharge Protection Yes - Short Circuit Protection Yes - Temperature Monitoring Yes Communications - Interface Compatible with UPS communication system - Status Monitoring Integrated with UPS monitoring system

Technical Parameters Category Specification Product Model 9SXEBM72R Product Family Eaton 9SX Series Battery Modules Device Type External Battery Module (Rack-mount) Compatibility Eaton 9SX series UPS systems Battery Technology Sealed Lead-Acid (SLA) VRLA Nominal Voltage 192V DC Battery Capacity 7Ah (per battery string) Form Factor 2U Rack-mountable Physical Dimensions 89 × 482 × 605 mm (H×W×D) Weight Approximately 25 kg Operating Temperature 0°C to 40°C Storage Temperature -15°C to 50°C Relative Humidity 0-95% non-condensing Cooling Natural convection Safety Standards UL, cUL, CE, RoHS
