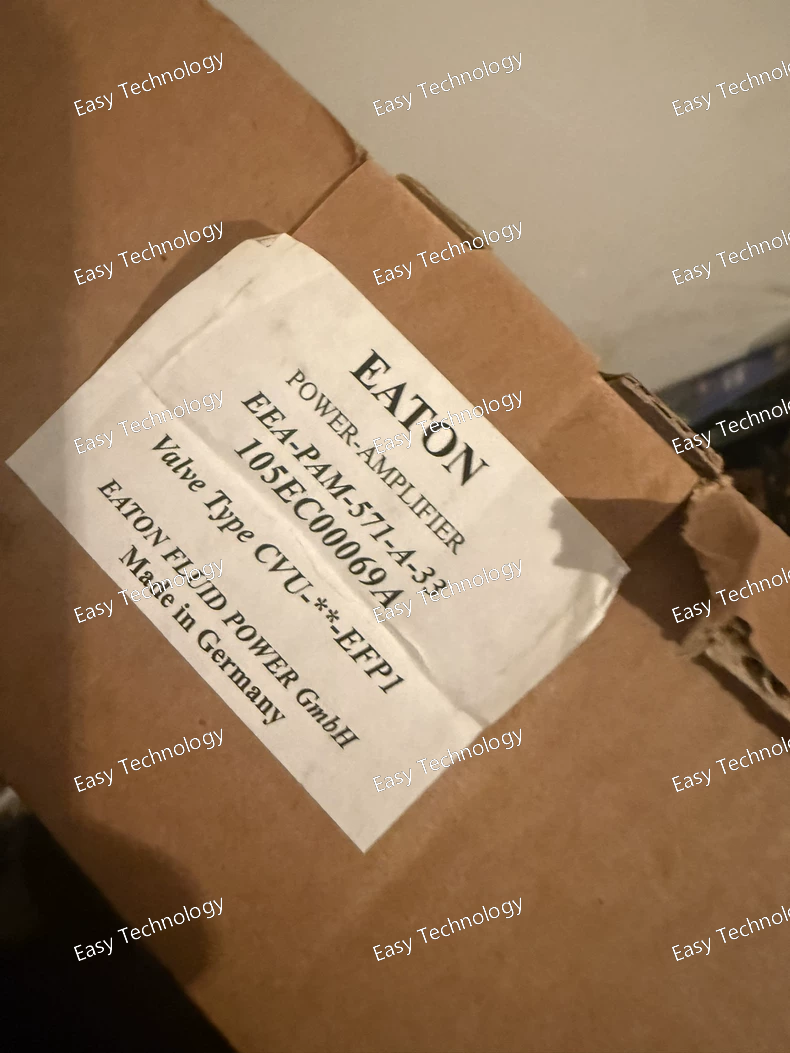

Key Parameters Parameter Specification / Description Module Type Electronic proportional amplifier module Series EEA-PAM Function Converts control signal (voltage/current) into proportional output current to drive solenoid valves Control Signal 0–10 V DC or 4–20 mA (depending on variant) Output Current Up to rated current for solenoid valve (e.g., 0–2 A typical) Voltage Supply 24 V DC standard Response Time Fast response for precise flow/pressure control Temperature Range –20 °C to +70 °C Protection Typically includes overcurrent and short-circuit protection Mounting Panel or DIN rail mount (variant dependent) Environmental Designed for industrial/military-grade vibration and temperature conditions

Key Parameters Parameter Specification / Description Valve Type Screw-in hydraulic check valve Series / Size CT‑06 (NG6 / CETOP 3 interface) Function Allows flow in one direction, blocks flow in reverse Maximum Flow 50 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Crack / Opening Pressure ~2–3 bar typical Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge for manifold or subplate installation Housing / Cavity NG6 / CETOP 3 standard

Key Parameters Parameter Specification / Description Valve Type 2-way, 2-position directional control valve Series CG2V Function Controls hydraulic flow direction; normally closed in de-energized state Maximum Flow Rate 10 L/min (approx.) Maximum Operating Pressure 210 bar (≈ 3000 psi) Actuation Type Solenoid or manual lever (variant dependent) Coil Voltage 12/24 V DC or 110/220 V AC (variant dependent) Seal Material Buna-N (standard) Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount Port Size 1/4" (NG1 / CETOP 1 interface)

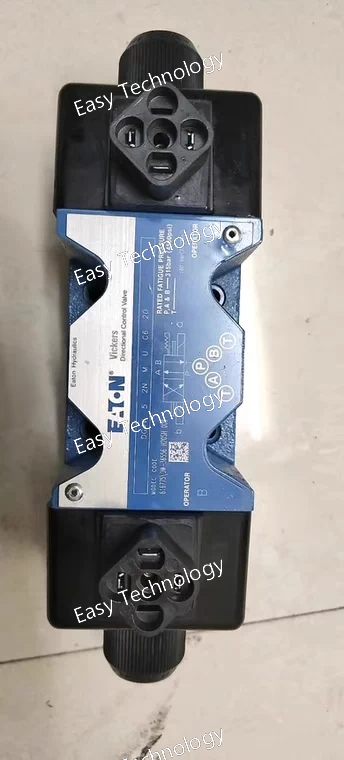

Key Parameters Parameter Specification / Description Valve Type 3-position, 4-way directional control valve Series SV11 Function Controls hydraulic flow direction to actuators; center position normally closed Maximum Flow Rate 100 L/min (approx.) Maximum Operating Pressure 250 bar (≈ 3600 psi) Actuation Type Solenoid-operated Coil Voltage 12/24 V DC or 110/220 V AC (variant dependent) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount Port Size NG10 / CETOP 5 interface

Key Parameters Parameter Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMC3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Regulates flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type PTG (proportional) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMC2‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Controls flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type AT / BT (proportional pilot-operated) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

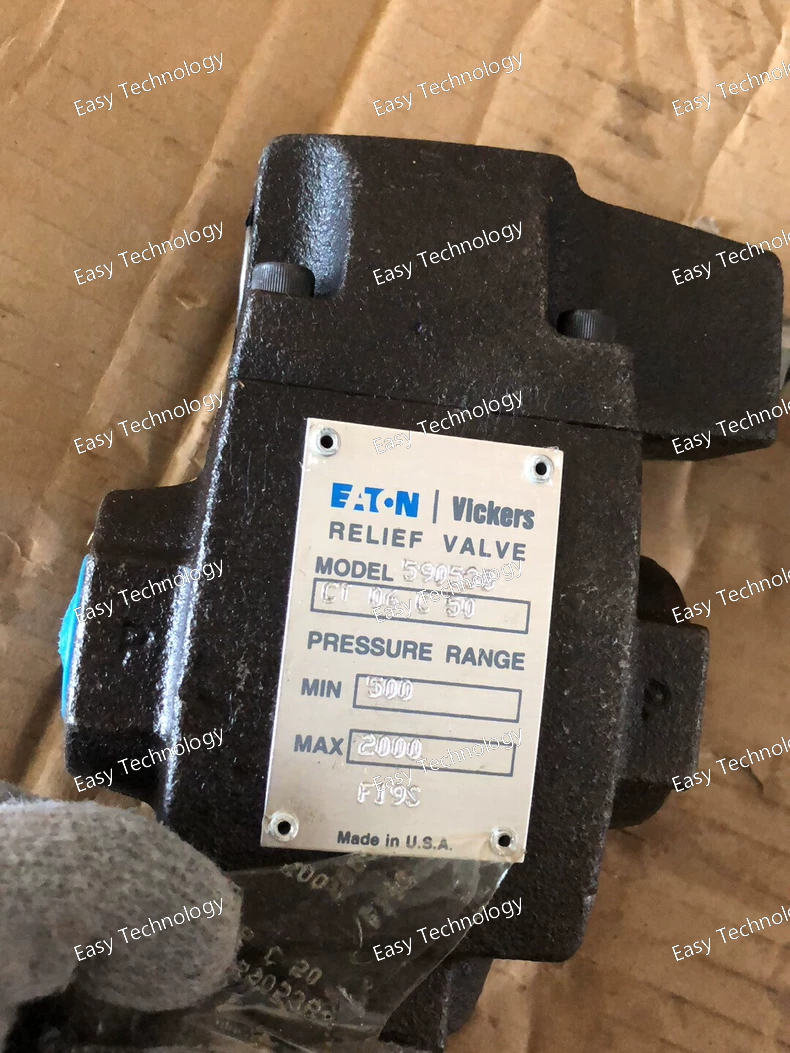

Key Parameters Parameter Specification / Description Valve Type Pilot-operated pressure relief valve Series / Size ST307‑V2 Function Limits system pressure by opening when preset pressure is exceeded Maximum Pressure 150 bar (≈ 2175 psi) Flow Capacity Up to rated flow (depends on system configuration, approx. 50–100 L/min typical) Adjustment Adjustable spring for setting desired relief pressure Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Viscosity Range 10–800 cSt Operating Temperature –20 °C to +80 °C Mounting Type Subplate / manifold mount Port Size NG10 / CETOP 5 (or as per installation requirements)

Key Parameters Parameter Specification / Description Coil Type Solenoid coil for hydraulic valves Part Number 02‑154423 Rated Voltage 24 V DC Rated Current 7 A Duty Cycle Continuous duty Operating Temperature –20 °C to +70 °C Electrical Connector Flying leads or DIN connector (variant dependent) Mounting Screw-in / valve-specific mount Insulation Class Typically Class H or equivalent Environmental Protection Designed for industrial/mobile environments (splash and dust resistant) Compatible Valves Directional control valves, proportional valves (specific series dependent)

Key Parameters Parameter Specification / Description Valve Type Proportional directional control cartridge valve Series / Size DGMDC‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Controls flow direction proportionally based on electrical input; maintains stable operation under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type X / BK (proportional pilot-operated) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Valve Type Pilot-operated pressure relief cartridge valve Function Protects hydraulic circuits by relieving excess pressure Maximum Operating Pressure 350 bar (≈ 5000 psi) Flow Capacity Up to rated flow (depends on system design, typically 20–50 L/min) Adjustment Adjustable spring for setting desired relief pressure Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Viscosity Range 10–800 cSt Operating Temperature –20 °C to +80 °C Mounting Type Screw-in cartridge or manifold mount Port Size NG6 / CETOP 3 (or as per installation requirements)
