Parameter Value / Description Product Name Eaton RG-3FK1-30-JA Product Line Eaton RG Series Signal Towers Type Multi-Stack LED Signal Tower / Tower Light Number of Levels / Stories 5 Standard Color Sequence Green - Yellow - Red - Blue - White (from top to bottom) Light Source High-Intensity LEDs Supply Voltage 24 V DC (This is a common voltage for this series; please verify in specific datasheets) Power Consumption Approx. 2.5 W per segment (approx. 12.5 W total for all 5 segments) Lens Material Polycarbonate Degree of Protection IP65 (Front and body) Mounting Via M30 mounting thread (The "-30-" in the part number indicates this) Connection Type Pre-wired cable or connector (specific type and length may vary; often a 2-meter cable) Switching Each segment requires a separate DC voltage signal to activate (e.g., PLC digital output). Operating Temperature -25 °C to +55 °C Storage Temperature -30 °C to +70 °C Standards Compliance IEC/EN 60529, UL 508, CSA C22.2 No. 14

Parameter Value / Description Product Name Eaton TGM PC-3-ABK-BAK-50 Product Line Eaton TGM Series (Heavy-Duty Limit Switches) Type Heavy-Duty Limit Switch with Maintained Contact Action Actuator Type Side Rotary Lever (with roller) Contact Configuration 1 Normally Open (NO) + 1 Normally Closed (NC) (This is the standard for "PC-3" series) Rated Operating Current 10 A at 600 V AC / 0.5 A at 600 V AC (for DC voltages, please check datasheet) Rated Insulation Voltage 600 V Electrical Life 1,000,000 operations (at rated load) Mechanical Life 10,000,000 operations Degree of Protection IP65 (Dust-tight and protected against water jets) Electrical Connection Screw Clamp Terminals Housing Material Metal (typically die-cast zinc) Operating Temperature -25 °C to +85 °C (depending on seal material) Actuator Travel Approximately 12° (for this side rotary lever type) Operating Force Defined by the lever length and spring mechanism. Standards Compliance IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

Parameter Value / Description Product Name Eaton DGMPC-5-ABN-BAN-30 Product Line Eaton D4B / D4C Series (Heavy-Duty Limit Switches) Type Heavy-Duty Limit Switch with Maintained Contact Action Actuator Type Top Push Plunger with Roller Contact Configuration 2 Normally Open (NO) Contacts (This is the standard configuration for the "PC-5" contact block) Rated Operating Current 10 A at 600 V AC Rated Insulation Voltage 600 V Electrical Life 1,000,000 operations (at rated load) Mechanical Life 10,000,000 operations Degree of Protection IP65 (Dust-tight and protected against water jets) Electrical Connection Screw Clamp Terminals Housing Material Metal (Die-cast zinc) Operating Temperature -25 °C to +85 °C (depending on seal material) Pretravel The distance the plunger moves from its free position to the operating point. (Specific value requires datasheet, e.g., ~4.8mm). Overtravel The distance the plunger can travel beyond the operating point. (Specific value requires datasheet). Operating Force The force required to actuate the plunger (Specific value requires datasheet, e.g., ~3.5 N). Reset Force The force exerted by the internal spring to return the plunger. Standards Compliance IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

Parameter Specification Notes Series DGMDC-5 Output Power 30 W Continuous Input Voltage (Vin) 4.5 - 5.5 VDC Wide Range Output Voltage (Vout) 13.8 VDC Nominal Output Current (Iout) Up to 2.17 A At full load Efficiency Typically 89% At nominal input, full load Isolation 1500 VDC Input to Output Input-Output Ripple & Noise < 50 mVp-p Typical, 20MHz bandwidth Line Regulation ±0.5% For full input range change Load Regulation ±0.5% From 10% to 100% load Operating Temperature -40°C to +100°C With derating above ~85°C Storage Temperature -55°C to +105°C Package / Mounting Through-Hole (Pin-in-Paste) "TN" Style Dimensions (L x W x H) Approximately 33.0 x 22.6 x 10.2 mm Safety Standards UL/EN/IEC 60950-1 Or equivalent EMC Complies with EN 55032 (FCC Part 15) Class B Typically with external filter

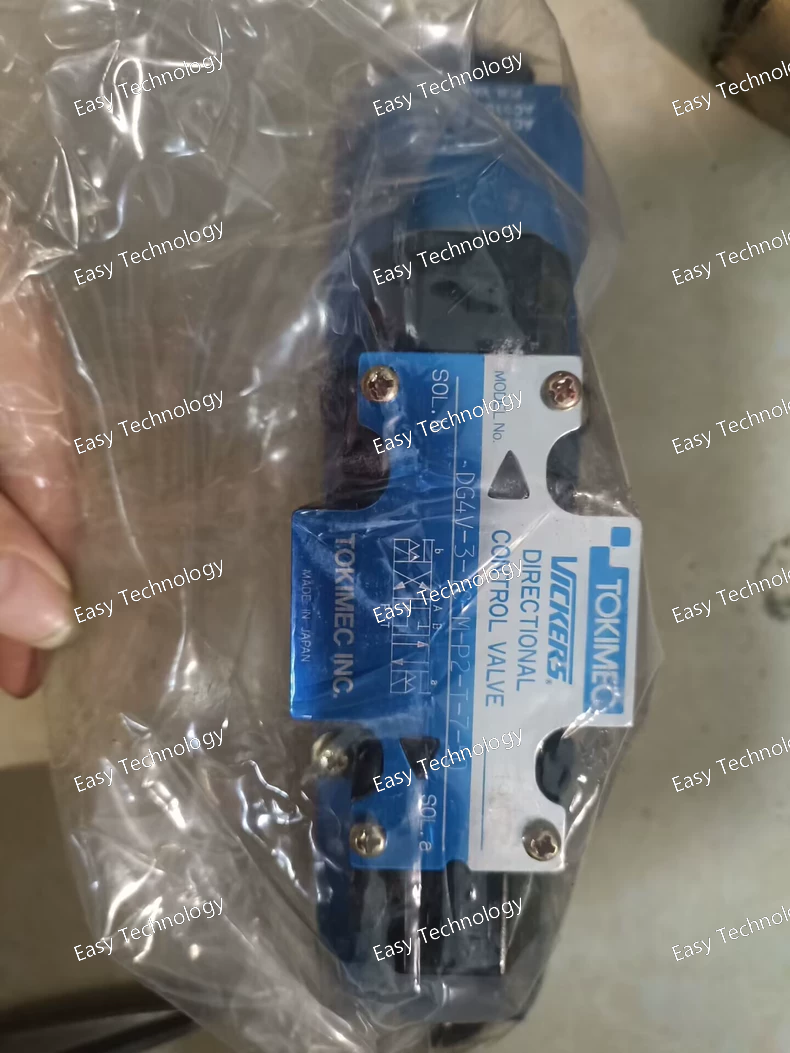

Parameter Specification Notes / Explanation Model Series DG4V Valve Size 03 CETOP 3, NFPA D01 Mounting Interface ISO 4401-03 NFPA D01, H7 Option Number of Ports 4 (P, T, A, B) Number of Positions 3 Actuation Type Solenoid Operated, Hydraulic Pilot Requires pilot pressure Solenoid Type Wet Armature DC Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Capacity ~ 45 L/min (12 US gpm) Dependent on spool type and pressure drop Pilot Pressure Range 17 - 35 bar (250 - 500 psi) minimum Required for spool shifting Internal Pilot Supply From 'P' port Return Spring M Spring-centered to neutral position Manual Override U With manual override (standard) Seal Material Standard: Nitrile (Buna-N) Optional Viton available

Parameter Specification (Estimated) Notes Product Type Thermal Overload Relay For 3-phase AC motor protection Series Likely part of the Eaton DILER or Meme series Adjustable Current Range e.g., 2.5 - 8.2 A Allows setting to match motor FLC Rated Insulation Voltage (Ui) 690 V / 750 V Rated Operational Voltage (Ue) 690 V AC Compatible Contactors Designed to match specific Trip Class Class 10 Standard trip characteristic (7-10 sec at 600% current) Ambient Temperature -20°C to +60°C Operation without derating Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 Reset Mode Manual or Automatic Selectable Auxiliary Contacts Normally Closed (NC) + Normally Open (NO) For control circuit signaling (e.g., trip indication)

Parameter Specification (Estimated) Notes Product Type Thermal Overload Relay For 3-phase AC motor protection Series Likely part of the Eaton DILER or Meme series Same series as 300AA00382A Adjustable Current Range e.g., 2.0 - 6.3 A Fine-tuned to match the protected motor's FLC Rated Insulation Voltage (Ui) 690 V / 750 V Rated Operational Voltage (Ue) 690 V AC Compatible Contactors Designed to match specific Trip Class Class 10 Standard trip characteristic (7-10 sec at 600% current) Ambient Temperature -20°C to +60°C Operation without derating Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 Reset Mode Manual or Automatic Selectable Auxiliary Contacts Normally Closed (NC) + Normally Open (NO) For control circuit signaling (e.g., trip indication)

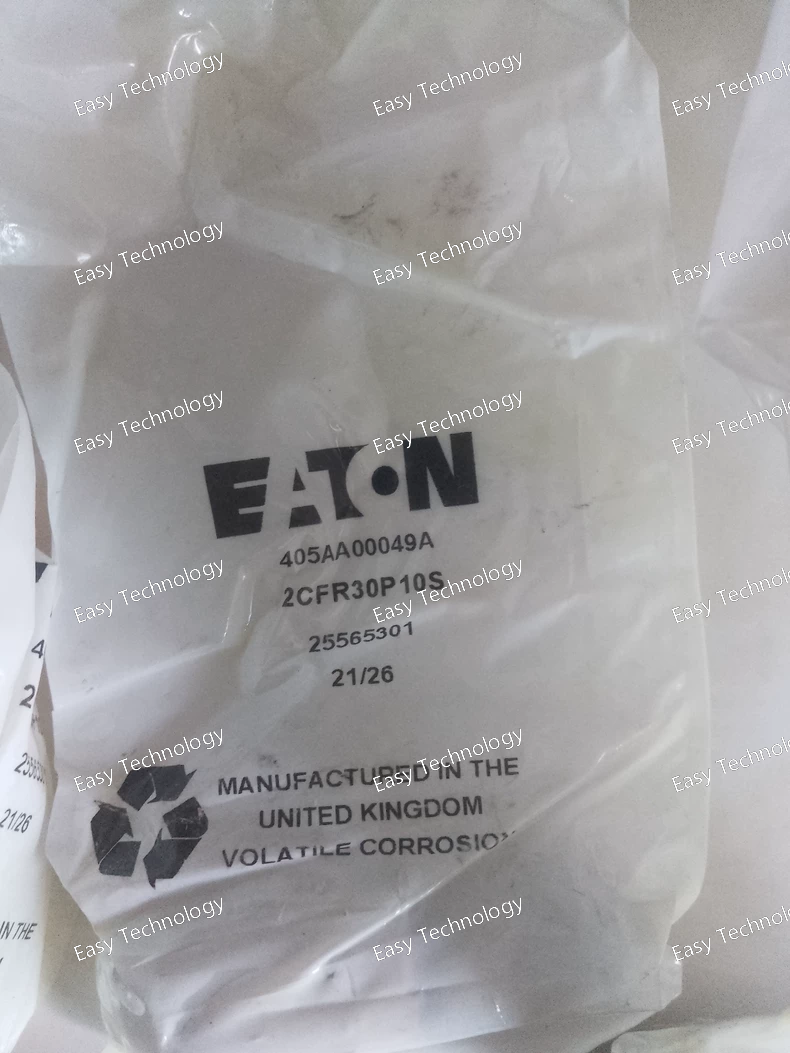

Parameter Specification Notes / Explanation Series 2CFR Rated Current 30 A Rated Voltage 250 VAC / 50-60 Hz For single-phase systems Rated Voltage (DC) 350 VDC Leakage Current < 3.5 mA Typical at 250VAC / 50Hz Test Voltage (Hi-Pot) 2250 VAC (Line-Line) 1500 VAC (Line-Ground) For 1 minute Operating Temperature Range -25°C to +100°C With derating above +40°C Termination Style Screw Terminals Housing Material Metal (Shielded) Standards & Approvals Complies with EN/IEC 60939 UL 1283 recognized, CSA certified Mounting Through-hole or bracket

Parameter Specification Notes / Explanation Model Series DGMPC Kepner Proportional Control Valve Valve Size 3 Nominal size, e.g., 3/4" NPT ports Number of Sections 2 Indicated by -ABK- and -BAK- Actuation Type Manual Lever Spring-centered return Maximum Operating Pressure Up to 350 bar (5,000 psi) Maximum Flow Capacity ~ 75 - 110 L/min (20 - 29 US gpm) Port Size Typically 3/4" NPTF Inlet Section Features Includes Relief Valve & Power Beyond "41" code typically indicates this Leakage Classification Industrial Seal Material Standard: Nitrile (Buna-N)

Parameter Specification Notes / Explanation Model Series CV1 Port Size 1/8" NPT "16" in the model number typically corresponds to 1/8" Number of Ports 5 (1-Pressure, 2-Exhaust, 2-Work ports A & B) Number of Positions 3 Actuation Type Solenoid Operated, Air Pilot Spool/Center Position Closed Center (All Ports Blocked) This is the "P" type in the model code Voltage Must be specified Common options: 12 VDC, 24 VDC, 120 VAC, 240 VAC Operating Pressure Range 30 - 120 psi (2 - 8 bar) Typical for pneumatic valves Maximum Flow (Cv factor) ~ 0.5 Response Time ~ 20 - 50 ms Duty Cycle 100% Continuous Mounting Style Sub-base / Manifold Mount ISO 5599-1 standard Seal Material Standard: Nitrile (Buna-N) Coil Connection Conduit or DIN Form A With LED indicator
