Key Specifications
Output Current: 9.5A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 4kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >98% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Dimensions: 172 × 245 × 195mm (W×H×D)

Advanced Features
✔ Precision Control:

±0.2% speed accuracy (sensorless vector control)

Built-in PID controller for process automation

Automatic energy optimization (reduces power consumption)

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus DP, Ethernet/IP)

2 analog inputs (0-10V/4-20mA) + 3 digital inputs

2 relay outputs for status/control

✔ Protection & Safety:

Motor thermal protection (PTC thermistor support)

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional for safety compliance)

Certifications & Compliance
CE, UL, cULus

IEC 61800-5-1 (safety standards)

RoHS & REACH compliant

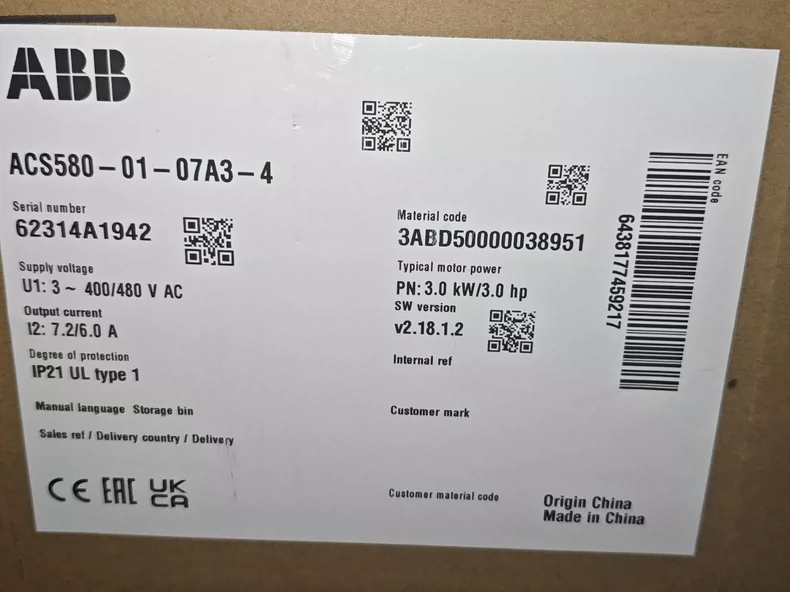

Technical Specifications:

Output Current: 7.3A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 3kW (at 400V)

Control Technology: Flux-optimized DTC

Overload Capacity: 110% continuous, 150% for 60 seconds

Efficiency: Up to 98%

Enclosure Rating: IP21 (NEMA 1)

Cooling Method: Intelligent fan cooling

Operating Temperature: 0°C to +40°C (50°C with derating)

Dimensions: 172 × 245 × 195mm (W×H×D)

Key Features:
✔ Advanced Control Capabilities:

±0.2% speed control accuracy

Built-in PID controller with autotuning

Energy optimization mode

✔ Enhanced Connectivity:

Standard Modbus RTU protocol

Optional fieldbus adapters (Profibus DP, Ethernet/IP)

2 analog inputs (configurable 0-10V/4-20mA)

3 digital inputs, 2 relay outputs

✔ Comprehensive Protection:

Motor thermal protection

Overcurrent/voltage protection

Ground fault detection

Optional Safe Torque Off (STO)

Certifications & Standards:

CE, UL, cULus certified

IEC 61800-5-1 compliant

RoHS compliant

Technical Specifications:

Output Current: 5.7A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 2.2kW (at 400V)

Control Method: Advanced Flux-optimized DTC

Overload Capacity: 110% continuous, 150% for 60s

Efficiency: >97.5% (typical)

Enclosure: IP21 (NEMA 1)

Cooling: Intelligent fan cooling

Operating Temp: 0°C to +40°C (50°C with derating)

Dimensions: 172 × 245 × 195mm (W×H×D)

Key Features:
✔ Enhanced Control Performance:

±0.5% speed control accuracy

Built-in PID controller

Automatic energy optimization

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus modules (Profibus, Ethernet)

2× analog inputs (0-10V/4-20mA)

3× digital inputs, 2× relay outputs

✔ Robust Protection:

Motor thermal monitoring

Overcurrent/voltage protection

Short-circuit protection

Optional STO safety function

Certifications & Compliance:

CE, UL, cULus listed

IEC 61800-5-1 compliant

RoHS compliant

Technical Specifications:

Output Current: 4.1A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 1.5kW (at 400V)

Control Method: Flux-optimized DTC control

Overload Capacity: 110% continuous, 150% for 60 seconds

Efficiency: >97% (typical)

Enclosure Rating: IP21 (NEMA 1)

Cooling Method: Fan cooled

Operating Temperature: 0°C to +40°C (full output), up to +50°C with derating

Dimensions: 172 x 245 x 195mm (WxHxD)

Key Features:
✔ Intuitive Operation:

Built-in multilingual control panel with LCD display

Assisted start-up wizard for easy commissioning

Parameter copy function between drives

✔ Flexible Connectivity:

Standard Modbus RTU communication

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog inputs (0/4-20mA or 0-10V)

3 digital inputs, 2 relay outputs

✔ Comprehensive Protection:

Motor thermal protection

Overcurrent/overvoltage protection

Earth fault detection

Short circuit protection

Certifications & Compliance:

CE, UL, cUL

RoHS compliant

Meets IEC 61800-5-1 safety standards

Key Specifications
Output Current: 3.4A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 1.1kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >97% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Advanced Features
✔ User-Friendly Operation:

Built-in LCD control panel (multilingual interface)

Assisted start-up wizard for quick commissioning

Copy function for easy parameter transfer

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog & 3 digital inputs, 2 relay outputs

✔ Protection & Safety:

Motor thermal protection

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional)

Certifications & Compliance
CE, UL, cULus

RoHS compliant

IEC 61800-5-1 (safety standards)

Key Specifications
Output Current: 2.7A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 0.75kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >97% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Advanced Features
✔ User-Friendly Operation:

Built-in LCD control panel (multilingual interface)

Assisted start-up wizard for quick commissioning

Copy function for easy parameter transfer

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog & 3 digital inputs, 2 relay outputs

✔ Protection & Safety:

Motor thermal protection

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional)

Certifications & Compliance
CE, UL, cULus

RoHS compliant

IEC 61800-5-1 (safety standards)

Technical Specifications:

Output Current: 45A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Range: 22-30kW (depending on voltage)

Control Technology: Direct Torque Control (DTC)

Overload Capacity: 150% for 60 seconds

Efficiency: >98% typical

Cooling Method: Air cooling (standard)

Protection Class: IP00 (cabinet installation required)

Key Features:
✔ Advanced Control Performance:

±0.1% speed accuracy (with encoder)

Full torque at zero speed

Built-in PID controller

✔ Smart Connectivity:

Multiple fieldbus options (Profibus, Modbus, Ethernet/IP)

Integrated safety functions (STO, SS1)

Condition monitoring capabilities

✔ Robust Design:

-40°C to +55°C operating range (with derating)

Low harmonic distortion

Compact footprint

Certifications & Compliance:

CE, UL, cULus

IEC 61800-5-1 compliant

EMC Directive 2014/30/EU

Technical Specifications:

Output Current: 62A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 30kW (at 400V)

Control Method: Flux-optimized DTC control

Overload Capacity: 110% continuous, 150% for 60 seconds

Efficiency: >97% (typical)

Key Features:
✔ User-Friendly Operation:

Built-in multilingual control panel

Assisted start-up wizard

Copy function for parameter settings

✔ Connectivity Options:

Standard Modbus RTU

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog & 3 digital inputs, 2 relay outputs

✔ Protection Functions:

Motor thermal protection

Overcurrent/overvoltage protection

Earth fault detection

Short circuit protection

Physical Specifications:

Enclosure Rating: IP21 (NEMA 1)

Cooling Method: Fan cooled

Operating Temperature:

0°C to +40°C (full output)

Up to +50°C with derating

Dimensions: 245 x 405 x 220mm (WxHxD)

Certifications & Compliance:

CE, UL, cUL

RoHS compliant

Meets IEC 61800-5-1 safety standards

Technical Specifications:

Output Current: 414A

Voltage Range: 380-500V AC, 3-phase (±10%)

Power Range: 250-315kW (voltage dependent)

Control Technology: Advanced Direct Torque Control (DTC)

Overload Capacity: 150% for 60 seconds

Efficiency: >98% (typical full-load)

Cooling Method: Liquid or forced air cooling (configurable)

Protection Class: IP00 (requires cabinet installation)

Key Features:
✔ Superior Control Performance:

±0.1% speed accuracy (with encoder)

Full torque production at zero speed

Built-in adaptive PID controller

✔ Advanced Connectivity:

Multiple fieldbus options (Profibus, Ethernet/IP, Modbus)

Integrated safety functions (STO, SS1, SLS)

Condition monitoring capabilities

✔ Robust Construction:

Designed for 24/7 operation

-40°C to +55°C operating range (with derating)

Low harmonic distortion design

Certifications & Compliance:

CE, UL, cULus listed

IEC 61800-5-1 compliant

Meets EMC Directive 2014/30/EU

Key Specifications
Output Current: 246A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Range: 132–160kW (depending on voltage)

Control Method: Direct Torque Control (DTC)

Overload Capacity: 150% for 60 seconds

Efficiency: >98% (typical)

Cooling Options: Air or liquid cooling (configurable)

Protection Class: IP00 (cabinet installation required)

Advanced Features
✔ Precision Control:

±0.1% speed accuracy (with encoder feedback)

Full torque at zero speed

Built-in PID controller for process automation

✔ Smart Connectivity & Safety:

Multiple fieldbus options (Profibus DP, Modbus RTU, Ethernet/IP)

Integrated Safe Torque Off (STO) for functional safety

Predictive maintenance via condition monitoring

✔ Robust & Reliable:

Wide operating temperature range (-40°C to +55°C with derating)

Heavy-duty design for 24/7 industrial use

Low harmonic distortion with optional filters

Certifications & Compliance
CE, UL, cULus

IEC 61800-5-1 (safety standards)

EMC compliant (2014/30/EU)
