Key Specifications
✔ Power Rating: 4 kW (5 HP)
✔ Input Voltage: 3-phase 380–480V AC (±10%), 50/60 Hz
✔ Output Current: 9.5 A
✔ Overload Capacity: 150% for 3 seconds
✔ Control Method: Sensorless Vector Control (DTC option available)
✔ Switching Frequency: 2–16 kHz (adjustable)
✔ Efficiency: >97%

Main Features
1. Advanced Motor Control
Direct Torque Control (DTC) for precise speed regulation (±0.5% accuracy)

Automatic Motor Adaptation (AMA) – optimizes performance without encoder feedback

Torque boost & flying start – ensures smooth operation under load

2. Application Flexibility
Pre-programmed macros (pump, fan, conveyor) for quick setup

Built-in PID controller for process control (pressure, flow, temperature)

Customizable logic via free function blocks

3. Protection & Safety
Motor thermal protection (PTC/KTY input)

Short-circuit, overvoltage, and ground fault protection

Safe Torque Off (STO) – SIL3/PL e safety compliance

4. Connectivity & Control
Standard RS485 (Modbus RTU)

2 analog inputs (0–10V/4–20mA), 4 digital inputs, 1 relay output

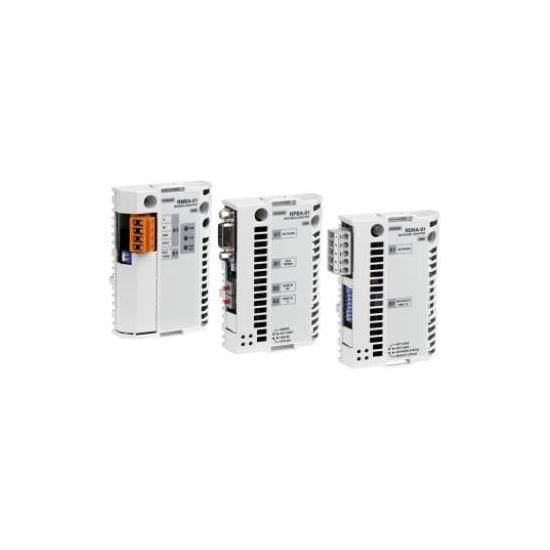

Optional fieldbus adapters (Profibus DP, DeviceNet, CANopen)

5. Compact & Robust Design
IP20 enclosure (dust protected)

Optional IP66/NEMA 4X kit for harsh environments

Built-in EMC filter (Class A compliance)

Physical & Environmental Specs
Dimensions: 150 × 200 × 165 mm (W×H×D)

Weight: 2.1 kg

Cooling: Convection cooling (fanless)

Ambient Temp: -10°C to +50°C (14°F to 122°F)

Key Specifications
✔ Power Rating: 22 kW (30 HP)
✔ Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz
✔ Output Current: 44 A
✔ Overload Capacity: 150% for 3 seconds
✔ Control Method: Direct Torque Control (DTC)
✔ Switching Frequency: 2-16 kHz (adjustable)
✔ Efficiency: >97.5% at full load

Technical Features
1. Advanced Motor Control
True DTC technology for precise speed (±0.1%) and torque (±2%) control

Automatic Motor Adaptation (AMA) for optimal performance

Torque boost and flying start functions

Motor thermal protection (PTC/KTY input)

2. Industrial-Grade Design
Forced air cooling with temperature monitoring

Heavy-duty power components for extended service life

Coated PCBs for protection against harsh environments

Compact form factor (see physical specs below)

3. Application-Specific Functions
7 pre-programmed macros (pump, fan, conveyor, etc.)

Enhanced PID controller with sleep/wake function

Custom application programming via free function blocks

Pump and fan optimization curves

4. Protection & Safety
IGBT monitoring with short-circuit protection

Ground fault detection

Input phase monitoring

Safe Torque Off (STO) - SIL3/PL e certified

Overvoltage/undervoltage protection

5. Connectivity Options
Standard: RS485 (Modbus RTU)

Optional fieldbus: PROFIBUS DP, DeviceNet, CANopen

USB service port for quick parameter transfer

2 analog inputs (0-10V/4-20mA), 4 digital inputs, 2 relay outputs

Physical Specifications
Dimensions: 350 × 482 × 227 mm (W×H×D)

Weight: 15.2 kg

Enclosure Rating: IP20 (IP66 kit available)

Cooling Method: Forced air (temperature-controlled fan)

Ambient Temperature: -10°C to +50°C (14°F to 122°F)

Storage Temperature: -40°C to +70°C (-40°F to 158°F)

Key Specifications
Power Rating: 22 kW (30 HP)

Input Voltage: Single-phase 200-240V AC (±10%), 50/60Hz

Output Current: 105 A (three-phase output)

Overload Capacity: 150% for 3 seconds

Control Technology: Advanced sensorless vector control

Switching Frequency: 2-16 kHz (adjustable)

Efficiency: >96% (at full load)

Technical Highlights
✔ Power Conversion System

Specialized single-phase to three-phase conversion

Active front-end technology for clean power input

DC bus stabilization circuit

✔ Advanced Motor Control

ABB's proprietary DTC (Direct Torque Control)

Automatic Motor Adaptation (AMA)

Torque boost (±3% accuracy)

Flying start and DC braking

✔ Application-Specific Features

7 pre-programmed application macros

Enhanced PID controller with sleep/wake function

Customizable logic functions

Pump and fan optimization curves

✔ Protection Systems

Advanced thermal management

Input phase monitoring

Motor stall prevention

Safe Torque Off (STO) - SIL3/PL e certified

Physical Specifications
Dimensions: 400 × 500 × 250 mm (W×H×D)

Weight: 16.5 kg

Enclosure Rating: IP20 (IP66 kit optional)

Cooling: Forced air with temperature-controlled fan

Ambient Temperature: -10°C to +50°C (14°F to 122°F)

Key Specifications
Power Rating: 18.5 kW (25 HP)

Input Voltage: Single-phase 200-240V AC (±10%), 50/60Hz

Output Current: 90 A (three-phase output)

Overload Capacity: 150% for 3 seconds

Control Technology: Sensorless vector control

Switching Frequency: 2-16 kHz (adjustable)

Efficiency: >96%

Main Features
✔ Advanced Motor Control

Direct Torque Control (DTC) technology

Automatic Motor Adaptation (AMA)

Torque boost function (±3% accuracy)

Flying start capability

✔ Application-Specific Functions

5 pre-programmed application macros

Built-in PID controller

Customizable application programs

Pump and fan control curves

✔ Protection & Safety

Motor thermal protection (PTC/KTY supported)

Short circuit and ground fault protection

Safe Torque Off (STO) option (SIL3/PL e)

Input phase loss protection

✔ Connectivity Options

Standard RS485 (Modbus RTU)

Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen

USB service port for configuration

Physical Characteristics
Dimensions: 350 × 482 × 227 mm (W×H×D)

Weight: 14 kg

Enclosure Rating: IP20 (open type)

Cooling Method: Forced air cooling

Ambient Temperature Range: -10°C to +50°C (14°F to 122°F)

Key Specifications
✔ Power Rating: 18.5 kW (25 HP)
✔ Input Voltage: 3-phase 380–480V AC (±10%), 50/60 Hz
✔ Output Current: 38 A
✔ Overload Capacity: 150% for 3 seconds
✔ Control Method: Sensorless Vector Control (DTC option available)
✔ Switching Frequency: 2–16 kHz (adjustable)
✔ Efficiency: >97.5%

Main Features
1. Advanced Motor Control
Direct Torque Control (DTC) for precise speed/torque regulation (±0.5% accuracy)

Automatic Motor Adaptation (AMA) – optimizes performance without encoder feedback

Torque boost & flying start – ensures smooth operation under heavy loads

2. Application-Specific Functions
Pre-programmed macros (pump, fan, conveyor, hoist)

Built-in PID controller for process automation

Customizable logic via free function blocks

3. Protection & Safety
Motor thermal protection (PTC/KTY input)

IGBT monitoring for short-circuit protection

Ground fault detection

Safe Torque Off (STO) – SIL3/PL e safety compliance

4. Connectivity & Control
Standard RS485 (Modbus RTU)

2 analog inputs (0–10V/4–20mA), 4 digital inputs, 2 relay outputs

Optional fieldbus adapters (PROFIBUS DP, DeviceNet, CANopen)

5. Robust Design
IP20 enclosure (dust protected)

Forced air cooling with temperature monitoring

Built-in EMC filter (Class A compliance)

Physical & Environmental Specs
Dimensions: 350 × 482 × 227 mm (W×H×D)

Weight: 12 kg

Cooling: Forced air (fan included)

Ambient Temp: -10°C to +50°C (14°F to 122°F)

Key Specifications
Power Rating: 30 kW (40 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 60 A

Overload Capacity: 150% for 60 seconds

Control Technology: Direct Torque Control (DTC)

Brake Chopper: Integrated (P901 module)

Switching Frequency: 1-12 kHz (adjustable)

Efficiency: >98%

Main Features
✔ Advanced Motor Control

True DTC technology for precise speed/torque control

Automatic motor adaptation

Torque control mode (±1% accuracy)

Flying start function

✔ Application-Specific Functions

Multiple application macros

Built-in PID controller

Pump and fan control curves

Customizable application programming

✔ Protection & Safety

Motor thermal protection

Short circuit protection (IGBT monitoring)

Ground fault detection

Safe Torque Off (STO) option

✔ Connectivity Options

Standard RS485 (Modbus RTU)

Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen

USB service port

Physical Characteristics
Dimensions: 482 × 245 × 227 mm (H×W×D)

Weight: 15 kg

Enclosure Rating: IP21

Cooling Method: Forced air

Ambient Temperature Range: 0°C to +40°C (32°F to 104°F)Key Specifications
Power Rating: 30 kW (40 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 60 A

Overload Capacity: 150% for 60 seconds

Control Technology: Direct Torque Control (DTC)

Brake Chopper: Integrated (P901 module)

Switching Frequency: 1-12 kHz (adjustable)

Efficiency: >98%

Main Features
✔ Advanced Motor Control

True DTC technology for precise speed/torque control

Automatic motor adaptation

Torque control mode (±1% accuracy)

Flying start function

✔ Application-Specific Functions

Multiple application macros

Built-in PID controller

Pump and fan control curves

Customizable application programming

✔ Protection & Safety

Motor thermal protection

Short circuit protection (IGBT monitoring)

Ground fault detection

Safe Torque Off (STO) option

✔ Connectivity Options

Standard RS485 (Modbus RTU)

Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen

USB service port

Physical Characteristics
Dimensions: 482 × 245 × 227 mm (H×W×D)

Weight: 15 kg

Enclosure Rating: IP21

Cooling Method: Forced air

Ambient Temperature Range: 0°C to +40°C (32°F to 104°F)Key Specifications
Power Rating: 30 kW (40 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 60 A

Overload Capacity: 150% for 60 seconds

Control Technology: Direct Torque Control (DTC)

Brake Chopper: Integrated (P901 module)

Switching Frequency: 1-12 kHz (adjustable)

Efficiency: >98%

Main Features
✔ Advanced Motor Control

True DTC technology for precise speed/torque control

Automatic motor adaptation

Torque control mode (±1% accuracy)

Flying start function

✔ Application-Specific Functions

Multiple application macros

Built-in PID controller

Pump and fan control curves

Customizable application programming

✔ Protection & Safety

Motor thermal protection

Short circuit protection (IGBT monitoring)

Ground fault detection

Safe Torque Off (STO) option

✔ Connectivity Options

Standard RS485 (Modbus RTU)

Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen

USB service port

Physical Characteristics
Dimensions: 482 × 245 × 227 mm (H×W×D)

Weight: 15 kg

Enclosure Rating: IP21

Cooling Method: Forced air

Ambient Temperature Range: 0°C to +40°C (32°F to 104°F)Brake Chopper (P901) Details
Designed for dynamic braking applications

Requires external brake resistor

Handles regenerative energy

LED status indicator

Typical Applications
Centrifuges

Cranes and hoists

Test benches

Elevators

Winding machines

Certifications & Compliance
CE

UL

cULus

DNV GL

IEC 61800-3

Key Specifications
Power Rating: 5.5 kW (7.5 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 12.5 A

Overload Capacity: 150% for 3 seconds

Control Technology: Sensorless vector control

Switching Frequency: 2-16 kHz (adjustable)

Efficiency: >97.5%

Main Features
✔ Advanced Motor Control

Direct Torque Control (DTC) technology

Automatic Motor Adaptation (AMA)

Torque boost function (±3% accuracy)

Flying start capability

✔ Application Flexibility

5 pre-programmed application macros

Built-in PID controller

Customizable application programs

Pump and fan control curves

✔ Protection & Safety

Motor thermal protection (PTC/KTY supported)

Short circuit and ground fault protection

Safe Torque Off (STO) option (SIL3/PL e)

Overvoltage/undervoltage protection

✔ Connectivity Options

Standard RS485 (Modbus RTU)

Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen

USB service port for configuration

Physical Characteristics
Dimensions: 150 × 200 × 165 mm (W×H×D)

Weight: 2.3 kg

Enclosure Rating: IP20 (open type)

Cooling Method: Forced air cooling

Ambient Temperature Range: -10°C to +50°C (14°F to 122°F)

Key Specifications
✔ Power Rating: 0.75 kW (1 HP)
✔ Input Voltage: 3-phase 380–480V AC (±10%), 50/60 Hz
✔ Output Current: 2.1 A
✔ Overload Capacity: 150% for 3 seconds
✔ Control Method: Sensorless Vector Control (DTC option available)
✔ Switching Frequency: 2–16 kHz (adjustable)
✔ Efficiency: >97%

Main Features
1. Advanced Motor Control
Sensorless vector control for precise speed regulation (±0.5% accuracy)

Automatic Motor Adaptation (AMA) – optimizes performance without encoder feedback

Torque boost & flying start – ensures smooth operation under load

2. Application Flexibility
Pre-programmed macros (pump, fan, conveyor) for quick setup

Built-in PID controller for process control (pressure, flow, temperature)

Customizable logic via free function blocks

3. Protection & Safety
Motor thermal protection (PTC/KTY input)

Short-circuit, overvoltage, and ground fault protection

Safe Torque Off (STO) – SIL3/PL e safety compliance

4. Connectivity & Control
Standard RS485 (Modbus RTU)

2 analog inputs (0–10V/4–20mA), 4 digital inputs, 1 relay output

Optional fieldbus adapters (Profibus DP, DeviceNet, CANopen)

5. Compact & Robust Design
IP20 enclosure (dust protected)

Optional IP66/NEMA 4X kit for harsh environments

Built-in EMC filter (Class A compliance)

Physical & Environmental Specs
Dimensions: 70 × 170 × 145 mm (W×H×D)

Weight: 0.7 kg

Cooling: Convection cooling (fanless)

Ambient Temp: -10°C to +50°C (14°F to 122°F)

Key Specifications
Power Rating: 1.5 kW (2 HP)

Input Voltage: 1-phase 200-240V AC (±10%), 50/60Hz

Output Current: 7.8 A

Overload Capacity: 150% for 3 seconds

Control Technology: Sensorless vector control

Switching Frequency: 2-16 kHz (adjustable)

Efficiency: >96%

Main Features
✔ Advanced Motor Control

Direct Torque Control (DTC) technology

Automatic Motor Adaptation (AMA)

Torque boost function

Flying start capability

✔ Application Flexibility

5 pre-programmed application macros

Built-in PID controller

Customizable application programs

✔ Protection & Safety

Motor thermal protection (PTC input)

Short circuit and ground fault protection

Safe Torque Off (STO) option

✔ Connectivity Options

Standard RS485 (Modbus RTU)

Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen

Physical Characteristics
Dimensions: 150 × 200 × 165 mm (W×H×D)

Weight: 1.5 kg

Enclosure Rating: IP20 (open type)

Cooling Method: Natural convection

Ambient Temperature Range: -10°C to +50°C (14°F to 122°F)

Key Specifications:

Power Rating: 3.0 kW (4 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 7.2 A

Overload Capacity: 150% for 3 seconds

Control Method: Sensorless vector control

Switching Frequency: 2-16 kHz (adjustable)

Efficiency: >97.5%

Main Features:

Advanced Control Technology:
✓ ABB's Direct Torque Control (DTC)
✓ Automatic Motor Adaptation (AMA)
✓ Torque boost function
✓ Flying start capability

Application Flexibility:
✓ 5 pre-programmed application macros
✓ Built-in PID controller
✓ Customizable application programs
✓ Pump and fan control curves

Protection & Safety:
◆ Motor thermal protection (PTC/KTY)
◆ Short circuit and ground fault protection
◆ Safe Torque Off (STO) option
◆ Overvoltage/undervoltage protection

Connectivity Options:
◉ Standard RS485 (Modbus RTU)
◉ Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen
◉ USB service port for configuration

Physical Specifications:

Dimensions: 150 × 200 × 165 mm (W×H×D)

Weight: 1.8 kg

Enclosure Rating: IP20 (open type)

Cooling Method: Natural convection

Operating Temperature: -10°C to +50°C (14°F to 122°F)
