Bently Nevada 177230-00-01-05
Triaxial Vibration Sensor

Key Features:
• ±50g Triaxial Measurement
• 0.5Hz-5kHz Frequency Range
• 100mV/g Sensitivity

Standard Specs:
✓ -40°C to +120°C Operation
✓ IP67 Environmental Protection
✓ 5m PUR Cable (15m Optional)

Certifications:
• API 670 Annex F
• ATEX Zone 2

Applications:

Rotating Machinery

Structural Monitoring

Predictive Maintenance

Note: Requires IEPE conditioner. Not for Zone 0.

Bently Nevada 177230-01-02-CN
High-Temp Triaxial Accelerometer (China Edition)

Key Features:
• -55°C to +180°C Operation
• ±40g (X/Y), ±20g (Z) Ranges
• 15m High-Temp Cable

China Adaptations:
✓ GB/T 13824 Class A+
✓ Three Gorges Validated
✓ Gold-Plated MIL Connectors

Applications:

Steel Mill Monitoring

Geothermal Plants

Petrochemical Processes

Compliance:
• CNAS Certified
• Sinopec SPS-S-018

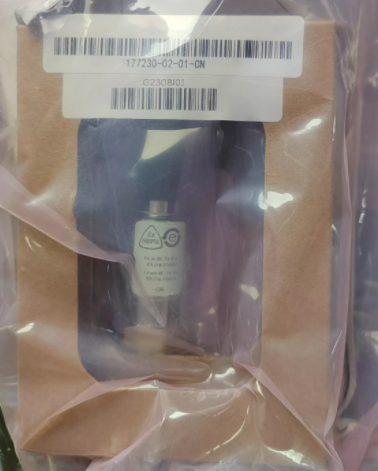

Bently Nevada 177230-02-01-CN
Ex d Triaxial Accelerometer (China Hazardous Area)

Key Features:
• GB 3836 Ex d IIC T6 Certified
• ±25g Range (All Axes)
• 20m MI Cable (CN Standard)

Safety Design:
✓ Flameproof Stainless Enclosure
✓ Integrated Safety Barrier
✓ Hermetic Sealing

China Compliance:
• CNEX Certified
• PetroChina GPEC Approved
• GB/T 13824 Class A

Applications:

Refinery FCC Units

Coal Mine Systems

Chemical Plants

Bently Nevada 177230-01-01-CN
Triaxial Vibration Sensor (China Enhanced Edition)

Key Features:
• Optimized Ranges: ±50g (X/Y), ±25g (Z)
• 1Hz-8kHz Broadband Response
• 15m Marine-Grade Cable

China-Specific:
✓ GB/T 13824-2018 Class A
✓ CNEX Zone 2 Certified
✓ Anti-Corrosion Coastal Package

Applications:

Offshore Wind Farms

Hydropower Stations

High-Speed Rail

Warranty:
• 5-Year Coastal Warranty

Bently Nevada 177230-00-01-CN
Triaxial Accelerometer (China Edition)

Key Features:
• ±50g Triaxial Measurement
• 0.5Hz-5kHz Frequency Range
• 10m Armored Cable

China Adaptations:
✓ GB/T 13823-2012 Certified
✓ Coastal Anti-Corrosion Coating
✓ Dual CN/EN Documentation

Applications:

Hydropower Dam Monitoring

Coastal Industrial Plants

PetroChina Projects

Compliance:
• China RoHS
• GB 3836 Explosion-Proof

Bently Nevada 9200-06-05-10-00
Dual-Channel Vibration Transmitter

Key Features:
• 2 Independent Inputs (proximity/velocity/accelerometer)
• 0-25.4mm (1") Range
• 4-20mA + Modbus Outputs

Technical Specs:
✓ 0.5Hz-10kHz Frequency Response
✓ ±1% Accuracy
✓ IP66/NEMA 4X Enclosure

Certifications:
• API 670 5th Ed.
• SIL 2 Capable
• DNV-GL Marine

Applications:

Remote Machinery Monitoring

Predictive Maintenance

DCS/PLC Integration

Bently Nevada 84661-20
Magnetic Speed Sensor (MPU)

Key Features:
• Variable Reluctance Operation
• 1-30V RMS Output (Speed Dependent)
• 10Hz-15kHz Frequency Range

Installation Specs:
✓ 0.25-2.5mm Air Gap
✓ Requires ≥60 Gear Teeth
✓ 5m Integral Cable

Environmental:

-40°C to +120°C

20g Vibration Rated

Certifications:
• API 670 Annex K
• ATEX Zone 2

Applications:

Turbine Speed Monitoring

Gear Tooth Counting

Overspeed Protection

Bently Nevada 330500-02-00
IEPE Accelerometer

Key Features:
• ±50g Measurement Range
• 0.5Hz-10kHz Frequency Response
• 100mV/g Sensitivity

Technical Specs:
✓ -55°C to +125°C Operation
✓ IP67 Environmental Protection
✓ 5m Integral PUR Cable

Certifications:
• API 670 Annex F
• ATEX Zone 2

Applications:

Gearbox Monitoring

Bearing Fault Detection

Structural Vibration

Bently Nevada 3500/22M
Marine Axial Position Monitor

Key Features:
• DNV-GL Certified for offshore/marine use
• ±5mm Bidirectional Range (1μm resolution)
• Dual-Range Operation (±1mm/±5mm)

Enhanced Specs:
✓ ±0.5% Accuracy
✓ 10kHz Dynamic Sampling
✓ -40°C to +85°C Operation

Marine Functions:

Shaft Eccentricity Compensation

ISO 10816-3 Compliance

Waveform Capture

Certifications:
• DNV-GL/ABS Marine
• API 670 Annex B
• IECEx Zone 1

Applications:

Ship Propulsion Systems

Offshore Turbines

DP Thrusters

Bently Nevada 3500/15
Frame Interface Module

Core Features:
• RS-485 Modbus RTU Communication
• Supports 16 Monitor Modules
• 100ms System Update Rate

Key Specs:
✓ 1500V Channel Isolation
✓ <10ms Alarm Response
✓ -40°C to +70°C Operation

Functions:

Configuration Management

Event Time Stamping

System Health Monitoring

Compliance:
• API 670
• SIL 2
• DNV-GL

Applications:

DCS/PLC Integration

Safety Systems

Remote Monitoring
