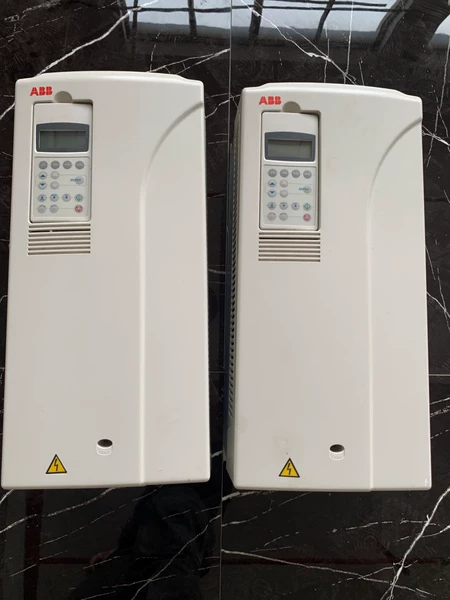

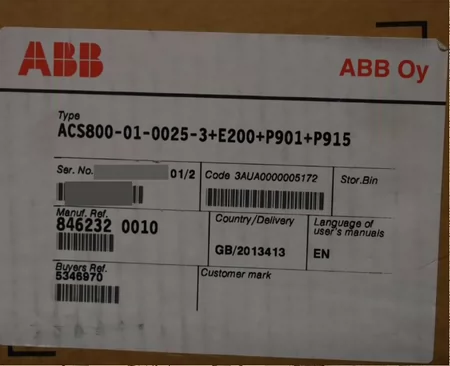

Core Specifications

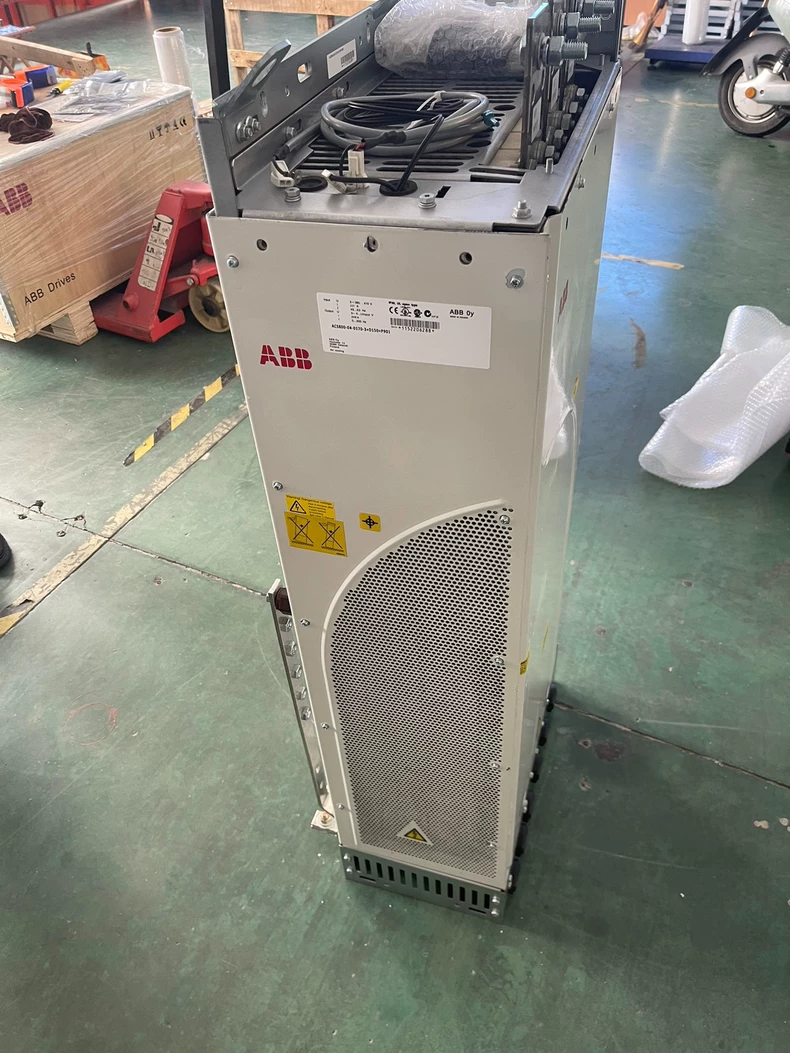

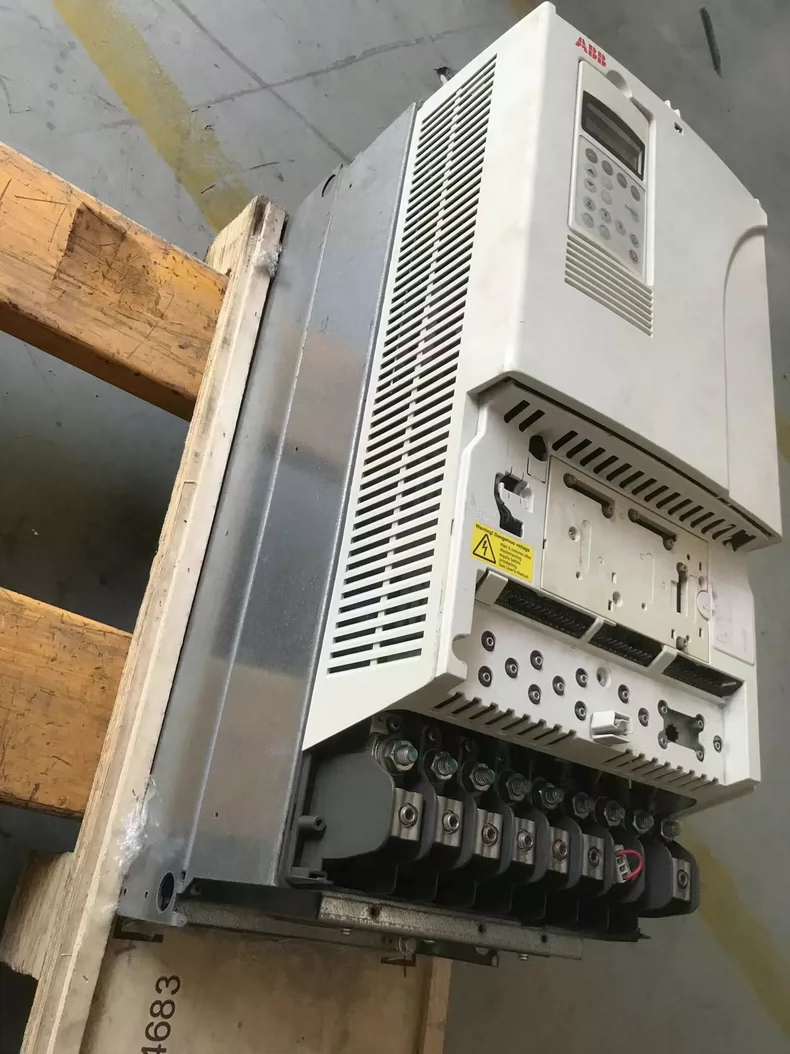

Drive Unit (ACS800-04-0210-3):

Output Power: 210kW (400V)

Output Current: 410A continuous

Input Voltage: 3-phase 380-415V AC (-15%/+10%)

Overload Capacity: 150% for 60 seconds

Control Method: Direct Torque Control (DTC)

Efficiency: >98% at full load

P901 Control Panel:

7" color touchscreen display

Multi-language interface (12 languages)

Built-in web server for remote monitoring

Data logging capacity: 8GB

Integrated USB port for configuration backup

Key System Features
Advanced Control:
✔ Precision Regulation: ±0.1% speed accuracy
✔ Adaptive Programming: 8 application-specific macros
✔ Process Control: Built-in PID with auto-tuning

Connectivity:

Standard interfaces:

PROFIBUS DP

Modbus RTU

Ethernet/IP

Optional fieldbus modules available

Safety & Protection:

STO (Safe Torque Off) - SIL3 certified

Motor thermal protection

Ground fault monitoring

DC bus overvoltage protection

Mechanical Specifications
Enclosure: IP21 (NEMA 1)

Cooling: Forced air with temperature control

Dimensions: 450 x 800 x 350mm (WxHxD)

Weight: 65kg (complete system)

Key Specifications
Parameter Specification
Rated Power 44kW continuous
Peak Power 88kW for 10% duty cycle
DC Voltage 510-780V DC
Current Rating 85A continuous
Enclosure IP20 (cabinet-mounted)
Cooling Forced air (built-in fan)
Protection Over-temperature, over-current
Technical Features
✔ Compact Design

Dimensions: 300 x 220 x 200mm (WxHxD)

Weight: 8.5kg

✔ Advanced Protection

Automatic thermal monitoring

Short-circuit protection

Status relay outputs

✔ Easy Integration

Direct connection to ABB drives

Standard screw terminals

LED status indicators

Compatibility
Designed for use with:

ACS580 series drives

ACS880 series drives

Other ABB drives with external braking capability

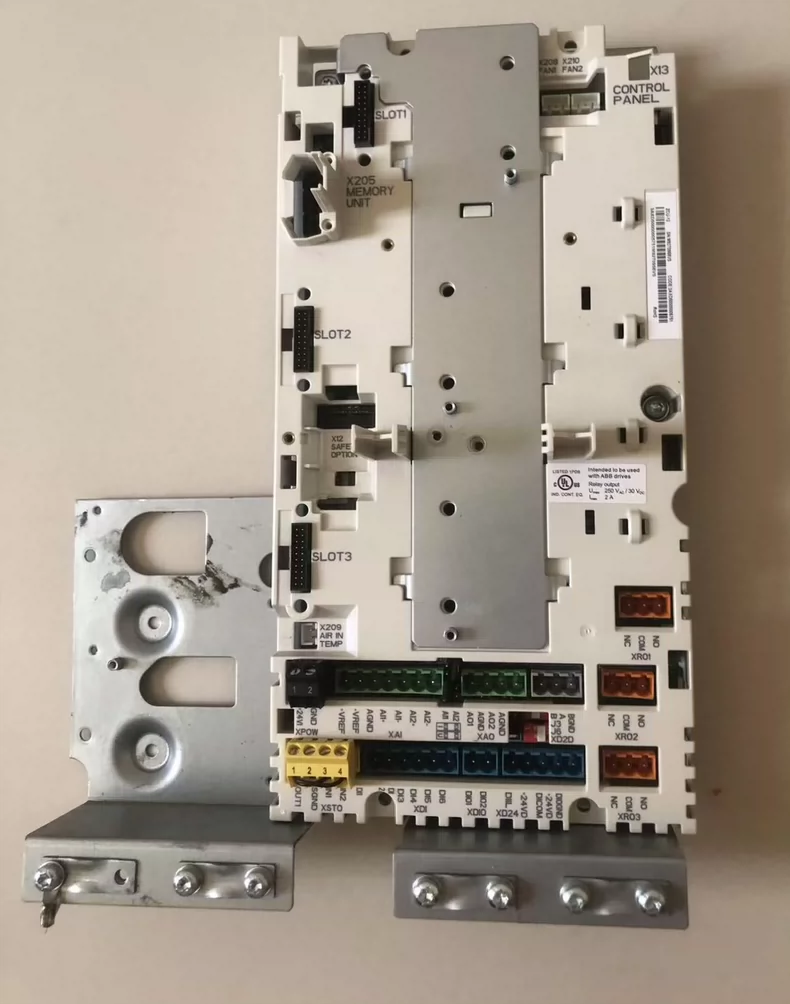

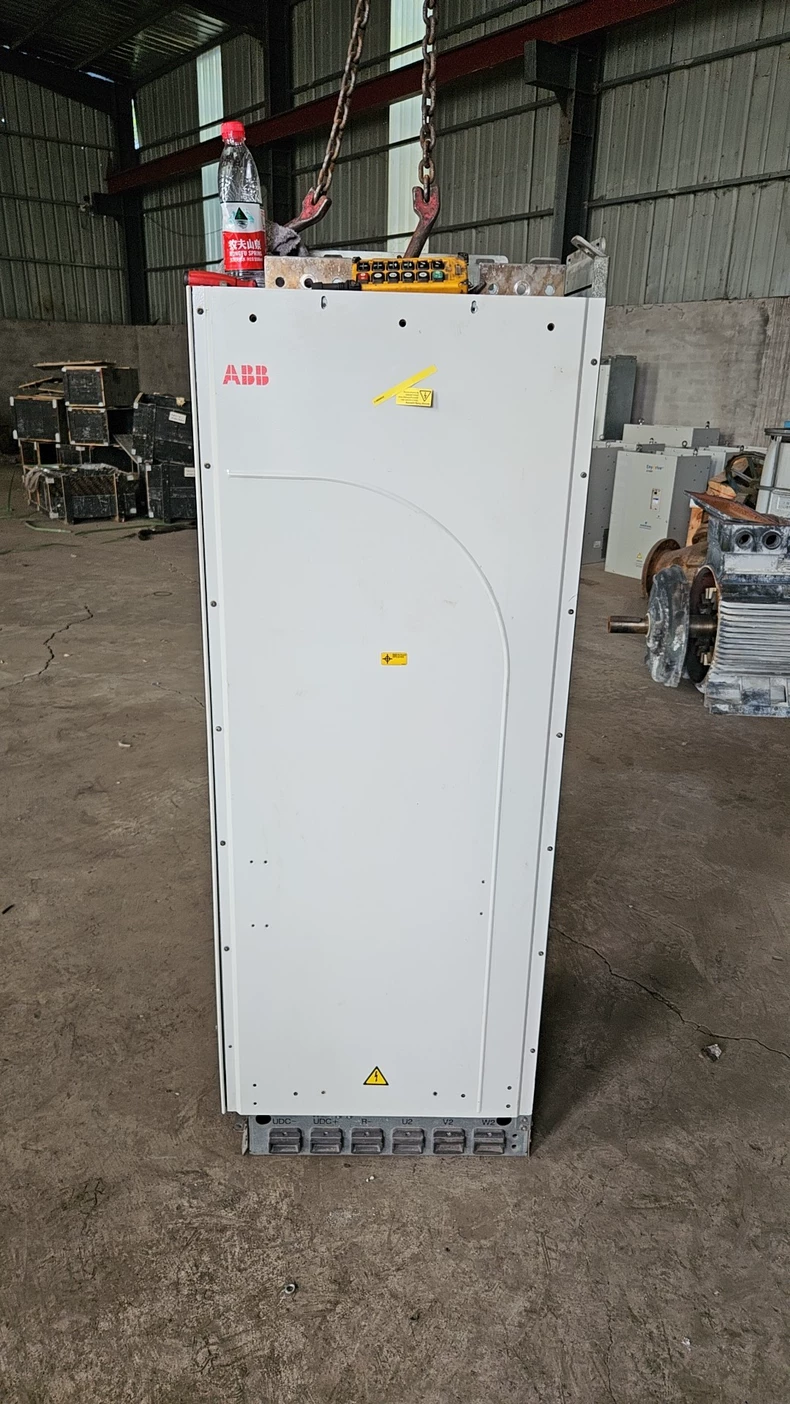

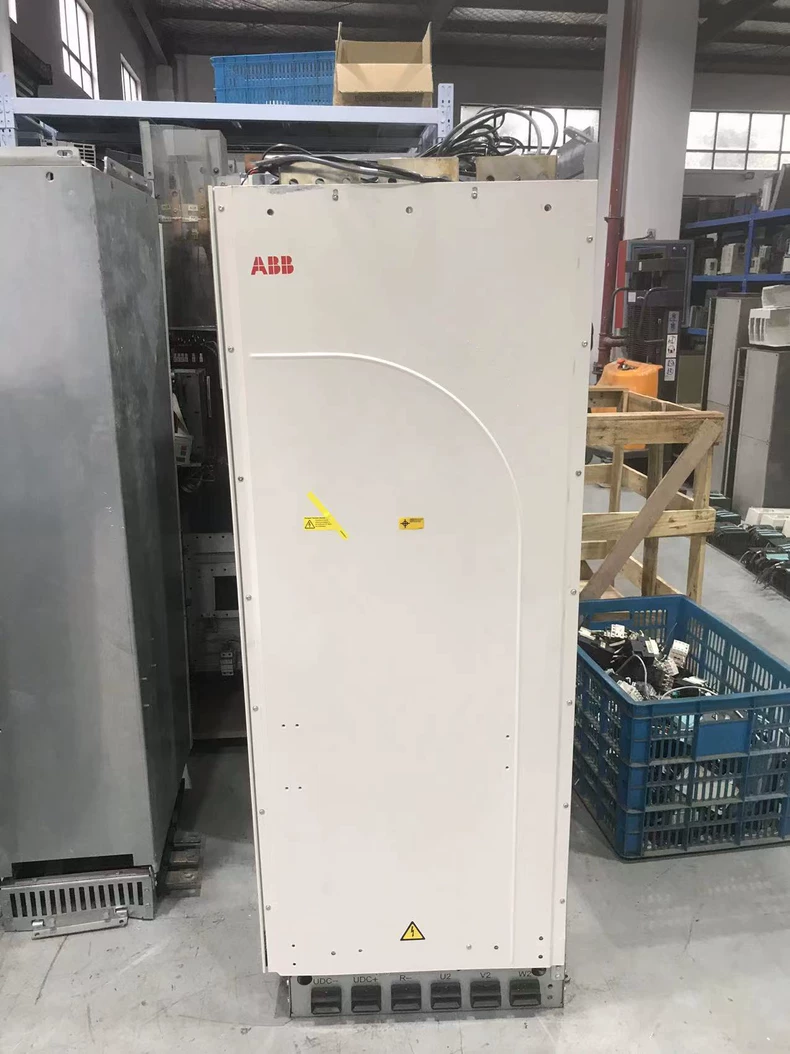

Technical Specifications
Power Characteristics:

Output Current: 800A continuous

Rated Power: 440kW (400V configuration)

Input Voltage: 3-phase 380-500V AC (-15%/+10%)

Overload Capacity: 110% continuous, 150% for 60s

Control & Performance:

Control Method: Direct Torque Control (DTC)

Speed Accuracy: ±0.01% of base speed

Torque Response: <5ms

Efficiency: >98% at full load

System Configuration:

P901 Option: Includes advanced process controller with:

Dual-channel safety system (SIL3/PL e)

Multi-axis synchronization capability

Integrated PLC functionality (IEC 61131-3)

Key Features
Advanced Control:
✔ Process Perfect technology for critical applications
✔ Adaptive programming for pumps/compressors
✔ Harmonic mitigation (<3% THD with active front end)

Connectivity:

Standard interfaces:

2x PROFINET IRT (TSN-ready)

OPC UA over TCP/IP

Embedded web server

Optional fieldbus modules available

Mechanical Design:

Enclosure: IP00 (cabinet installation required)

Cooling: Liquid/air hybrid cooling system

Dimensions: 800 x 2000 x 600mm (WxHxD)

Weight: 320kg (base unit)

Key Specifications
Parameter Specification
Output Current 9A
Rated Power 2.2kW (3HP) at 230V
Input Voltage 3-phase 200-240V AC (-15%/+10%), 50/60Hz
Enclosure IP20 (NEMA 1 equivalent)
Control Methods Sensorless Vector Control (V/f)
Overload 150% for 60 seconds
Communication Modbus RTU via RJ45 port
Key Features
✔ Compact Design - Ultra-small footprint (132 x 150 x 150mm)
✔ Simple Operation - Basic keypad with LED display
✔ Motor Protection - Built-in thermal overload protection
✔ Quick Setup - 5-parameter quick start function
✔ EMC Compliance - Meets EN 61800-3 Category C2

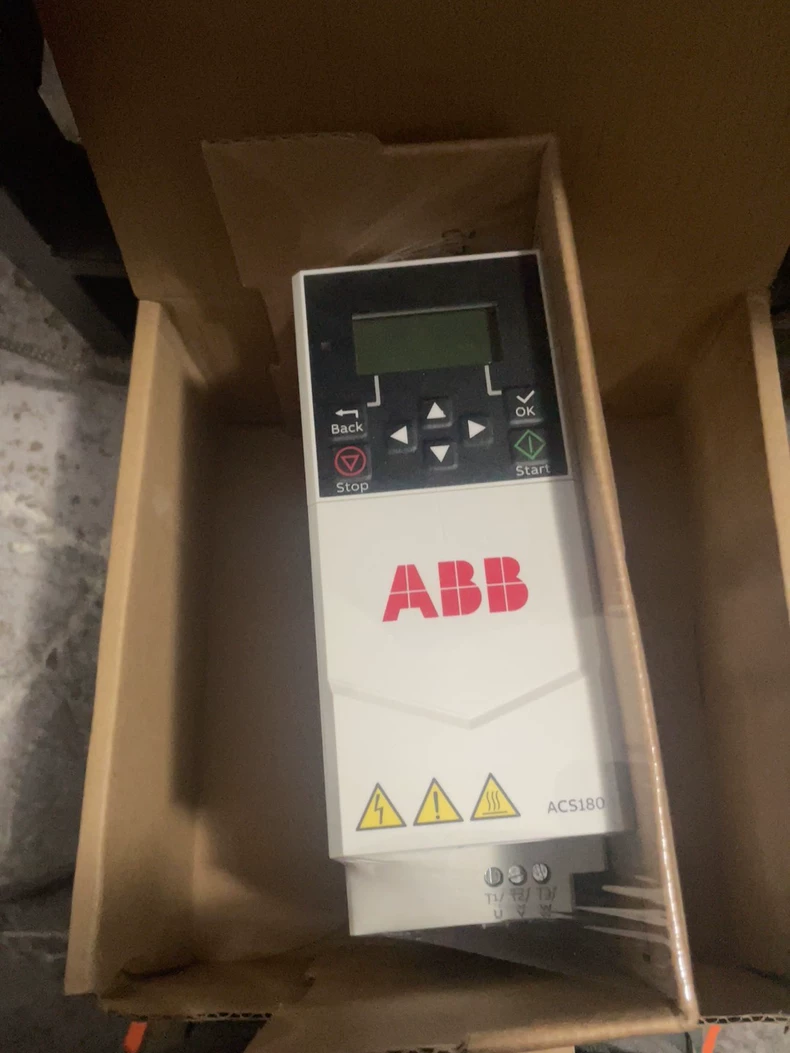

Model Identification
ACS180: Series name

04N: 230V input voltage class

06A9: 9A output current (3HP rating)

1: Standard control panel version

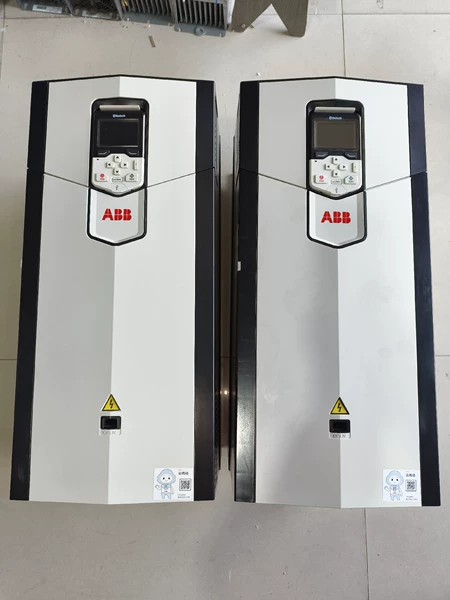

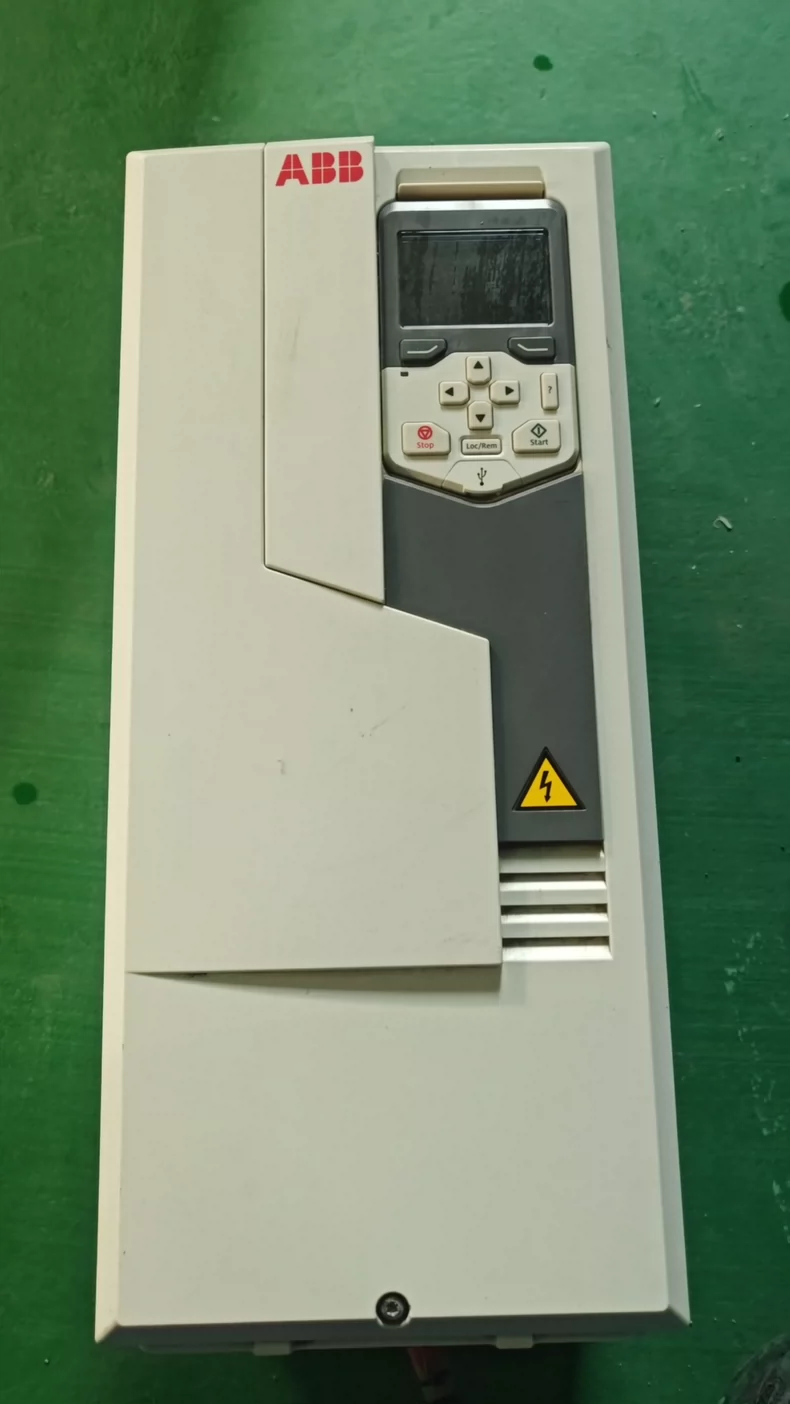

Key Specifications
Parameter Specification
Output Current 39A
Rated Power 15kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Flux-optimized V/f & DTC (Sensorless Vector)
Overload 150% for 60 seconds
Communication Modbus RTU (RS485) standard
Advanced Features
✔ Energy Optimization - Adaptive control reduces energy consumption by 20-50%
✔ Intuitive Operation - ABB Assist Panel with plain-text parameter interface
✔ Built-in Safety - Safe Torque Off (STO) function (SIL3/PL e certified)
✔ Smart Cooling - Temperature-controlled fan with low noise operation
✔ Fieldbus Ready - Optional PROFIBUS DP, BACnet, Ethernet/IP adapters
✔ Robust Protection - Motor thermal, short-circuit, and phase-loss protection

Model Identification
ACS580: Series name

01: IP21 enclosure rating

039A: 39A output current

4: 400V voltage class (380-480V)

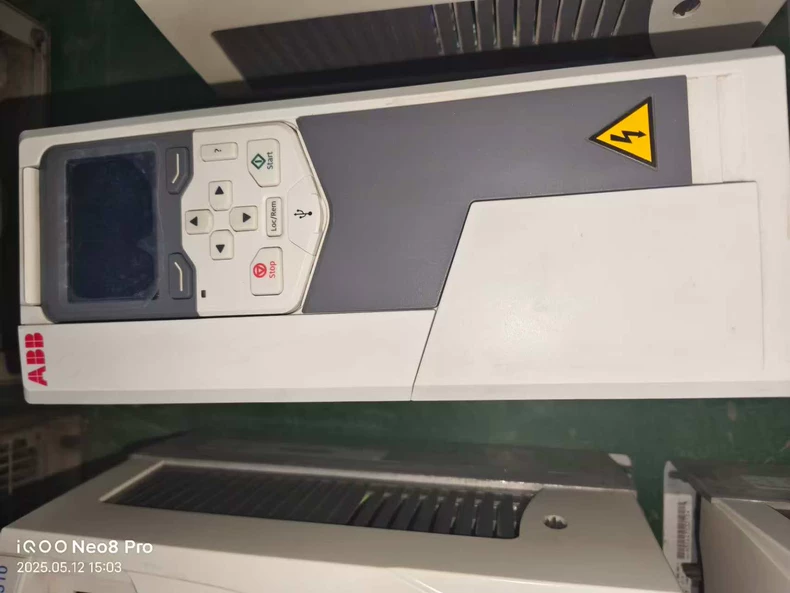

Key Specifications
Parameter Specification
Output Current 9.5A
Rated Power 4kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Flux-optimized V/f & DTC (Sensorless Vector)
Overload 150% for 60 seconds
Communication Modbus RTU (RS485) standard
Advanced Features
✔ Energy Saving Technology - Adaptive control reduces energy consumption by up to 30%
✔ User-Friendly Interface - ABB Assist Panel with plain-text parameter display
✔ Compact Design - Space-saving dimensions (190 x 195 x 175mm)
✔ Integrated Safety - Safe Torque Off (STO) function (SIL3/PL e)
✔ Smart Cooling - Temperature-controlled fan operation
✔ Fieldbus Connectivity - Optional PROFIBUS DP, BACnet, Ethernet/IP adapters

Model Identification
ACS580: Series designation

01: IP21 enclosure rating

09A5: 9.5A output current (4kW power class)

4: 400V voltage class (380-480V)

Key Specifications
Parameter Specification
Output Current 26A
Rated Power 11kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Flux-optimized V/f & DTC (Sensorless Vector)
Overload 150% for 60 seconds
Communication Modbus RTU (RS485) standard
Advanced Features
✔ Energy Optimization - Adaptive programming reduces energy consumption by 20-50%
✔ Intuitive Control - ABB Assist Panel with plain-text parameter interface
✔ Built-in Safety - Safe Torque Off (STO) function (SIL3/PL e certified)
✔ Smart Cooling - Temperature-controlled fan with low noise operation
✔ Fieldbus Ready - Optional PROFIBUS DP, BACnet, Ethernet/IP adapters
✔ Robust Protection - Motor thermal, short-circuit, and phase-loss protection

Model Identification
ACS580: Series name

01: IP21 enclosure rating

026A: 26A output current

4: 400V voltage class (380-480V)

Key Specifications
Parameter Specification
Output Current 4A
Rated Power 1.1kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Flux-optimized V/f & DTC (Sensorless Vector)
Overload 150% for 60 seconds
Communication Modbus RTU (RS485) standard
Key Features
✔ Energy Optimization - Automatic motor adaptation reduces energy consumption by up to 30%
✔ Intuitive Operation - ABB Assist Panel with plain-text parameter names
✔ Compact Design - Space-saving dimensions (155 x 190 x 175mm)
✔ Built-in Safety - Safe Torque Off (STO) function (SIL3/PL e)
✔ Fieldbus Ready - Optional PROFIBUS DP, BACnet, Ethernet/IP adapters

Key Specifications
Parameter Specification
Output Current 46A
Rated Power 18.5kW (4-pole) / 22kW (2-pole)
Input Voltage 3-phase 380–480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis, panel-mountable)
Control Method Flux-optimized V/f & DTC (Sensorless Vector)
Overload 150% for 60 seconds
Communication Modbus RTU (RS485), optional fieldbus
Key Features
✔ Energy Optimization – Adaptive programming reduces energy consumption by up to 30% in pump/fan applications.
✔ User-Friendly Interface – Assist Panel with plain-text parameter names (no codes).
✔ Built-in Safety – Safe Torque Off (STO, SIL3/PL e) for emergency stops.
✔ Smart Cooling – Temperature-controlled fan (IP21) with low acoustic noise.
✔ Fieldbus Ready – Supports PROFIBUS DP, BACnet MS/TP, Ethernet/IP (via adapters).
✔ Robust Protection – Motor thermal protection, short-circuit, and phase-loss safeguards.

Model Number Breakdown
ACS580: Series (ABB’s general-purpose drive)

01: IP21 enclosure (basic protection)

046A: 46A output current

4: 400V voltage range (380–480V)

Key Specifications
Parameter Specification
Output Current 12A
Rated Power 5.5kW (400V, 4-pole motor)
Input Voltage 3-phase 380–480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis, panel-mountable)
Control Method Flux-optimized V/f & DTC (Sensorless Vector)
Overload 150% for 60 seconds
Communication Modbus RTU (RS485), optional fieldbus
Key Features
✔ Energy-Saving Control – Automatic motor adaptation reduces energy consumption by up to 30% in pump/fan applications.
✔ Intuitive Operation – Assist Panel with plain-text parameter names (no codes).
✔ Built-in Safety – Safe Torque Off (STO, SIL3/PL e) for emergency stops.
✔ Smart Cooling – Temperature-controlled fan (IP21) with low acoustic noise.
✔ Fieldbus Ready – Supports PROFIBUS DP, BACnet MS/TP, Ethernet/IP (via adapters).
✔ Robust Protection – Motor thermal protection, short-circuit, and phase-loss safeguards.

Model Number Breakdown
ACS580: Series (ABB’s general-purpose drive)

01: IP21 enclosure (basic protection)

12A7: 12A output current, 5.5kW power class

4: 400V voltage range (380–480V)
