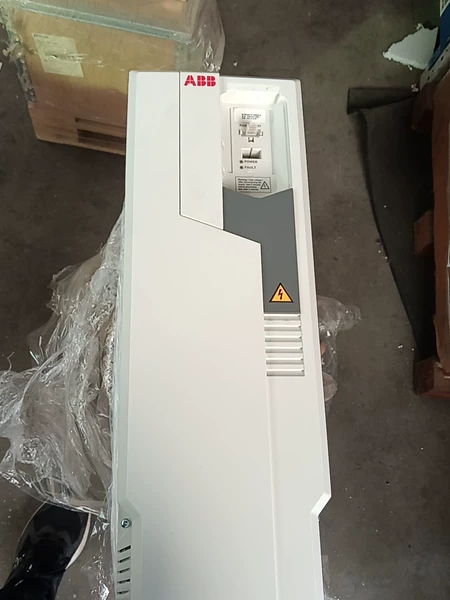

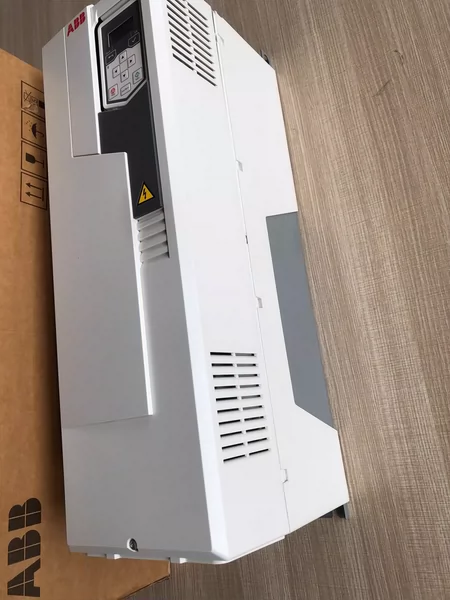

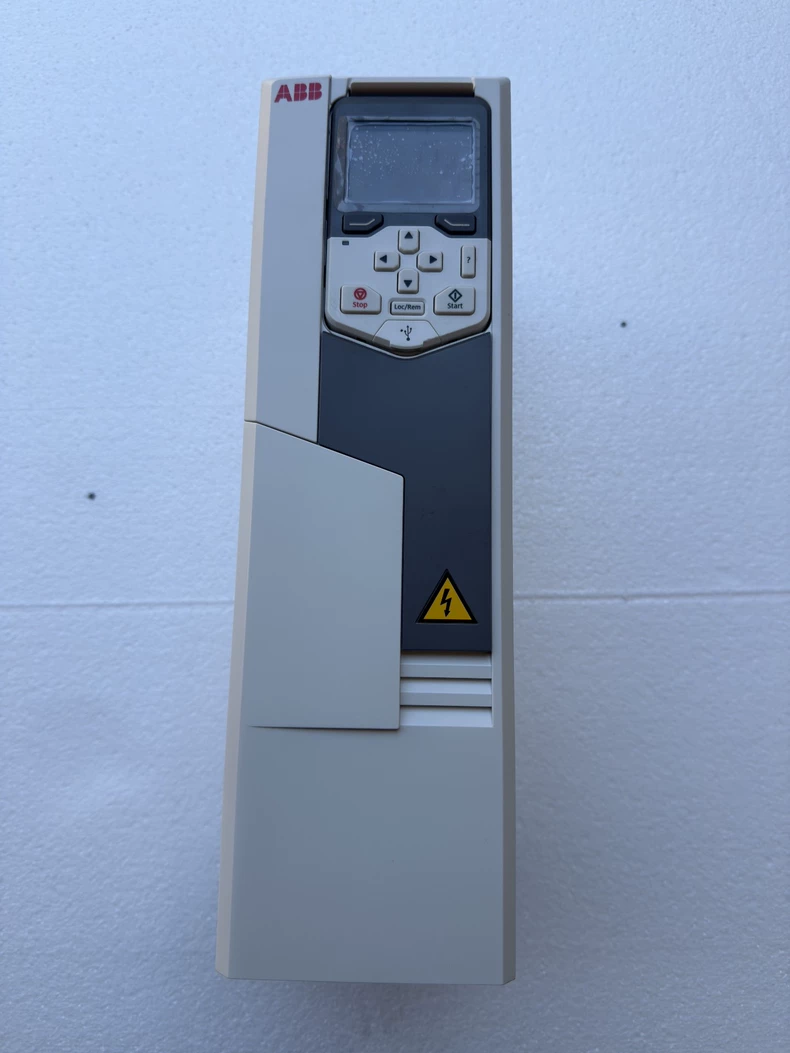

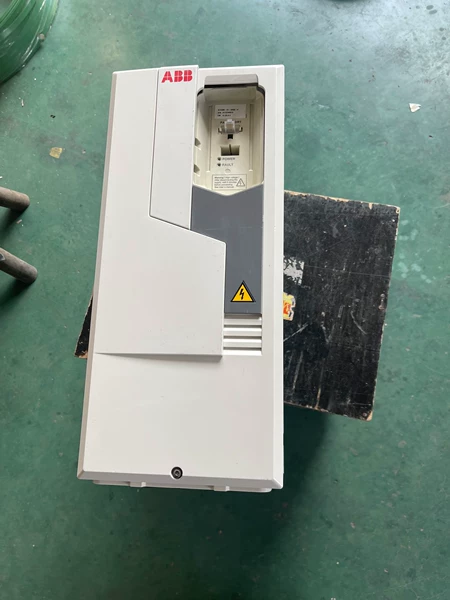

General Parameters:
Model: ACS580-01-039A-4

Rated Power: 18.5 kW (25 HP)

Output Current: 39 A

Supply Voltage: 3-phase, 380–480 V AC (±10%)

Frequency Range: 48–63 Hz

Control Method: Sensorless Vector Control (DTC optional)

Enclosure: IP21 (standard), IP55 (optional)

Cooling Method: Air-cooled

Performance Features:
Speed Range: 1:10 (sensorless), 1:100 (with encoder)

Starting Torque: 150% at 0.5 Hz (sensorless)

Overload Capacity: 110% continuous, 150% for 60 sec

Switching Frequency: Default 4 kHz (adjustable up to 12 kHz)

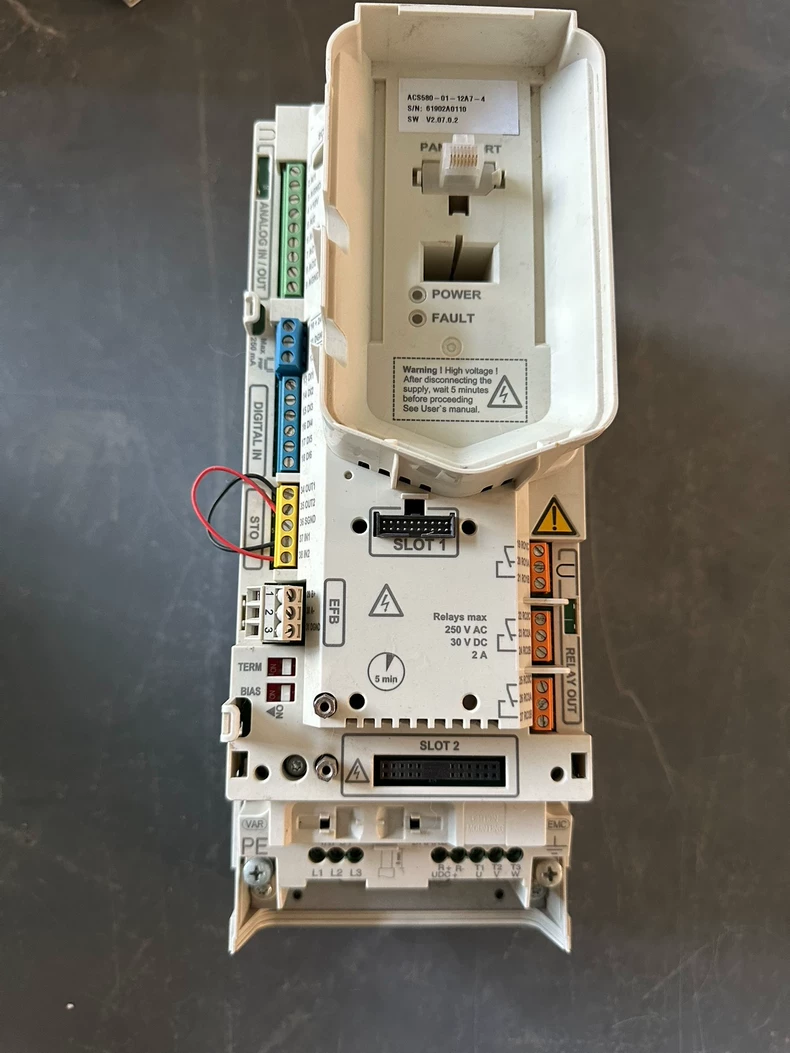

Input/Output (I/O):
Digital Inputs: 6 (24 V DC, programmable)

Analog Inputs: 2 (0/4–20 mA or 0–10 V)

Relay Outputs: 2 (programmable, 250 V AC/30 V DC)

Analog Output: 1 (0/4–20 mA or 0–10 V)

Communication Options:
Built-in Protocols: Modbus RTU, BACnet MS/TP, Metasys N2

Optional Fieldbus: Profibus DP, Ethernet/IP, Modbus TCP/IP (via add-on modules)

Protection & Safety:
Protections: Overcurrent, overvoltage, undervoltage, motor overload, short circuit, ground fault, etc.

Safety Features: Safe Torque Off (STO) (optional)

Dimensions & Weight:
Width/Height/Depth: ~200 x 380 x 210 mm (varies by enclosure)

Weight: ~10–12 kg (depends on options)

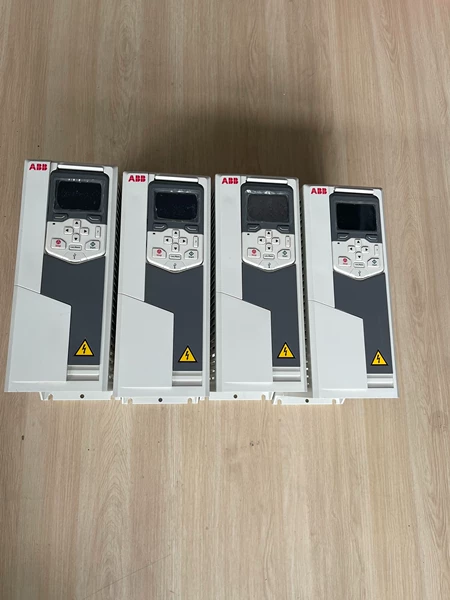

Key Specifications
Output Current: 33A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 15kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >98% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Dimensions: 245 × 405 × 220mm (W×H×D)

Advanced Features
✔ Precision Control:

±0.2% speed accuracy (sensorless vector control)

Built-in PID controller for process automation

Automatic energy optimization (reduces power consumption by up to 50% in variable torque applications)

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus DP, Ethernet/IP, DeviceNet)

2 analog inputs (0-10V/4-20mA) + 3 digital inputs

2 relay outputs for fault/status signals

✔ Protection & Safety:

Motor thermal protection (PTC support)

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional safety function)

Certifications & Compliance
CE, UL, cULus

IEC 61800-5-1 (safety standards)

RoHS & REACH compliant

Key Specifications
Output Current: 18A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 7.5kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >98% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Dimensions: 245 × 405 × 220mm (W×H×D)

Advanced Features
✔ Precision Control:

±0.2% speed accuracy (sensorless vector control)

Built-in PID controller for process automation

Automatic energy optimization (reduces power consumption by up to 50% in pump/fan apps)

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus DP, Ethernet/IP, DeviceNet)

2 analog inputs (0-10V/4-20mA) + 3 digital inputs

2 relay outputs for fault/status signals

✔ Protection & Safety:

Motor thermal protection (PTC support)

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional safety function)

Certifications & Compliance
CE, UL, cULus

IEC 61800-5-1 (safety standards)

RoHS & REACH compliant

Technical Specifications:

Output Current: 12.7A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 5.5kW (at 400V)

Control Method: Advanced Flux-optimized DTC

Overload Capacity: 110% continuous, 150% for 60s

Efficiency: >98% (typical)

Enclosure Rating: IP21 (NEMA 1)

Cooling Method: Intelligent fan cooling

Operating Temperature: 0°C to +40°C (50°C with derating)

Dimensions: 245 × 405 × 220mm (W×H×D)

Key Features:
✔ Superior Control Performance:

±0.2% speed control accuracy

Built-in adaptive PID controller

Automatic energy optimization

✔ Enhanced Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus modules (Profibus, Ethernet/IP)

2 analog inputs (0-10V/4-20mA)

3 digital inputs, 2 relay outputs

✔ Comprehensive Protection:

Motor thermal monitoring

Overcurrent/voltage protection

Short-circuit protection

Optional STO safety function

Certifications & Compliance:

CE, UL, cULus listed

IEC 61800-5-1 compliant

RoHS compliant

Key Specifications
Output Current: 9.5A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 4kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >98% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Dimensions: 172 × 245 × 195mm (W×H×D)

Advanced Features
✔ Precision Control:

±0.2% speed accuracy (sensorless vector control)

Built-in PID controller for process automation

Automatic energy optimization (reduces power consumption)

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus DP, Ethernet/IP)

2 analog inputs (0-10V/4-20mA) + 3 digital inputs

2 relay outputs for status/control

✔ Protection & Safety:

Motor thermal protection (PTC thermistor support)

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional for safety compliance)

Certifications & Compliance
CE, UL, cULus

IEC 61800-5-1 (safety standards)

RoHS & REACH compliant

Technical Specifications:

Output Current: 7.3A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 3kW (at 400V)

Control Technology: Flux-optimized DTC

Overload Capacity: 110% continuous, 150% for 60 seconds

Efficiency: Up to 98%

Enclosure Rating: IP21 (NEMA 1)

Cooling Method: Intelligent fan cooling

Operating Temperature: 0°C to +40°C (50°C with derating)

Dimensions: 172 × 245 × 195mm (W×H×D)

Key Features:
✔ Advanced Control Capabilities:

±0.2% speed control accuracy

Built-in PID controller with autotuning

Energy optimization mode

✔ Enhanced Connectivity:

Standard Modbus RTU protocol

Optional fieldbus adapters (Profibus DP, Ethernet/IP)

2 analog inputs (configurable 0-10V/4-20mA)

3 digital inputs, 2 relay outputs

✔ Comprehensive Protection:

Motor thermal protection

Overcurrent/voltage protection

Ground fault detection

Optional Safe Torque Off (STO)

Certifications & Standards:

CE, UL, cULus certified

IEC 61800-5-1 compliant

RoHS compliant

Technical Specifications:

Output Current: 5.7A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 2.2kW (at 400V)

Control Method: Advanced Flux-optimized DTC

Overload Capacity: 110% continuous, 150% for 60s

Efficiency: >97.5% (typical)

Enclosure: IP21 (NEMA 1)

Cooling: Intelligent fan cooling

Operating Temp: 0°C to +40°C (50°C with derating)

Dimensions: 172 × 245 × 195mm (W×H×D)

Key Features:
✔ Enhanced Control Performance:

±0.5% speed control accuracy

Built-in PID controller

Automatic energy optimization

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus modules (Profibus, Ethernet)

2× analog inputs (0-10V/4-20mA)

3× digital inputs, 2× relay outputs

✔ Robust Protection:

Motor thermal monitoring

Overcurrent/voltage protection

Short-circuit protection

Optional STO safety function

Certifications & Compliance:

CE, UL, cULus listed

IEC 61800-5-1 compliant

RoHS compliant

Technical Specifications:

Output Current: 4.1A

Voltage Range: 380-480V AC (±10%), 3-phase

Power Rating: 1.5kW (at 400V)

Control Method: Flux-optimized DTC control

Overload Capacity: 110% continuous, 150% for 60 seconds

Efficiency: >97% (typical)

Enclosure Rating: IP21 (NEMA 1)

Cooling Method: Fan cooled

Operating Temperature: 0°C to +40°C (full output), up to +50°C with derating

Dimensions: 172 x 245 x 195mm (WxHxD)

Key Features:
✔ Intuitive Operation:

Built-in multilingual control panel with LCD display

Assisted start-up wizard for easy commissioning

Parameter copy function between drives

✔ Flexible Connectivity:

Standard Modbus RTU communication

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog inputs (0/4-20mA or 0-10V)

3 digital inputs, 2 relay outputs

✔ Comprehensive Protection:

Motor thermal protection

Overcurrent/overvoltage protection

Earth fault detection

Short circuit protection

Certifications & Compliance:

CE, UL, cUL

RoHS compliant

Meets IEC 61800-5-1 safety standards

Key Specifications
Output Current: 3.4A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 1.1kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >97% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Advanced Features
✔ User-Friendly Operation:

Built-in LCD control panel (multilingual interface)

Assisted start-up wizard for quick commissioning

Copy function for easy parameter transfer

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog & 3 digital inputs, 2 relay outputs

✔ Protection & Safety:

Motor thermal protection

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional)

Certifications & Compliance
CE, UL, cULus

RoHS compliant

IEC 61800-5-1 (safety standards)

Key Specifications
Output Current: 2.7A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Rating: 0.75kW (at 400V)

Control Method: Flux-optimized DTC (Direct Torque Control)

Overload Capacity: 110% continuous, 150% for 60 sec

Efficiency: >97% (typical)

Enclosure Rating: IP21 (NEMA 1, fan-cooled)

Operating Temp: 0°C to +40°C (up to +50°C with derating)

Advanced Features
✔ User-Friendly Operation:

Built-in LCD control panel (multilingual interface)

Assisted start-up wizard for quick commissioning

Copy function for easy parameter transfer

✔ Smart Connectivity:

Standard Modbus RTU (RS-485)

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog & 3 digital inputs, 2 relay outputs

✔ Protection & Safety:

Motor thermal protection

Short-circuit & overvoltage protection

Safe Torque Off (STO, optional)

Certifications & Compliance
CE, UL, cULus

RoHS compliant

IEC 61800-5-1 (safety standards)
