Technical Specifications Category Specification Model 657-34 Type Pneumatic Spring-and-Diaphragm Linear Actuator Action Spring-Return (Single-Acting) Spring Code -34 Bench Setting The "-34" code corresponds to a specific air pressure range. A typical bench setting for a -34 spring is 3-15 psig, meaning the actuator starts moving at a low pressure (e.g., ~3 psig) and reaches full travel at 15 psig. Standard Stroke Available in various strokes (e.g., 3/4", 1-1/2", 2-1/2"). The specific stroke is defined by the full model number. Thrust Output The thrust is determined by the diaphragm size and the air pressure. The 657 series provides a range of thrust outputs for different valve sizes. Air Connection 1/4" NPT Diaphragm Material Nitrile (Buna-N) is standard. Yoke Material Cast Iron (standard) Temperature Limits Standard: -20°F to +180°F (-29°C to +82°C).

Parameters / Specifications Model: FISHER 657‑30 Actuator Type: Direct‑acting, spring‑oppose diaphragm actuator for sliding‑stem valve Actuation Mode: Spring return (fail‐safe) Signal Pressure Range: Typically 3–15 psig (0.2–1.0 bar) or 6–30 psig (0.4–2.0 bar) Effective Diaphragm Area (Size 30): Approx. 46 in² (≈297 cm²) Maximum Stem Travel (Size 30): Approx. 0.75 in (≈19 mm) Maximum Output Thrust (Size 30): Approx. 2,300 lb (≈10,230 N) Operating Temperature Range (Standard Construction with Nitrile Elastomers): Approx. –40 °F to +180 °F (≈ –40 °C to +82 °C) Construction Materials: Durable cast iron/steel body and spring case, molded diaphragm, corrosion‑resistant design Mounting: Integrated pad for digital positioner or valve controller attachment Approximate Weight (Actuator only, Size 30): ~36 lb (≈16 kg) Combined Valve Body/Actuator Usage: Size 30 suggests smaller valve body (e.g., 1.5″ flow size in some configurations)

Parameters / Specifications Model: Fisher 1052 Size 60 Actuation type: Spring‑return, rotary (diaphragm) Service: On/off or throttling for quarter‑turn valves Power source: Pneumatic Mounting adaptations: H and J styles available (for different shaft/coupling configurations) Output shaft diameters (H mounting) for size 60: 28.6 mm (1‑1/8 in) or 38.1 mm (1‑1/2 in) Torque limits (H mounting) for size 60: up to 10,680 in‑lb (~1,206 N·m) Mounting adaptation J coupling torque limits for size 60 vary by shaft diameter (up to ~12,000 in‑lb for certain keyed shafts) Actuator sizes: 60 is one of the larger sizes in the 1052 line (other sizes include 40, 70) Operating temperature: Standard temperature service (depending on elastomer/diaphragm materials) Features: Splined output shaft/lever linkage to minimize lost motion, adjustment via turnbuckle, optional travel stops, manual hand wheel option, mounting pad for positioner Control type: Compatible with on/off or throttling control, when used with a positioner or direct pneumatic signal Valve type compatibility: Ball valve, butterfly valve, eccentric plug valve, triple‑offset valve pproximate weight: Varies significantly depending on size and options; for size 60 actuation portion alone the weight is substantial (tens of pounds) Certifications/standards: Available with CE/PED, ATEX, CUTR options depending on variant Travel: Nominal 90° rotation for standard quarter-turn, with adjustable stops for less or more rotation depending on valve design Pressure/Diaphragm information: The factory‑set spring and diaphragm pressure determine closing/opening signal pressure; typical diaphragm casing pressures for size 60 are around 0 to ~3.8 bar (~0‑55 psig) depending on configuration

Technical Specifications Category Specification Fisher Part Number RGASKET X252 Description Spiral-Wound Gasket Gasket Type Spiral-Wound Primary Application Fisher Control Valve Bonnet Flange & Body Flange Connections Pressure Class Suitable for ANSI Class 150, 300, 600, or higher. The exact class is defined by the gasket dimensions. Metallic Winding Material 304 Stainless Steel (standard), 316 Stainless Steel, or other alloys. Filler Material Flexible Graphite (for high-temperature service) or PTFE (for chemical service). Inner & Outer Ring Typically Carbon Steel or Stainless Steel. Dimensions Defined by the "X252" code, specifying the precise Inside Diameter (ID) and Outside Diameter (OD).

Technical Specifications Category Specification Fisher Part Number RGASKET X362 Description Spiral-Wound Gasket Gasket Type Spiral-Wound Primary Application Fisher Control Valve Bonnet Flange & Body Flange Connections Pressure Class Suitable for ANSI Class 150, 300, 600, or higher. The exact class is defined by the gasket dimensions. Metallic Winding Material 304 Stainless Steel (standard), 316 Stainless Steel, or other alloys. Filler Material Flexible Graphite (for high-temperature service) or PTFE (for chemical service). Inner & Outer Ring Typically Carbon Steel or Stainless Steel. Dimensions Defined by the "X362" code, specifying the precise Inside Diameter (ID) and Outside Diameter (OD).

Technical Specifications Category Specification Fisher Part Number RGASKET X212 Description Spiral-Wound Gasket Gasket Type Spiral-Wound Primary Application Fisher Control Valve Bonnet Flange & Body Flange Connections Pressure Class Suitable for ANSI Class 150, 300, 600, or higher. The exact class is defined by the gasket dimensions. Metallic Winding Material 304 Stainless Steel (standard), 316 Stainless Steel, or other alloys. Filler Material Flexible Graphite (for high-temperature service) or PTFE (for chemical service). Inner & Outer Ring Typically Carbon Steel or Stainless Steel. Dimensions Defined by the "X212" code, specifying the precise Inside Diameter (ID) and Outside Diameter (OD).

Parameters / Specifications Model: RGASKET X202 Kit Type: Gasket replacement kit (multiple gaskets and sealing components) Compatible Valve / Trim Size: 3″ Type E (example configuration) Materials: Graphite/Inconel composite or similar sealing elements Temperature Rating: –325 °F to +1100 °F (≈ –198 °C to +593 °C) Components: Bonnet gasket – OD 5.16 inches Spiral gasket – OD 4.62 inches Seat‑ring gasket – OD 4.47 inches Shim – OD 4.66 inches Weight: Approx. 0.045 kg (varies depending on kit contents)

Specifications / Parameters Model: RGASKET X182 Application/Valve Type: Design E (E‑Body valve), 2″ size (Type E vapor/liquid service) Temperature Rating: From approx. –325 °F to +1100 °F (≈ –198 °C to +593 °C) Materials: Graphite/inconel composite sealing elements (gasket set) Contents: Kit includes bonnet gasket, spiral gasket, seat ring gasket, shims (for 2″ valve) Compatibility: Suitable for “E”, “ER”, “EZ‑2” and “EA 4×2” configurations (for 2″ size) Kit Weight: Approximately ~1 lb (≈ 0.45 kg) depending on packaging

Specifications / Parameters Model: R667X000402 Kit Type: Actuator repair kit (gaskets, o‑rings, seals) Compatible Actuator Sizes: Size 34 and Size 40 of the Fisher Type 667 actuator series Components Included: O‑rings + gasket/s (specific count depends on version) Recommended Application: Use when inspecting or rebuilding the actuator to ensure sealed performance Weight: approx. 0.15 lb (≈0.07 kg) in one listing Category: Gasket/repair kit for machine parts, actuator refurbishment

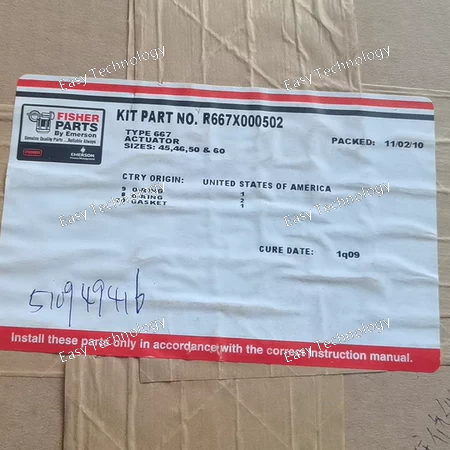

Technical Specifications Category Specification Model R667X000502 Valve Type Eccentric Rotary Control Valve Actuator Type Pneumatic Spring-Diaphragm Actuator (Size/Model: 667) Action Spring-Return (Single-Acting). Provides fail-safe operation (either air-to-open or air-to-close). Air Signal Standard 3-15 psig (0.2-1.0 bar). Travel Approximately 50 degrees of rotation (standard for eccentric plug valves). Body Style Angle Pattern Body (Standard for R/ET series). End Connections Flanged (The specific ANSI Class (e.g., 150, 300) and size are defined by the "X000502" code). Trim Characterization Eccentric Rotary Plug with approximately equal percentage flow characteristic. Trim Material Likely Stainless Steel (e.g., 316 SS) as standard. The exact material is defined by the "X000502" code. Leakage Class With metal seats, typically ANSI Class IV (0.01% of rated capacity).
