Key Parameters Category Description / Value Product Line Eaton EASY (Smart Relays) Series EASY600 Model / CPU EASY621 Power Supply DC (Typical rating: 24 V DC. Must be verified on the device). Integrated Function PID Temperature Controller (as indicated by "TC") Digital Inputs 8 Digital Outputs 6 (Typically relay outputs). Analog Inputs 2 for temperature sensors (e.g., thermocouple Type J/K). Analog Output 1 for the PID control output (e.g., 0-10V or 0/4-20mA). Programming Via EASY-SOFT software or directly on the device using the built-in display and buttons. Display Integrated LCD for showing values, status, and messages. Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Communication Optional communication modules (e.g., for Ethernet, AS-Interface, IO-Link) can be added.

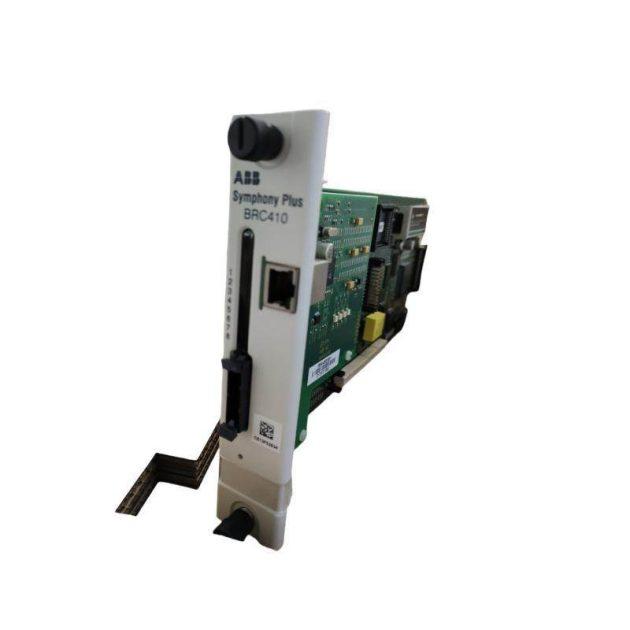

The ABB SPBRC410 Symphony Plus Bridge Controller is an advanced industrial automation component designed for seamless integration into complex control systems. It delivers exceptional performance and reliability in a wide range of applications, from manufacturing processes to power management solutions.

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PBSM Product Model PBSM-634/003-CN Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 400 V AC (Three-Phase + N) Protection Mode 3-Poles + Neutral (3P+N) (L1-PE, L2-PE, L3-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 34 kA per pole Nominal Discharge Current (In - 8/20 µs) 17 kA Voltage Protection Level (Up) ≤ 2.0 kV Response Time < 25 ns Backup Overcurrent Protection Required (specific rating per local regulations and installation manual) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Special Feature Thermal Disconnector Mounting DIN Rail Mounting (35 mm) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11, CCC
