Technical Parameters Parameter Category Description / Value Brand & Series Eaton, MFD Series Model Number MFD-CP8-NT Power Supply Voltage 24V DC (Typical for "C" variant) Output Relay DPDT (2 CO) - 2 Changeover contacts Contact Rating: Typically 8A @ 250V AC Timing Ranges Multiple ranges selectable (e.g., from 0.1 seconds up to 100 hours) Functions Multiple timing functions selectable (e.g., On-delay, Off-delay, Interval, Flasher, etc.) Accuracy ±0.5% of set time ± 20 ms Mounting DIN Rail (35mm) Display / Indication Digital Display and LED Status Indicators Standards Compliance IEC/EN 61812-1, UL 508, CSA C22.2 No. 14

Core Function:
High-sensitivity eddy current sensor for precision vibration and displacement monitoring in critical rotating equipment.

Key Specifications:
• Sensitivity: 14.0 mV/µm (-140 suffix)
• Range: 0-1.4mm (1400µm)
• Output: Linear -2 to -20V DC
• Bandwidth: 0-10kHz

Mechanical Features:
✓ 8mm probe diameter
✓ M10×1 threaded mounting
✓ -30°C to +120°C operation
✓ 20g vibration resistant

Typical Deployments:

Gas turbine shaft monitoring

Compressor axial position

Critical pump vibration analysis

System Integration:
• Direct compatibility with EPRO MMS6000 series
• Standard 5m/9m cable options
• CON021 quick-connect available

Compliance: API 670 machinery protection standard

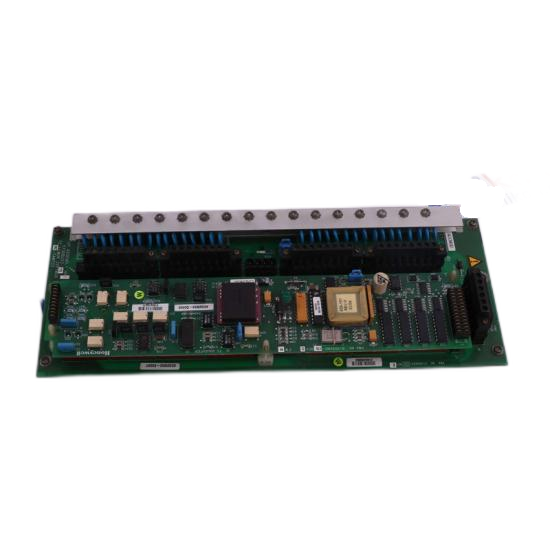

The Honeywell 8C-TAIM01 51306999-175 is a precision control module designed for advanced industrial automation systems. It excels in delivering high performance and reliability across various industrial applications.
