The SIEMENS 6ES7416-2FK04-0AB0 processor module is a core component in industrial automation systems, designed to provide high-speed processing capabilities and efficient control for complex manufacturing operations.

Key Specifications:

Power Rating: 0.37 kW (0.5 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz

Output Current: 1.6 A

Overload Capacity: 150% for 3 seconds

Control Method: Open-loop vector control

Switching Frequency: 2-16 kHz (adjustable)

Main Features:

Compact Design:

Ultra-compact IP20 enclosure

Built-in EMC filter (Class A)

Optional IP66/NEMA 4X protection kit available

Advanced Motor Control:

Sensorless vector control technology

Automatic motor adaptation (AMA)

Flying start function

Torque boost capability

Application Flexibility:

3 pre-programmed application macros

Customizable application programs

Built-in PID controller

Standard Interfaces:

Control Terminals:

2 analog inputs (0-10V/4-20mA)

4 digital inputs

1 relay output

1 analog output (0/4-20mA)

Communication Options:

Built-in Modbus RTU (RS485)

Optional fieldbus adapters:

PROFIBUS DP

DeviceNet

CANopen

Physical Characteristics:

Dimensions: 70 × 170 × 145 mm (W×H×D)

Weight: 0.7 kg

Cooling: Natural convection

Ambient Temperature Range: -10°C to +50°C (14°F to 122°F)

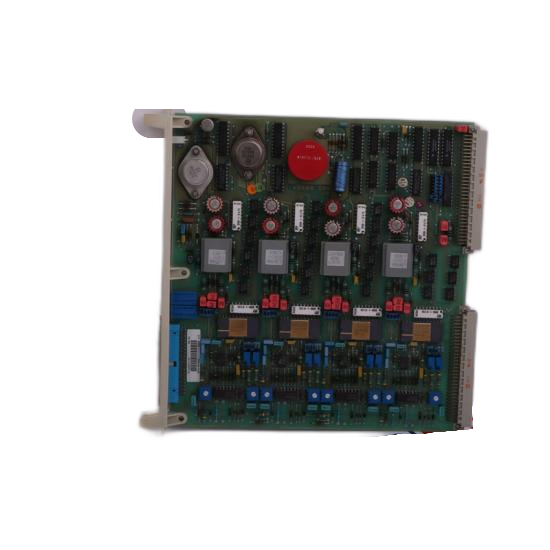

The ABB DSQC327 3HAB7230-1 Digital I/O Module is designed for seamless integration into industrial control systems, offering versatile digital input/output functionality to enhance system reliability and efficiency.
