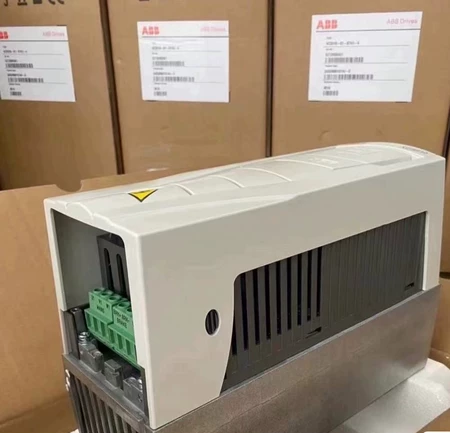

ABB ACS800-04-0030-3+D150+P901 Technical Parameters
1. Power Specifications
Rated Power: 30 kW (40 HP)

Input Voltage: 3-phase 380-500V AC (-15%/+10%)

Output Current: 60 A (continuous)

Overload Capacity:

110% continuous

150% for 60 sec

Efficiency: 98.5% (typical at full load)

2. Control Performance
Control Method: Direct Torque Control (DTC)

Speed Accuracy: ±0.01% of setpoint (encoderless)

Torque Accuracy: ±1% of rated torque

Switching Frequency: 1-4 kHz (adjustable)

3. Braking System (P901)
Brake Chopper: Integrated

Continuous Braking Power: 30 kW

Peak Braking Power: 45 kW (60 sec)

External Resistor Required: Yes

4. Control Panel (D150)
Display: 7" color TFT touchscreen

Languages: 20 pre-installed

Data Logging: 1000 events

Interface: USB for parameter transfer

5. Communication
Standard:

RS485 (Modbus RTU)

Ethernet (TCP/IP)

Optional Fieldbus:

PROFIBUS DP-V1

PROFINET IRT

EtherNet/IP

6. Protection Features
Electrical:

Short-circuit (IGBT protection)

Ground fault detection

DC bus monitoring

Thermal:

Motor thermal model

Heatsink temperature control

7. Physical Parameters
Dimensions (Drive): 482H × 245W × 227D mm

Weight: 32 kg (complete system)

Cooling: Forced air (filtered)

Ambient Temperature: 0-40°C (32-104°F)

8. Compliance Standards
Safety: SIL3/PL e (ISO 13849-1)

EMC: IEC 61800-3 Category C3

Certifications: CE, UL, cULus, DNV GL

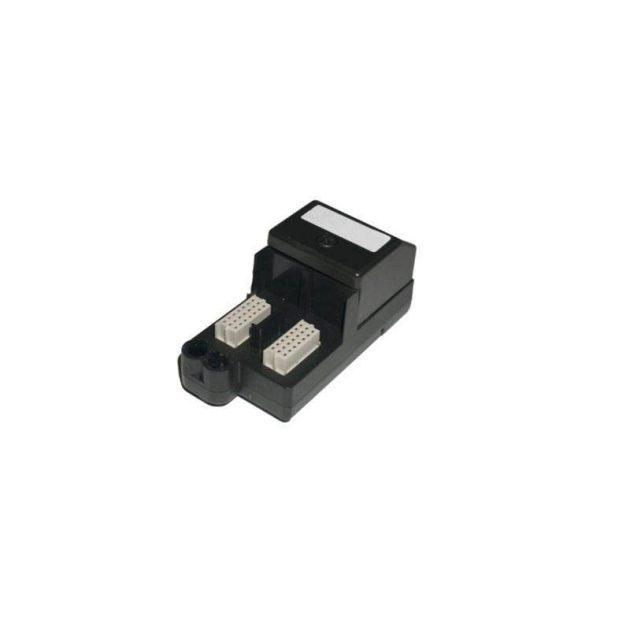

The Emerson KJ4001X1-CK1 terminal block is a robust industrial component designed for efficient electrical distribution in control systems, featuring high current capacity and enhanced safety measures.

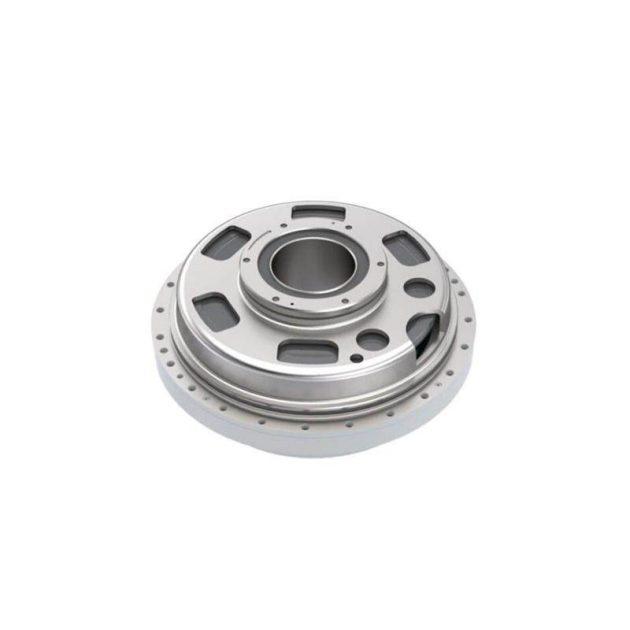

The ABB 3HAC022279-002 Industrial Gearbox is designed for superior performance in heavy-duty applications. Engineered with precision and durability, it ensures smooth operation and long-lasting reliability.
