Honeywell TC-CCN013 – Brief Description
Type: Communication Interface Module (for building automation systems)

Key Features:
Protocol Conversion: Enables C-Bus (Honeywell) to BACnet/IP communication

Seamless Integration: Compatible with Honeywell EBI, Niagara Framework

Standalone Operation: No additional controller required

LED Status Indicators: Real-time communication monitoring

Compact Design: DIN-rail mountable

Typical Applications:
✔ Legacy system upgrades (C-Bus to BACnet)
✔ HVAC control integration
✔ Building Management Systems (BMS)

Honeywell 51410056-175 – Brief Description
Type: Pressure Transmitter Module (Part of Honeywell's industrial sensing solutions)

Key Features:
Pressure Range: Customizable (refer to datasheet for specific range)

Output: Analog (4–20mA) or Digital (Modbus RTU, optional)

Accuracy: ±0.25% FS (typical)

Material: Stainless steel wetted parts (corrosion-resistant)

Process Connection: 1/2" NPT or G1/4 (varies by model)

Environment: IP65/IP67 rated (dust/water resistant)

Typical Applications:
✔ Hydraulic/pneumatic systems
✔ Industrial process control
✔ HVAC pressure monitoring

Honeywell TMS 9250 Series – Brief Description
Type: Thermal Mass Flow Sensor & Transmitter
Applications: HVAC airflow monitoring, industrial gas flow measurement, and energy management.

Key Features:
Direct mass flow measurement (no pressure/temperature compensation needed)

High accuracy: ±1% of reading

Wide range: 0–25 to 0–150 SFPS (standard feet per second)

Multiple outputs: 4–20mA, Modbus RTU, BACnet MS/TP (optional)

Robust design: 316L stainless steel sensor, IP65/IP54 rated

Gas versatility: Pre-calibrated for air, CO₂, N₂, O₂, and more

Typical Uses:
✔ Air handling units (AHUs)
✔ Compressed air systems
✔ Combustion control

Honeywell PGM7360 Technical Specifications
General Information
Manufacturer: Honeywell (NOTIFIER Series)

Model: PGM7360

Type: Programmable Relay Module

Primary Use: Fire Alarm & Life Safety System Control

Electrical Specifications
Relay Type: 16 × Form-C (SPDT)

Contact Rating:

Resistive Load: 2A @ 30VDC / 1A @ 120VAC

Inductive Load: 0.5A @ 30VDC (UL Rating)

Max Switching Voltage: 30VDC / 120VAC

Relay Coil Power: 24VDC (supplied by fire panel)

Communication & Control
Compatible Systems:

NOTIFIER NFS2-3030, NFS-320, NCA-2, etc.

Supports CLIP (Classic Loop Interface Protocol)

Protocol Options:

Native NOTIFIER protocol (default)

BACnet MS/TP (requires optional interface module)

Control Modes:

Latching / Non-Latching

Synchronized or Independent relay operation

Mechanical & Environmental
Dimensions: 12.5" × 4.5" × 1.5" (318mm × 114mm × 38mm)

Mounting: DIN Rail (TS-35) or Panel Mount

Operating Temperature: -10°C to 55°C (14°F to 131°F)

Humidity: 10–93% non-condensing

Wiring & Terminals
Input Power: 24VDC (from fire control panel)

Terminal Type: Screw terminals (12–22 AWG)

Isolation: 1.5kV between relays and logic

Certifications & Compliance
UL Listed: UL 864 (9th Edition)

Standards: NFPA 72, EN 54

EMC: EN 61000-6-3/4

Key Features
✔ High-density relay module (16 relays in 1U space)
✔ Field-programmable via fire alarm panel
✔ LED per relay for visual status
✔ Fail-safe operation (configurable default state)

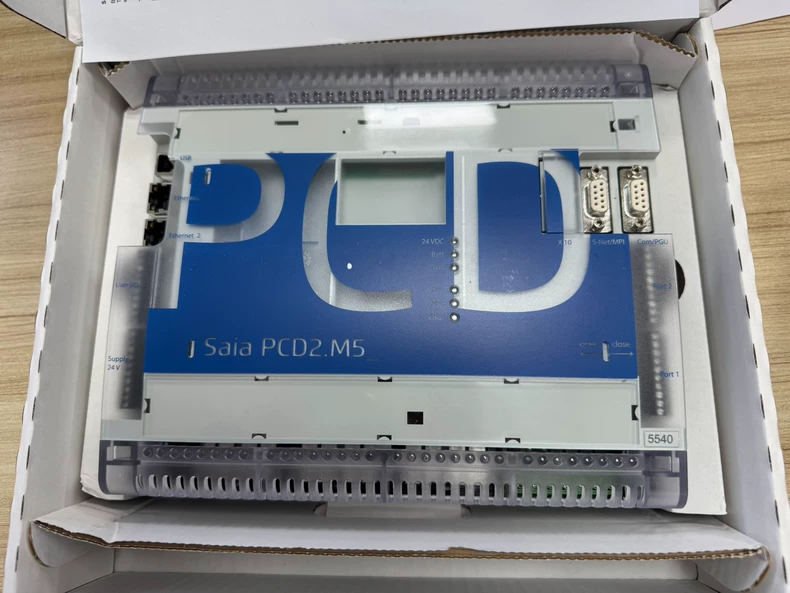

Honeywell SBC PCD2.M5540 Technical Specifications
General
Manufacturer: Honeywell Building Technologies

Model Type: Modular System Bus Controller (SBC)

Series: PCD (Programmable Control Device) Series

Primary Use: Advanced HVAC and building automation control

Hardware
Processor: 32-bit RISC CPU

Memory:

Flash Memory: 4MB (program storage)

RAM: 512KB (runtime data)

Communication Ports:

System Bus: 1× RS-485 (PCD bus for module expansion)

Field Bus: 1× RS-485 (BACnet MS/TP or Modbus RTU)

Service Port: 1× RS-232 (local configuration)

Expansion Capability: Supports up to 32 I/O modules

I/O Capabilities (with expansion modules)
Digital Inputs: Up to 256 points

Analog Inputs: Up to 128 points (0-10V, 4-20mA, etc.)

Digital Outputs: Up to 128 points (relay or triac)

Analog Outputs: Up to 64 points (0-10V, 4-20mA)

Software & Protocols
Programming: Honeywell CARE software

Supported Protocols:

BACnet MS/TP (B-ASC)

Modbus RTU

Honeywell PCD bus (for module communication)

Control Strategies: PID loops, scheduling, alarms

Performance
Program Capacity: Up to 500 control loops

Scan Rate: <100ms for critical I/O

Power & Environment
Power Supply: 24V AC/DC (±15%)

Power Consumption: 8W typical

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Humidity: 10-90% non-condensing

Physical Characteristics
Dimensions: 90mm × 110mm × 65mm (W×H×D)

Mounting: DIN-rail (TS-35)

Certifications
Safety: UL 916, EN 60730

EMC: EN 61000-6-2, EN 61000-6-3

BACnet: BTL Listed (BACnet Advanced Application Controller)

Key Features
Modular design for flexible I/O configuration

Native BACnet MS/TP support for BMS integration

Built-in PID control for HVAC applications

Field-upgradable firmware

LED status indicators for diagnostics

Honeywell FC-R/PB1 Technical Specifications
General
Manufacturer: Honeywell Building Technologies

Model Type: Pre-configured field controller (BACnet/IP + Modbus)

Primary Use: Building automation system integration (HVAC, lighting, energy)

Hardware
Processor: 32-bit ARM Cortex-based

Memory:

RAM: 128 MB (operational)

Flash Storage: 64 MB (for firmware/applications)

Ports:

Ethernet: 1× 10/100 Mbps (RJ45, BACnet/IP)

Serial: 1× RS-485 (Modbus RTU)

USB: 1× USB 2.0 (configuration only)

I/O Capacity:

Digital I/O: 8 configurable points

Analog Inputs: 4 (0-10V or 4-20mA)

Pulse Inputs: 2 (for energy meters)

Software & Protocols
Firmware: Honeywell proprietary (BACnet BTL certified)

Protocols:

BACnet/IP (B-AWS)

Modbus RTU (via RS-485)

Configuration Tools:

Honeywell EBI/Webs N4

CARE (Configuration And Reporting Engine)

Performance
Max Points: 128 software points

Scan Rate: <100ms for critical I/O

Power & Environment
Power Supply: 24V AC/DC (±10%)

Power Consumption: 5W typical

Operating Temp: -30°C to 70°C (-22°F to 158°F)

Humidity: 10-90% non-condensing

Certifications
Safety: UL 916, CE, FCC Part 15

BACnet: BTL Listed (BACnet Advanced Workstation)

RoHS: Compliant

Key Features
Out-of-box BACnet/IP readiness

Modbus RTU legacy device integration

DIN-rail mounting (compact 4-module width)

Secure communication (TLS/SSL optional)

JACE800 Technical Specifications
General
Manufacturer: Honeywell

Type: Field-programmable, modular smart controller

Primary Use: Building Automation System (BAS) integration (HVAC, lighting, security, etc.)

Hardware
Processor: High-performance ARM-based CPU

Memory:

RAM: 512 MB (expandable)

Flash Storage: 4 GB (for applications/logs)

Ports:

Ethernet: 2× 10/100 Mbps (RJ45)

Serial Ports: 2× RS-485 (for BACnet MS/TP, Modbus, etc.)

USB: 1× USB 2.0 (for configuration/maintenance)

Expansion Slots: Supports optional modules (e.g., LonWorks, Zigbee)

Software & Protocols
OS: Linux-based Niagara Framework (Tridium AX or N4 compatible)

Supported Protocols:

BACnet IP & MS/TP

Modbus RTU/TCP

LonWorks (optional)

OPC UA/DA

SNMP (for network monitoring)

MQTT (IoT/cloud connectivity)

Performance
Max Points Capacity: ~50,000 (varies with configuration)

Concurrent Users: Supports multiple operator workstations

Power & Environment
Power Supply: 24V AC/DC or PoE (Power over Ethernet)

Operating Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 10–90% non-condensing

Certifications
UL, CE, FCC, RoHS compliant

BACnet BTL Listed

Key Features
Scalable: Handles small to large buildings.

Cybersecurity: Role-based access, TLS/SSL encryption.

Edge-to-Cloud: Supports remote monitoring via Niagara N4.

Web8000
Industrial Web Inspection System

Core Features:

High-Speed Imaging: 16MP @ 200fps

Wide Coverage: Up to 8m web width

AI Defect Detection: Real-time flaw analysis

Key Benefits:
• μ-level accuracy (±0.1mm)
• Adaptive LED lighting
• Industry 4.0 ready (OPC UA)

SPMF-P1EU
Laser Particle Monitor

Core Features:

Measures: PM1/PM2.5/PM10 simultaneously

Laser Technology: High sensitivity detection

Output: Modbus RTU/PWM

ppbRAE 3000
Ultra-Precise VOC Analyzer

Core Features:

Detection Range: 1ppb–10,000ppm

MiniPID Sensor: Lab-grade accuracy

Wireless: Real-time Bluetooth data
