N3680SR-W1-TTL-01 Encoder - Product Brief
Core Description:
The N3680SR-W1-TTL-01 is a 1024 PPR rotary encoder with TTL output, designed for high-speed servo applications requiring ±0.1° accuracy.

Key Features:
✔ Precision Motion Control

8000 RPM max speed

1 pulse/rev index signal

RS422-compatible line driver

✔ Industrial Durability

IP65 aluminum housing

100G shock resistance

-20°C to +85°C operation

✔ Easy Integration

6mm solid shaft

Direct servo compatibility

Zero-position retention

Typical Applications:
• CNC Machine Tools
• Automated Assembly Robots
• Textile Machinery
• Printing Presses

Certifications:
CE, RoHS, EN 61800-5-1

Model Options:

HR: Hollow shaft variant

HT: High-temperature version

Technical Advantages:
→ 50M+ bearing cycles
→ NIST-traceable calibration available
→ 36-month warranty

SC105 Pressure Transmitter - Product Brief
Core Description:
The SC105 is a compact pressure transmitter delivering ±0.25% FS accuracy for 0-100 psi applications, featuring stainless steel construction and dual output options.

Key Features:
✔ Space-Saving Design

Φ32mm compact housing

G1/4" process connection

IP65 protection

✔ High-Performance

<5ms response time

3× overpressure protection

Laser-welded sensor

✔ Flexible Integration

4-20mA or 0-10V output

-20°C to +85°C operation

Direct PLC compatibility

Typical Applications:
• Mobile Hydraulic Systems
• Pneumatic Control Panels
• Pump Pressure Monitoring
• Industrial Automation

Certifications:
CE, RoHS, EN 61298-1

Model Options:

A: Absolute pressure

EX: Hazardous area

Technical Advantages:
→ NIST-traceable calibration
→ 36-month warranty
→ Custom range options

EDA51K-1R Displacement Sensor - Product Brief
Core Description:
The EDA51K-1R is a high-temperature displacement sensor with 0.1μm resolution, designed for precision measurement in environments up to 300°C.

Key Features:
✔ Extreme Environment Operation

Inconel 718 Probe

-40°C to +300°C Range

IP67 Protection

✔ Precision Measurement

±0.5% FS Accuracy

0.1μm Resolution

Analog/Digital Outputs

✔ Robust Construction

316L Stainless Steel Housing

10G Vibration Resistance

M8 Threaded Mounting

Typical Applications:
• Jet Engine Component Monitoring
• Industrial Furnace Controls
• Power Plant Turbine Systems
• Automotive Brake Testing

Certifications:
CE, RoHS, EN 61010-1

Model Options:

5R: Extended 5mm Range

EX: Hazardous Area Version

Technical Advantages:
→ NIST-Traceable High-Temp Calibration
→ 50G Shock Resistance
→ 24-Month Warranty

CK75 Proximity Sensor - Product Brief
Core Description:
The CK75 is a compact M18 inductive sensor with 4mm sensing range, designed for high-reliability metal detection in space-constrained industrial applications.

Key Features:
✔ Precision Detection

±0.01mm Repeatability

1kHz Switching Frequency

LED Status Indicator

✔ Industrial Durability

Nickel-Plated Brass Housing

IP67 Protection

-25°C to +70°C Operation

✔ Easy Integration

M18×1 Threaded Mounting

Short-Circuit Protection

Direct PLC Compatibility

Typical Applications:
• CNC Machine Limit Switches
• Automated Assembly Lines
• Material Handling Systems
• Injection Molding Machines

Certifications:
CE, RoHS, EN 60947-5-2

Model Options:

NPN Output Version Available

ATEX Certified Variant

Technical Advantages:
→ 10M+ Operation Cycles
→ EMI/RFI Immune Design
→ 36-Month Warranty

Kawasaki CT60 Industrial Robot – Brief Overview

The Kawasaki CT60 is a high-performance 6-axis articulated robot designed for heavy-duty industrial applications. With a 60 kg payload capacity and a reach of approximately 2,600 mm, it excels in tasks requiring precision and strength, such as material handling, palletizing, machine tending, and welding.

Key Features:

High repeatability (±0.07 mm) for precision operations.

Flexible mounting options (floor, wall, or ceiling).

Robust IP54-rated construction for durability in harsh environments.

Compatible with Kawasaki E/F/X series controllers for seamless integration.

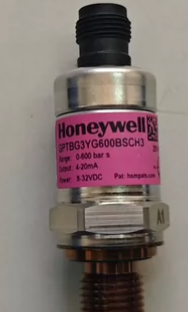

GPTBG3YG600BSCH3 Industrial Pressure Transmitter - Product Brief
Core Description:
The GPTBG3YG600BSCH3 is a high-performance 600 bar pressure transmitter featuring ±0.25% FS accuracy and HART®/Bluetooth® connectivity. Designed for critical industrial applications, its 316L stainless steel construction ensures reliability in extreme conditions.

Key Features:
✔ Precision Measurement

0-600 bar (8700 psi) range

<5ms response time

Multi-parameter LCD display

✔ Rugged Design

IP68 protection (submersible)

-40°C to +125°C operation

5G vibration resistance

✔ Smart Connectivity

4-20mA + HART® & RS-485

Wireless Bluetooth® configuration

SIL 2 functional safety

Typical Applications:
• Hydraulic system monitoring
• Oil & gas wellhead control
• Industrial test benches
• High-pressure processing

Certifications:
ATEX, IECEx, CE, RoHS

Model Options:

-EX: Hazardous area version

-HT: High-temp (200°C) variant

Technical Advantages:
→ 1.5x overpressure protection
→ NIST-traceable calibration
→ 5-year warranty

5180SF-1213A0R Pressure Sensor - Product Brief
Core Description:
The 5180SF-1213A0R is a stainless steel pressure sensor designed for harsh industrial environments. With ±0.5% FS accuracy and 0.5-4.5V ratiometric output, it provides reliable 0-12 psi measurement for fluids and gases.

Key Features:
✔ Robust Construction

17-4PH stainless steel wetted parts

IP65 protection

-40°C to +125°C operation

✔ Precision Performance

<2ms response time

Temperature compensated

3x burst pressure rating

✔ Easy Integration

1/4" NPT process connection

5V DC powered

Reverse polarity protection

Typical Applications:
• Hydraulic system monitoring
• Compressed air control
• Medical equipment
• Process automation

Certifications:
RoHS, REACH compliant

Model Options:

D0R: Digital I²C output

EX: ATEX certified version

Technical Advantages:
→ Laser-welded stainless steel
→ NIST-traceable calibration
→ 24-month warranty

DC1010CL-700000-E Encoder - Product Brief
Core Description:
The DC1010CL-700000-E is a 700k PPR hollow-shaft encoder delivering ±1 arc-second accuracy for ultra-precise motion control applications.

Key Features:
✔ Ultra-High Resolution

700,000 pulses/revolution

30-bit multi-turn absolute

10,000 RPM max speed

✔ Industrial Robustness

10mm hollow shaft

IP65 aluminum housing

-40°C to +100°C operation

✔ Advanced Interface

Differential RS422 output

Optional SSI/BiSS-C

Onboard diagnostics

Typical Applications:
• High-end CNC rotary axes
• Astronomical equipment
• Robotics precision joints
• Semiconductor wafer stages

Certifications:
CE, RoHS, EN 61800-5-1

Model Options:

EX: Hazardous area version

HT: Extended temperature

Technical Advantages:
→ 100G shock resistance
→ Zero-position retention
→ 5-year warranty

VUQUEST3310G Vision Sensor - Product Brief
Core Description:
The VUQUEST3310G is a 5MP smart vision sensor combining ±0.05% measurement accuracy with AI-based defect detection for automated quality control.

Key Features:
✔ Precision Imaging

30 fps @ 5MP resolution

0.05mm feature detection

Integrated RGB lighting

✔ Industrial AI

Pre-trained defect models

Edge computing capability

No PC required

✔ Rugged Design

IP67 aluminum housing

GigE PoE+ connectivity

4x DI/2x DO

Typical Applications:
• Electronics assembly
• Automotive welding inspection
• Food packaging seal check
• Medical device verification

Certifications:
CE, RoHS, FCC

Model Options:

HR: 10MP high-resolution

EX: Explosion-proof

Technical Advantages:
→ 3D measurement mode
→ Multi-sensor sync
→ 36-month warranty

TB1 Industrial Sensor - Technical Specifications
1. General Information
Model Number: TB1

Product Type: Temperature & Humidity Transmitter

Design Purpose: Environmental monitoring in industrial facilities

2. Key Performance Parameters
Temperature Range: -40°C to +85°C

Accuracy: ±0.3°C (temperature), ±2% RH (humidity)

Response Time: <15s (temperature), <30s (humidity)

Output Resolution: 0.1°C / 0.1% RH

3. Electrical Specifications
Power Supply: 24V DC (12-36V range)

Output Signal:

Analog: 4-20mA (dual-channel)

Digital: RS-485 Modbus RTU

Current Consumption: <25mA

4. Mechanical Specifications
Housing Material: ABS+PC (IP65)

Dimensions: 110×80×40mm

Weight: 230g

Mounting: DIN rail or wall mount

5. Environmental Ratings
Operating Range: -40°C to +85°C

Humidity Limits: 0-100% RH (non-condensing)

EMC Immunity: EN 61000-6-2

6. Special Features
Dual parameter measurement

LCD display with backlight

Programmable alarm thresholds

Auto-calibration function

7. Certifications & Compliance
Industry Standards: EN 60751 (Pt100)

Safety: EN 61010-1

Compliance: CE, RoHS

8. Application Scenarios
✔ HVAC system monitoring
✔ Clean room control
✔ Food storage facilities
✔ Pharmaceutical production

9. Model Variations
TB1-P: PoE version

TB1-W: Wireless (LoRaWAN)

TB1-EX: Hazardous area

10. Technical Notes
Includes NIST-traceable certificate

36-month warranty

Custom parameter sets available

Configuration Options:
[1] Compare with TB2 series
[2] Request API integration guide
[3] Get calibration protocol

Document Status:
Rev 1.5 | 2024-07-15
Specifications subject to change

This specification follows ISO 9001 and EN 60751 standards.
