The ABB 1SDA064796R1 SWITCH is a high-precision control module designed for industrial automation applications, ensuring seamless integration and enhanced operational efficiency.

Parameter Specification Manufacturer / Series Eaton / DG4V-3 Part Number / Model DG4V-3-2A-M-U-H7-60 Valve Type Solenoid Operated, Directional Control Valve Configuration 4-Port, 3-Position (4/3) Actuation Type Single Solenoid, Spring Offset Spool Type 2A (Defines the internal flow path geometry in the actuated position) Middle Position Closed Center (M) - In center position: All ports (P, T, A, B) are blocked. Mounting Style Subplate Mounting (ISO 4401-03 / CETOP 3 interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage -H7- typically denotes a 24V DC coil. Always confirm with supplier or datasheet. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 60 L/min (15.8 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Solenoid Characteristics Solenoid Type Wet Pin DC Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~2.0 kg (4.4 lbs) - (varies with coil and options)

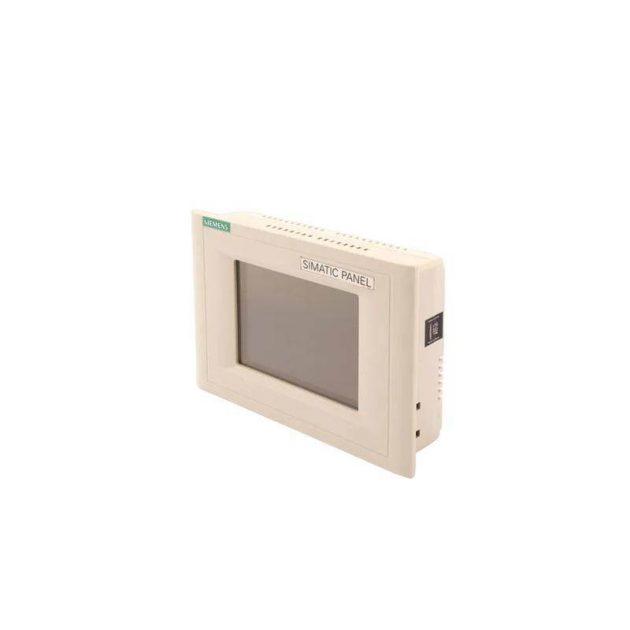

The SIEMENS 6AV6545-0BC15-2AX0 is a high-performance industrial control module designed for seamless integration into PROFINET communication networks. Ideal for manufacturing environments, it offers reliable data exchange capabilities, ensuring efficient automation processes.
