Key Specifications
Parameter Specification
Output Current 246A
Rated Power 132kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Sensorless Vector Control (SLVC)
Overload 110% for 60 seconds (heavy-duty rating)
Communication Modbus RTU standard + optional fieldbus
Technical Highlights
✔ High-Efficiency Design

98% typical efficiency at full load

Automatic energy optimization for variable torque loads

✔ Advanced Protection Features

I²t motor thermal protection

Built-in DC choke (harmonic mitigation)

Ground fault and short-circuit protection

✔ Industrial-Grade Construction

Reinforced cooling system with temperature-controlled fans

-10°C to +40°C operation (with derating above 40°C)

Compact footprint for power class (WxHxD: 350×450×250mm)

✔ Smart Control Capabilities

Built-in PID controller with auto-tuning

Customizable application macros

Predictive maintenance monitoring

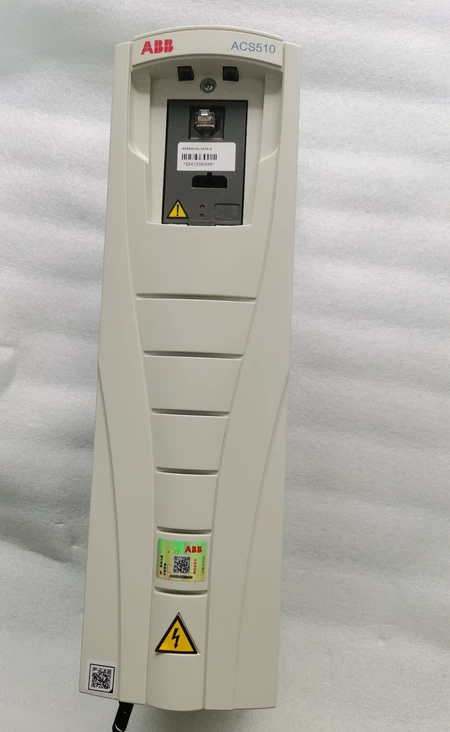

Key Specifications
Parameter Specification
Output Current 125A
Rated Power 55kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Sensorless Vector Control (SLVC) & V/f control
Overload 150% for 60 seconds
Communication Modbus RTU (RS485) standard
Advanced Features
✔ Energy Optimization Technology

Automatic load adaptation with up to 50% energy savings

ABB's proprietary Adaptive Programming for pumps and fans

✔ Robust Motor Protection

I²t thermal overload protection

Short-circuit, ground fault, and phase loss protection

Motor stall prevention

✔ Intelligent Control Interface

LCD keypad with 8 language options

Quick start-up wizard with application macros

✔ Process Control Capabilities

Built-in PID controller with auto-tuning

Customizable acceleration/deceleration ramps

✔ Industrial-Grade Design

Compact dimensions: 255 x 245 x 220mm (WxHxD)

Wide operating temperature: -10°C to +50°C

Forced cooling with temperature-controlled fan

Model Number Breakdown
ACS510: Series designation

01: IP21 protection level

125A: 125A output current rating

4: 400V voltage class (380-480V)

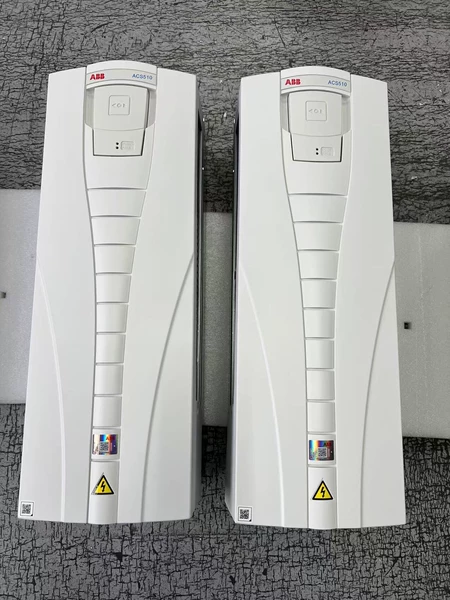

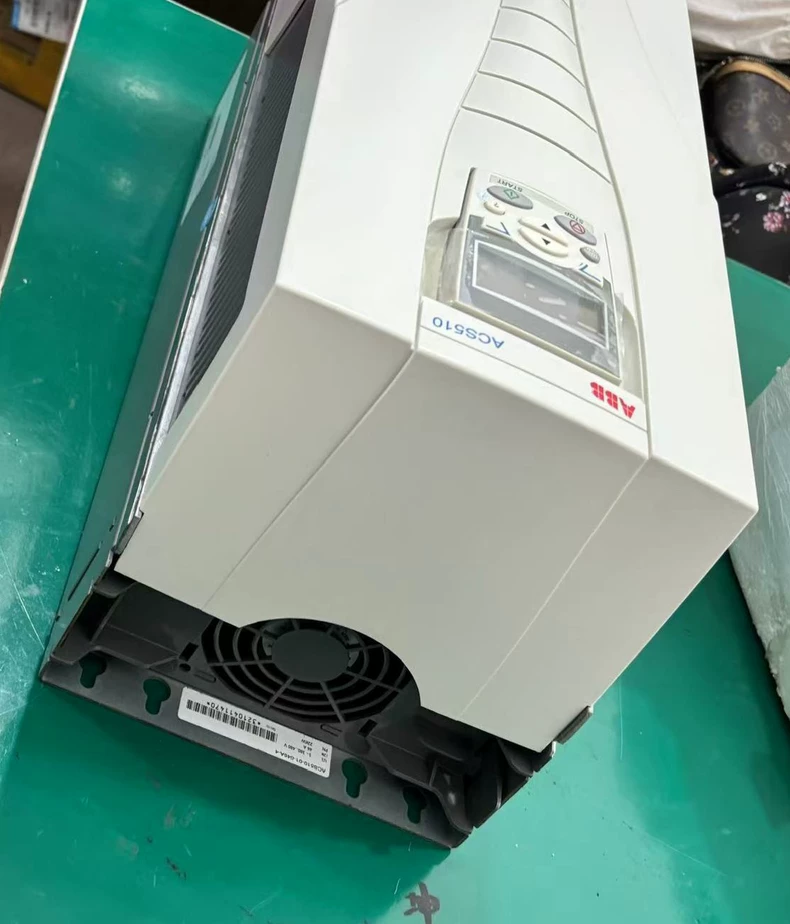

Key Specifications
Parameter Specification
Output Current 25A
Rated Power 11kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Sensorless Vector Control (SLVC) & V/f control
Overload 150% for 60 seconds
Communication Modbus RTU (RS485) standard
Advanced Features
✔ Energy-Saving Optimization

Automatic adaptation to load changes

Up to 50% energy reduction in variable torque applications

✔ Comprehensive Motor Protection

Thermal overload protection (I²t monitoring)

Short-circuit, phase loss, and ground fault protection

✔ User-Friendly Interface

LCD keypad with multilingual support (8 languages)

Quick start-up wizard for fast commissioning

✔ Integrated Process Control

Built-in PID controller for pressure/flow/temperature regulation

Customizable application macros

✔ Compact & Robust Design

Dimensions: 198 x 145 x 175mm (WxHxD)

Operating temperature: -10°C to +50°C

Model Number Decoding
ACS510: Series name (ABB's general-purpose drives)

01: IP21 enclosure rating

025A: 25A output current

4: 400V voltage class (380-480V)

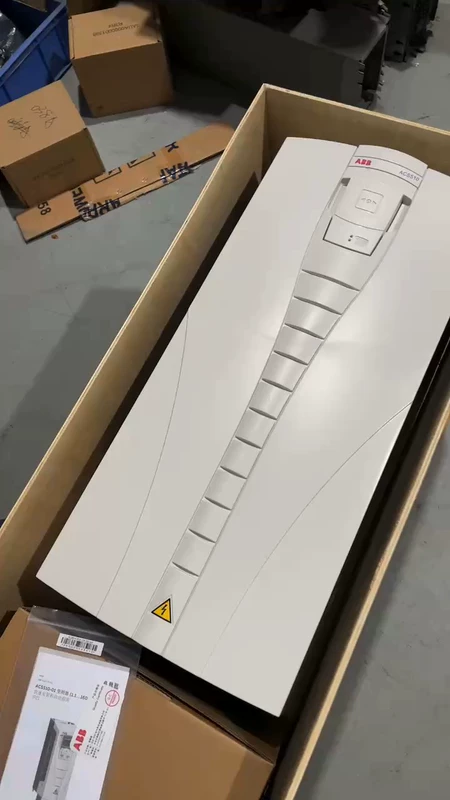

Technical Specifications
Parameter Specification
Output Current 72A
Rated Power 37kW (400V 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Sensorless Vector Control (SLVC) & V/f control
Overload 150% for 60 seconds
Communication Modbus RTU (standard), optional fieldbus
Key Features
✔ Energy Optimization

Automatic adaptation to load changes

Energy savings up to 50% in pump/fan applications

✔ Advanced Motor Protection

Thermal overload protection (I²t)

Short-circuit, ground fault, and phase loss protection

✔ User-Friendly Operation

LCD keypad with multilingual interface

Quick start-up wizard

✔ Process Control

Built-in PID controller

Customizable application macros

✔ Compact & Robust

Space-saving design (220 x 190 x 195mm)

-10°C to +50°C operating range

Model Number Breakdown
ACS510: Series name

01: IP21 enclosure

072A: 72A output current

4: 400V voltage class

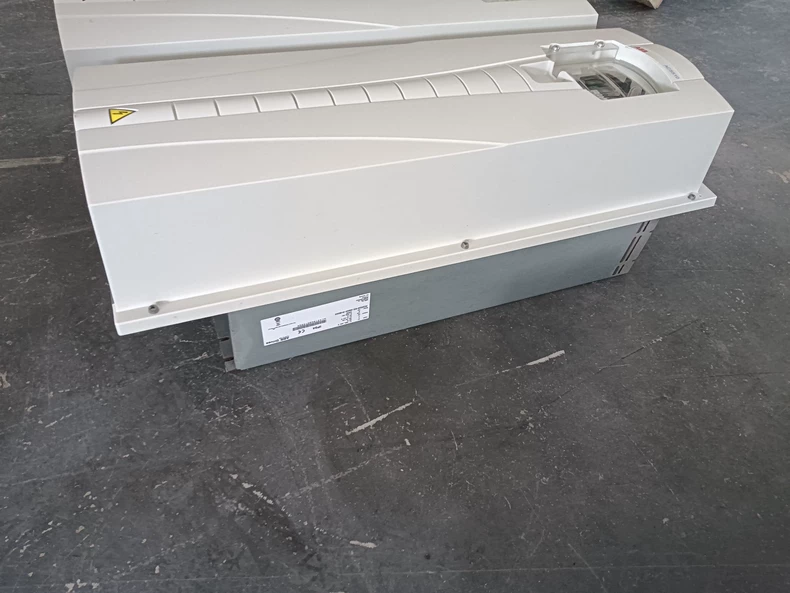

Key Specifications
Parameter Specification
Output Current 180A
Rated Power 90kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Overload 150% for 60 seconds
Control Flux-optimized V/f & DTC (Optional)
Advanced Features
✔ Dynamic Motor Control - Optional Direct Torque Control (DTC) for superior low-speed performance
✔ Heavy-Duty Design - Industrial-grade components for 24/7 operation
✔ Smart Cooling - Temperature-controlled fan with dust-proof design
✔ Multi-Protocol Support - Built-in Modbus RTU + optional fieldbus cards (PROFIBUS, DeviceNet)
✔ Advanced Sequencing - Built-in PLC functionality with 3 programmable macros

Technical Highlights
Application-Specific Profiles: Pre-configured for pumps, fans, conveyors, and cranes

Harmonic Mitigation: Optional DC choke or line filter available

Safety: STO (Safe Torque Off) compliant

Environmental: Operates at -15°C to +50°C (with derating)

Model Designation
ACS550: ABB's industrial drive series

01: IP21 enclosure (NEMA 1 equivalent)

180A: 180A output current

4: 400V voltage class

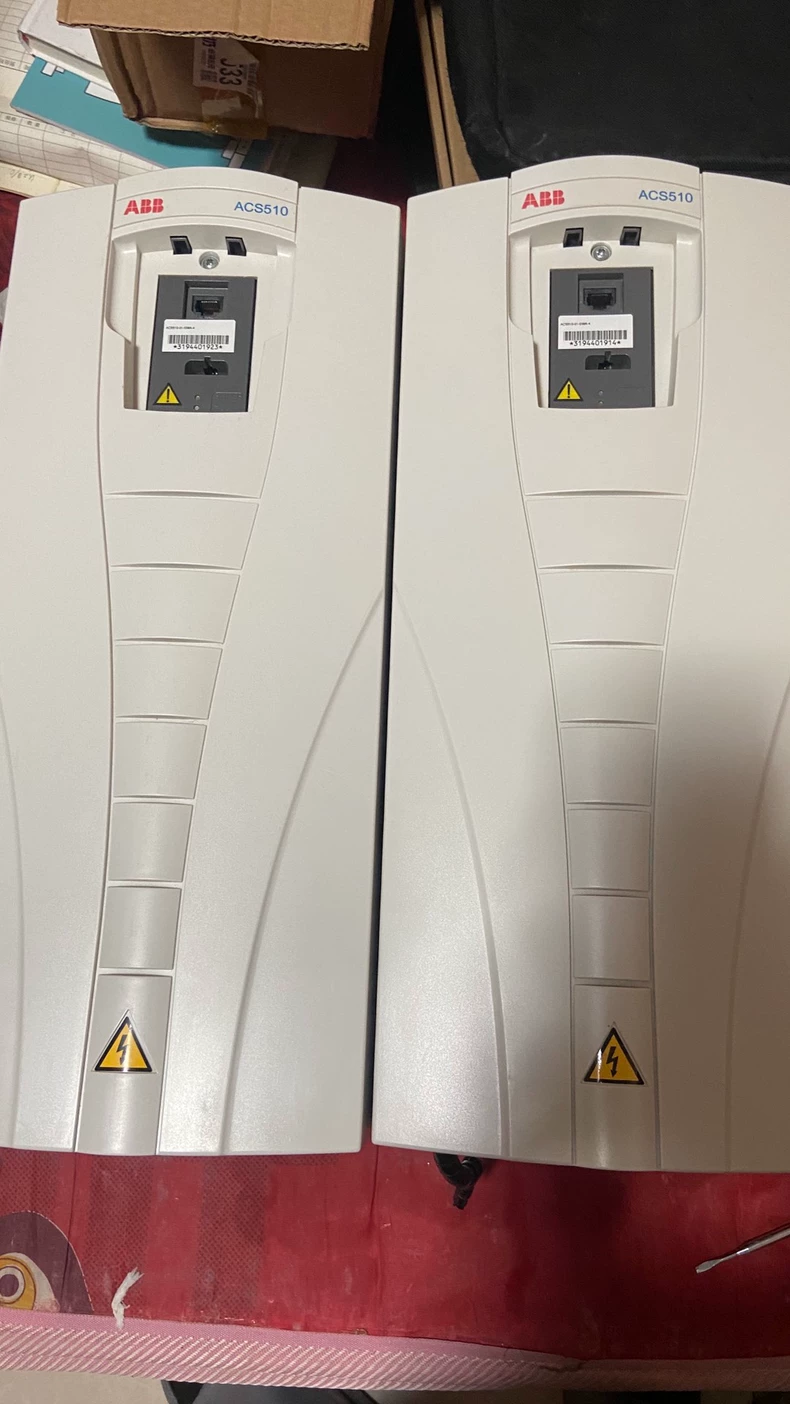

Key Specifications:

Output Current: 46A

Rated Power: 22kW (for 400V 4-pole motor)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Enclosure Rating: IP21 (open chassis)

Control Methods: Sensorless Vector Control (SLVC) & V/f control

Overload Capacity: 150% for 60 seconds

Communication Protocol: Built-in Modbus RTU (RS485)

Advanced Features:

Energy Optimization: Automatic adaptation to load changes for maximum efficiency in variable torque applications

Intelligent Motor Protection: Comprehensive safeguards including thermal overload, short-circuit, and phase-loss protection

User-Friendly Interface: LCD keypad with multilingual support (8 languages) and quick-start wizard

Integrated PID Controller: Enables precise process control for pressure, flow, and temperature regulation

Compact Design: Space-efficient footprint for cabinet installation

Fieldbus Connectivity: Supports optional PROFIBUS DP and BACnet modules

Model Number Decoding:

ACS510: Series designation

01: IP21 enclosure type

046A: 46A output current rating

4: 400V voltage class (380-480V)

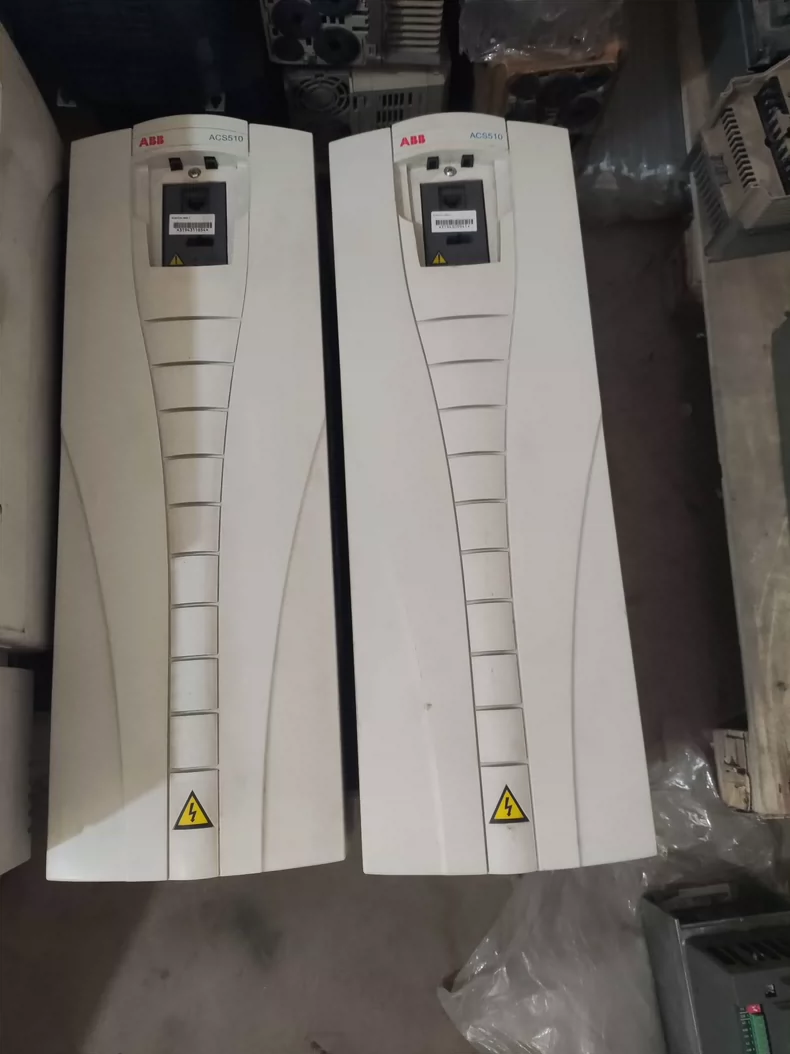

Technical Specifications
Parameter Specification
Output Current 17A
Rated Power 7.5kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Sensorless Vector Control (SLVC) & V/f control
Overload 150% for 60 seconds
Communication Built-in Modbus RTU (RS485)
Key Features
✔ Energy Optimization - Automatic energy-saving algorithm for pumps and fans
✔ Advanced Protection - Motor thermal protection, short-circuit, and phase loss safeguards
✔ User-Friendly Interface - LCD keypad with multilingual support (8 languages)
✔ Integrated PID Controller - For closed-loop process control
✔ Compact Design - Space-saving for easy cabinet installation
✔ Fieldbus Options - Supports PROFIBUS DP and BACnet via optional modules

Model Number Breakdown
ACS510: Series name

01: IP21 enclosure

017A: 17A output current

4: 400V class (380-480V)

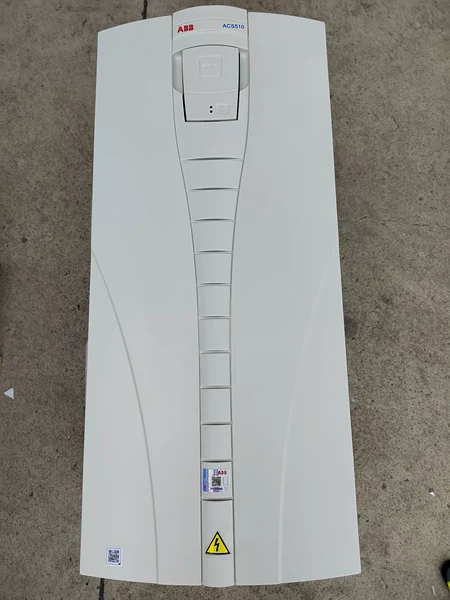

Technical Specifications
Parameter Specification
Output Current 88A
Rated Power 45kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure Class IP21 (open chassis)
Control Methods Sensorless Vector Control (SLVC) & V/f control
Overload Capacity 150% for 60 seconds
Communication Modbus RTU (standard), optional PROFIBUS/BACnet
Key Features
✔ Advanced Energy Optimization - Auto-tuning for maximum efficiency in variable torque applications
✔ Robust Motor Protection - Comprehensive safeguards including thermal, overcurrent, and phase loss protection
✔ Intuitive Control Interface - Multilingual LCD keypad with quick-start wizard
✔ Built-in PID Controller - For precise process regulation (pressure, flow, temperature)
✔ Compact Footprint - Space-efficient design for cabinet installation
✔ Fieldbus Connectivity - Expandable communication options for system integration

Model Identification
ACS510: Series designation (ABB's general-purpose drive family)

01: IP21 protection level

088A: 88A output current rating

4: 400V voltage class (380-480V AC)

Key Specifications
Parameter Specification
Output Current 38A
Rated Power 18.5kW (400V, 4-pole motor)
Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz
Enclosure IP21 (open chassis)
Control Methods Sensorless Vector Control (SLVC) & V/f control
Overload 150% for 60 seconds
Communication Built-in Modbus RTU (RS485)
Advanced Features
✔ Energy Optimization - Automatic adaptation to load changes for maximum efficiency
✔ Intelligent Motor Protection - Thermal, short-circuit, and phase-loss protection
✔ User-Friendly Interface - LCD keypad with multilingual display (8 languages)
✔ Integrated PID Controller - For precise process control (pressure, flow, temperature)
✔ Compact Design - Space-saving for easy cabinet installation (DIN rail or panel mount)
✔ Fieldbus Options - Supports PROFIBUS DP and BACnet via optional modules

Model Number Breakdown
ACS510: Series designation (general-purpose drives)

01: IP21 enclosure rating

038A: 38A output current

4: 400V voltage class (380-480V)

Key Specifications
Output Current: 60A

Rated Power: 30kW (for 400V 4-pole motor)

Supply Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Enclosure Type: IP21 (open chassis)

Control Methods:

Sensorless Vector Control (SLVC)

V/f control

Overload Capacity: 150% for 60 seconds

Main Features
✔ Energy Optimization - Automatic energy-saving function specifically for pump and fan applications
✔ Advanced Motor Protection - Includes thermal overload, short circuit, and phase loss protection
✔ User-Friendly Interface - LCD keypad with multilingual support
✔ Built-in PID Controller - For closed-loop process control
✔ Fieldbus Communication - Standard Modbus RTU (RS485), with optional PROFIBUS DP and BACnet modules
✔ Compact Design - Space-saving for easy cabinet installation
