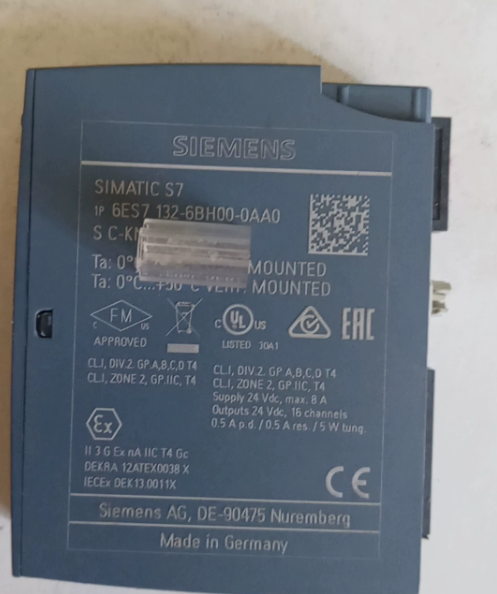

This SIEMENS digital output module is suitable for signal conversion in automatic control system, supporting 8 channels of 24 V DC output, and the maximum current of each channel is 0.5 A. It has diagnostic function, which can detect short circuit to positive pole, grounding, disconnection and other problems to ensure stable operation of the system.
WhatsApp
| Parameter | Details |
|---|---|
| Model Number | 6ES7132-6BH00-0AA0 |
| Product Family | SIMATIC ET 200SP |
| Module Type | Digital Output Module |
| Outputs | 16 digital outputs |
| Rated Voltage | 24 VDC |
| Output Current | 0.5 A per channel |
| Total Current | Max. 8 A per module |
| Output Type | PNP (sourcing output) |
| Diagnostics | Module diagnostics supported |
| Wiring Length | 1000 m shielded / 600 m unshielded |
| Mounting System | ET 200SP Base Unit A0 |
| Protection/Indicators | PWR LED and DIAG LED |
| Application | Solenoid valves, relays, indicators, contactors |
Compact ET 200SP distributed I/O design
16-channel high-density output configuration
Supports module diagnostics and substitute values
Suitable for industrial automation cabinets with limited space
Fast integration into TIA Portal engineering environment
Designed for 24VDC industrial field devices
PLC-based machine automation
Conveyor systems
Packaging equipment
Process automation
Motor starter and relay control
Industrial signaling systems
The module uses PNP transistor outputs.
Maximum switching frequency:
Resistive load: 100 Hz
Inductive load: 2 Hz
Often used with interposing relays for higher-current inductive loads. Community PLC discussions also recommend checking flyback diode protection for contactor coils.
