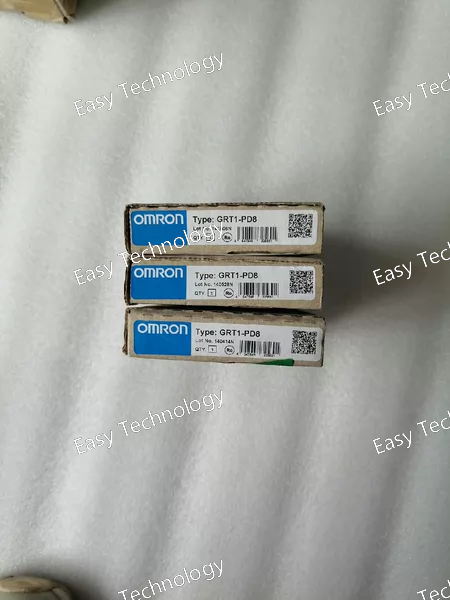

The OMRON GRT1-PD8 is a Power Feed Unit for the GRT1 Series Smart Slice I/O System. It is used in conjunction with a GRT1 Series communication unit (such as the GRT1-CRT for DeviceNet). Its primary purpose is to supply external 24 VDC power to the I/O circuits (field power) of subsequent I/O slices (e.g., digital outputs, analog outputs) in the same station, while also passing the internal communications power to the rest of the slices.

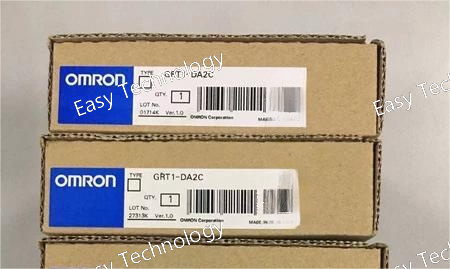

The OMRON GRT1-DA2C is an Analog Output I/O Slice for the GRT1 Series Smart Slice I/O System. It is used in conjunction with a GRT1 Series communication unit (such as the GRT1-CRT for DeviceNet). This module provides 2 analog output channels that are individually configurable as either current (4-20 mA) or voltage (0-10 V).

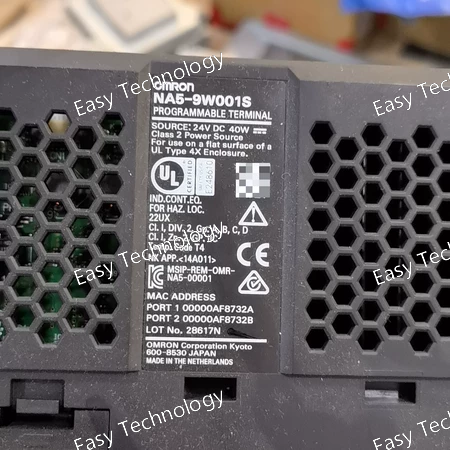

The OMRON NA5-9W001S is a Programmable Terminal (HMI) from the NA Series, specifically the NA5-9" Wide model group. It features a 9.0-inch wide (WVGA) TFT color LCD with a resolution of 800 x 480 pixels. This HMI is designed as a high-end visualization and operation interface for use with OMRON's machine automation controllers, particularly the NX1P, NJ, and NY-series.

The Omron F3SJ-B0465N25 is a Type 4 Safety Light Curtain from the F3SJ-B Series (Standard Function/Basic Type). This model is designed for hand/palm detection (minimum detectable object φ25 mm) with a 465 mm protective height and NPN output configuration .

The Omron F3SJ-B0385P25 is a Type 4 Safety Light Curtain from the F3SJ-B Series (Standard Function/Basic Type) . This model is designed for hand/palm detection (minimum detectable object φ25 mm) with a 385 mm protective height and PNP output configuration .

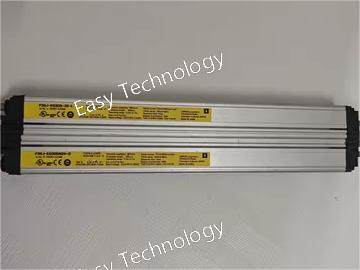

The Omron F3SJ-E0785N25 is a Type 4 Safety Light Curtain from the F3SJ-E Series (Basic/Simple Type). This model is designed for hand/palm detection (minimum detectable object φ25 mm) with a 785 mm protective height and NPN output configuration .

Technical Specifications Parameter Specification Manufacturer Omron Automation and Safety Product Series F3SJ-E Series (Basic / Simple Type) Product Type Safety Light Curtain (Type 4 ESPE) Application Hand/Palm Detection Safety Category Type 4 (IEC 61496-1), SIL3 (IEC 61508), PLe (EN ISO 13849-1) Protective Height 785 mm (30.9 in.) Minimum Detectable Object φ25 mm (0.98 in.) Beam Pitch (Optical Axis Spacing) 20 mm Number of Beams (Optical Axis Count) 38 Detection Range (Scanning Distance) 0.2 to 7 meters (0.66 to 23.0 ft.) Output Type NPN (2 x OSSD safety outputs) Output Current Rating 200 mA max. per output Response Time (ON to OFF) 15 ms max. Response Time (OFF to ON) 70 ms max. Supply Voltage 24 VDC ±20% Connection Method M12 Connector (8-pin) Housing Material Aluminum Optical Cover Material PMMA resin (acrylic) Degree of Protection (Enclosure Rating) IP65/IP67 (IEC 60529) Light Source Infrared LED (870 nm) Ambient Operating Temperature -10°C to 55°C Ambient Operating Humidity 35% to 85% (non-condensing) Ambient Light Resistance Incandescent: 3,000 lx max., Sunlight: 10,000 lx max. Certifications CE, UL 508, UL 1998, CSA C22.2

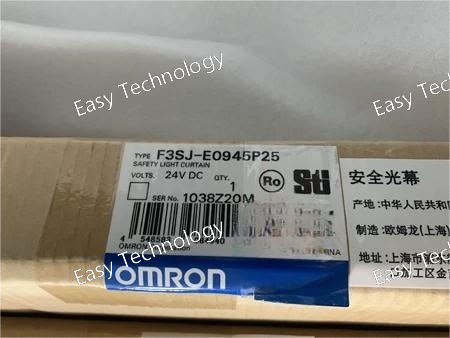

The Omron F3SJ-E0945P25 is a Type 4 Safety Light Curtain from the F3SJ-E Series (Basic Type). This model is designed for hand/palm detection (minimum detectable object φ25 mm) with a 945 mm protective height and PNP output configuration.

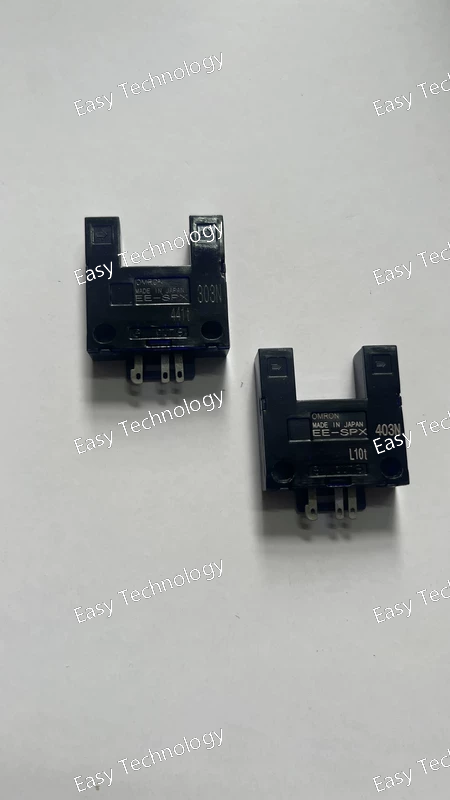

The Omron EE-SPX303N is a Broad Slot-type Photomicrosensor (Photointerrupter) featuring a wide 13 mm slot width . It employs a through-beam sensing method with an infrared LED light source and offers superior resistance to light interference and noise due to its built-in light modulation circuit .

The Omron F3SJ-E0865N25 is a Type 4 Safety Light Curtain from the F3SJ-E Series (Basic Type). This model features a 25 mm beam resolution for hand/palm detection, an 865 mm protective height, and an NPN output configuration .
