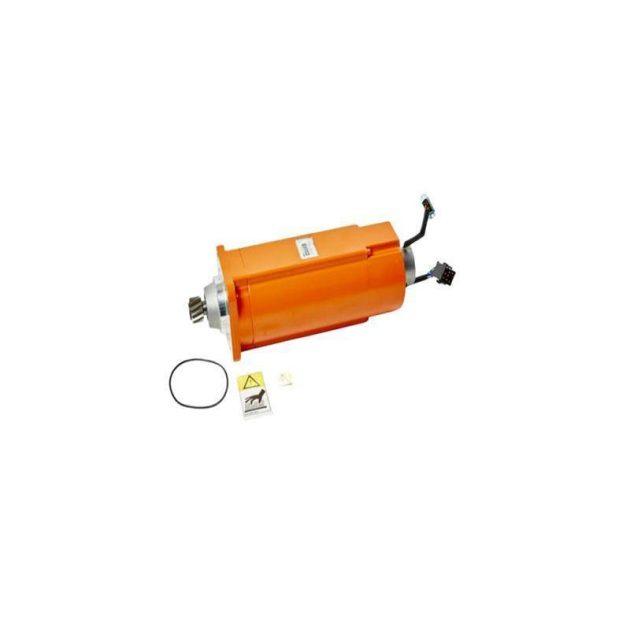

Key Features
High Power Density: 1.5kW output in a compact 90mm frame size (EN23W standard)

Precision Performance: ±1 arc-minute positioning accuracy

Optimized Thermal Design: Advanced cooling for continuous duty operation

Robust Construction: IP65 protection rating (dust-tight and protected against water jets)

Smooth Operation: Low cogging design minimizes vibration

Integrated Feedback: High-resolution encoder (20-bit absolute) for precise positioning

Technical Specifications
Rated Power: 1.5kW

Rated Torque: 4.77Nm

Peak Torque: 14.3Nm

Speed Range: 0-3000 RPM

Voltage Rating: 200V AC (3-phase)

Frame Size: 90mm (EN23W)

Protection Class: IP65

Insulation Class: F

Bearing Type: Double shielded ball bearings

Connector: Waterproof industrial connector

Performance Characteristics
Torque Constant: 1.2Nm/A

Rotor Inertia: 1.8×10⁻³kg·m²

Electrical Time Constant: 2.5ms

Mechanical Time Constant: 5ms

Typical Applications
Industrial robotics

CNC machinery

Packaging equipment

Semiconductor manufacturing

Printing and converting systems

Automated assembly lines

Compatibility
Designed for seamless integration with ABB's:

ACSM1 servo drives

MicroFlex e150/e180 drives

Ability Motion Studio programming environment

Can be adapted to work with third-party servo drives

Certifications and Compliance
CE marked

UL recognized

RoHS compliant

REACH compliant

Environmental Specifications
Operating Temperature: 0°C to +40°C (ambient)

Storage Temperature: -20°C to +65°C

Altitude: Up to 1000m above sea level

Humidity: 20-80% RH (non-condensing)
